Air Deflector, Roof

Heavy Duty Riveter:

SPECIAL TOOL(S) RECOMMENDED

REMOVAL
1. Position the sliding roof panel in the open position.

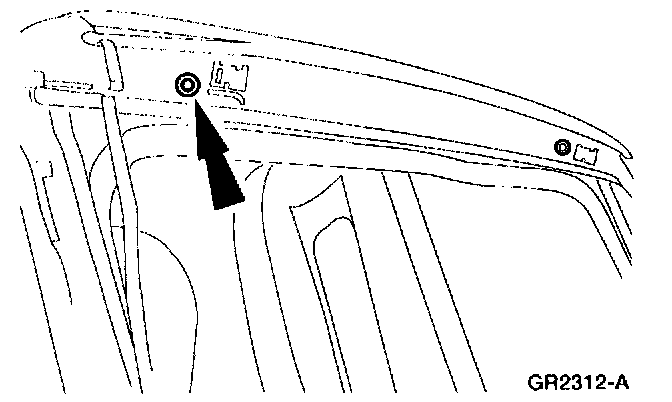

2. Drill out the four air deflector rivets.

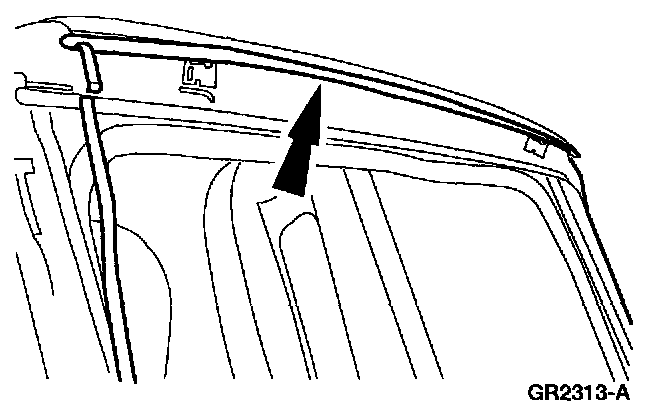

3. Remove the air deflector.

INSTALLATION
1. To install, reverse the removal procedure.
^ Use Heavy Duty Riveter to install the new rivets.
