Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Testing and Inspection >> Pinpoint Tests >> E: Poor Quality Sound From One or More Speakers (Not All)

E: Poor Quality Sound From One or More Speakers (Not All)

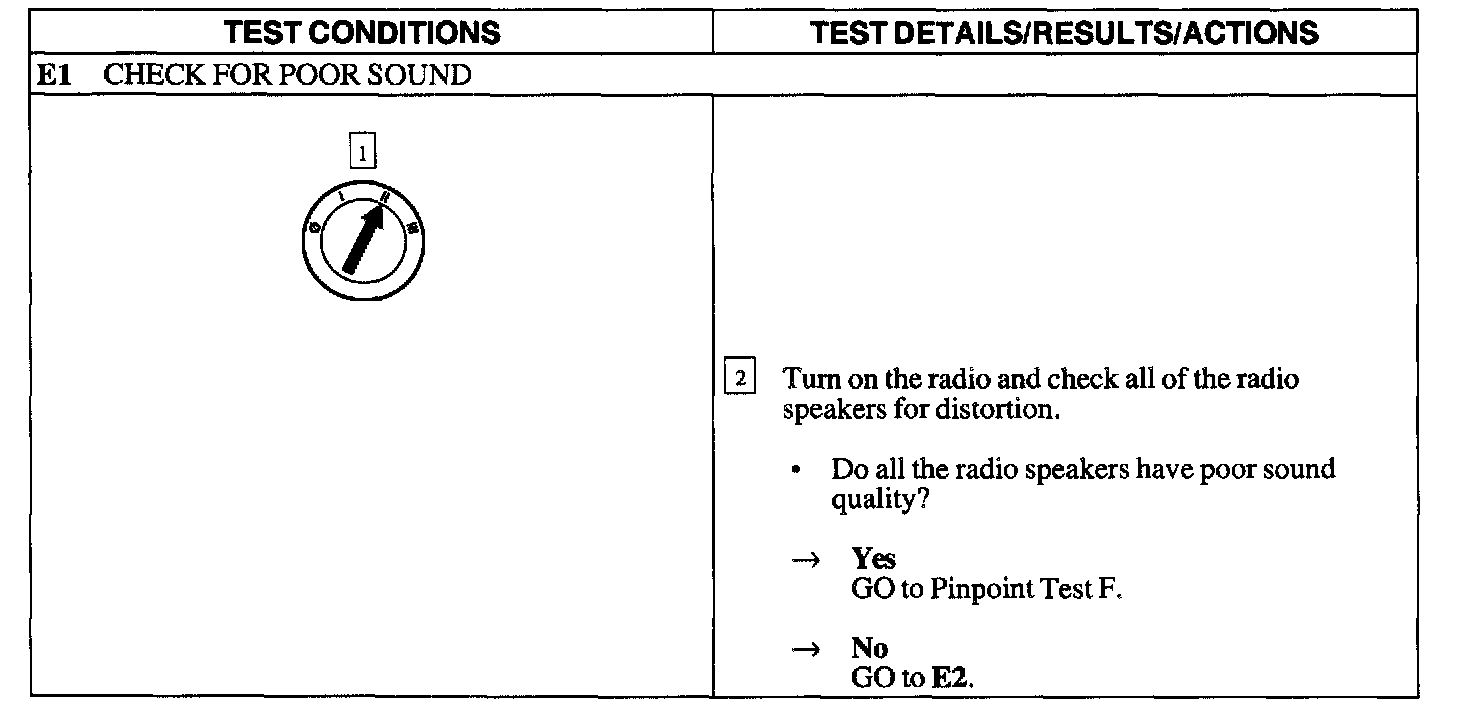

E1:

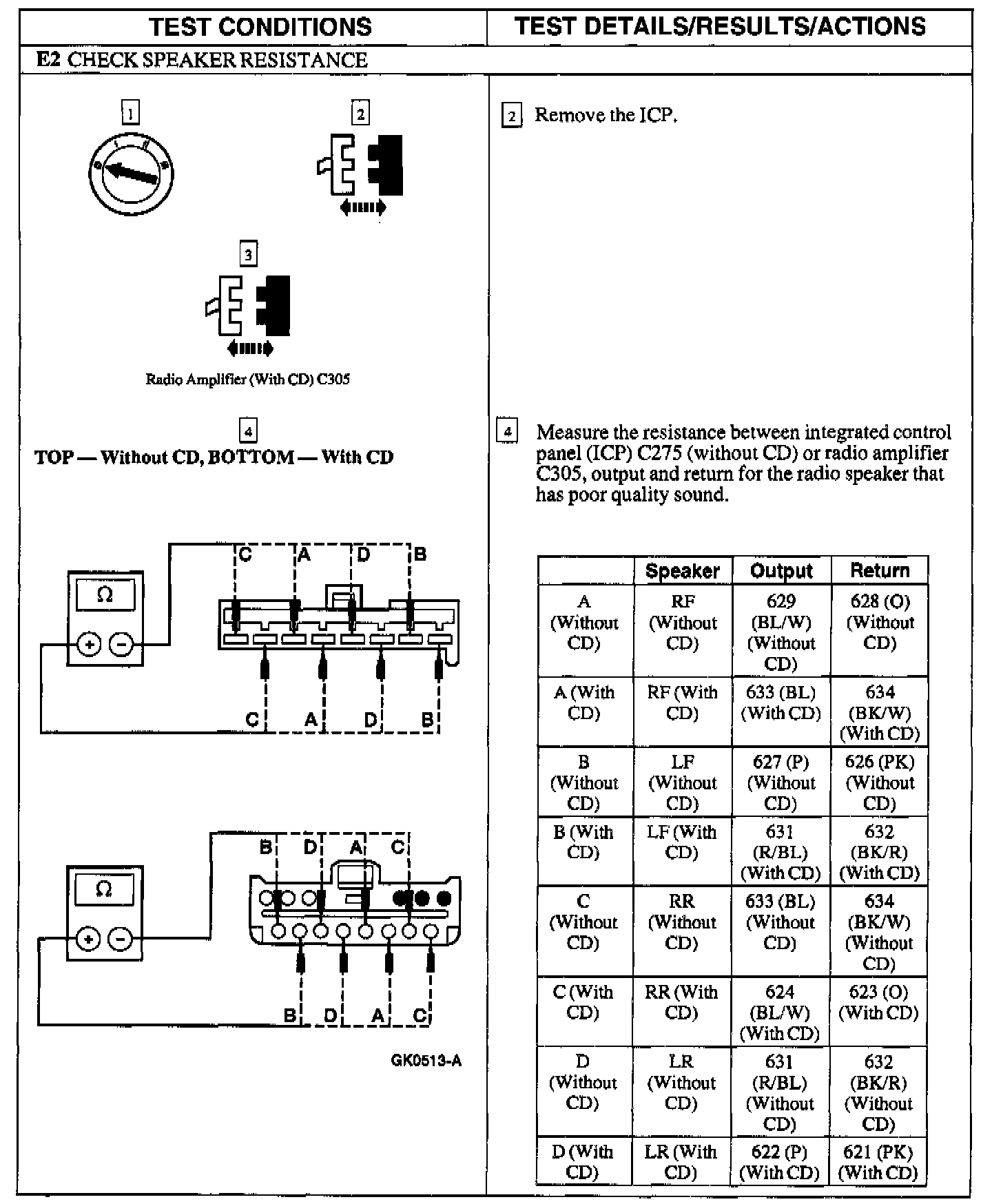

E2 (Part 1 Of 2):

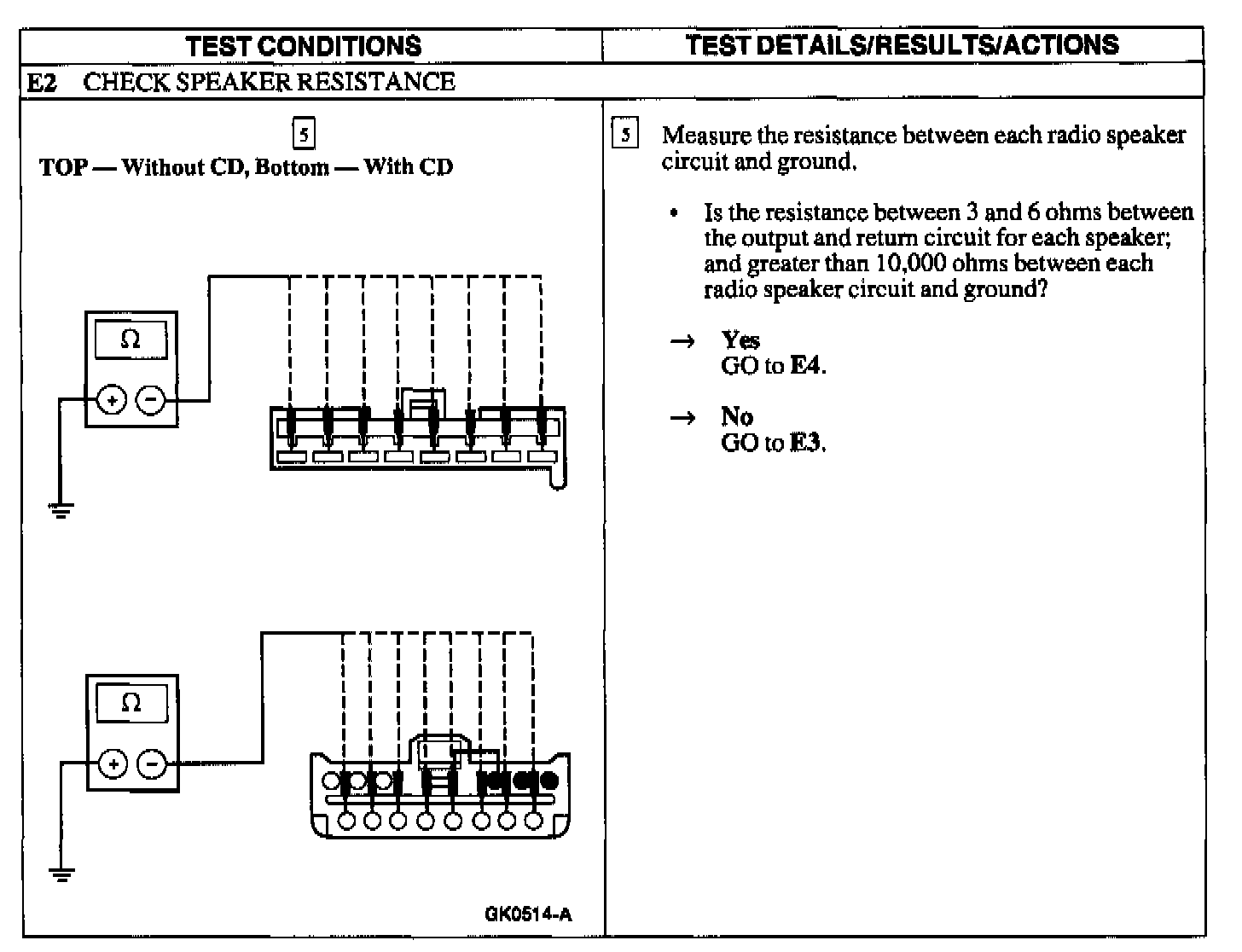

E2 (Part 2 Of 2):

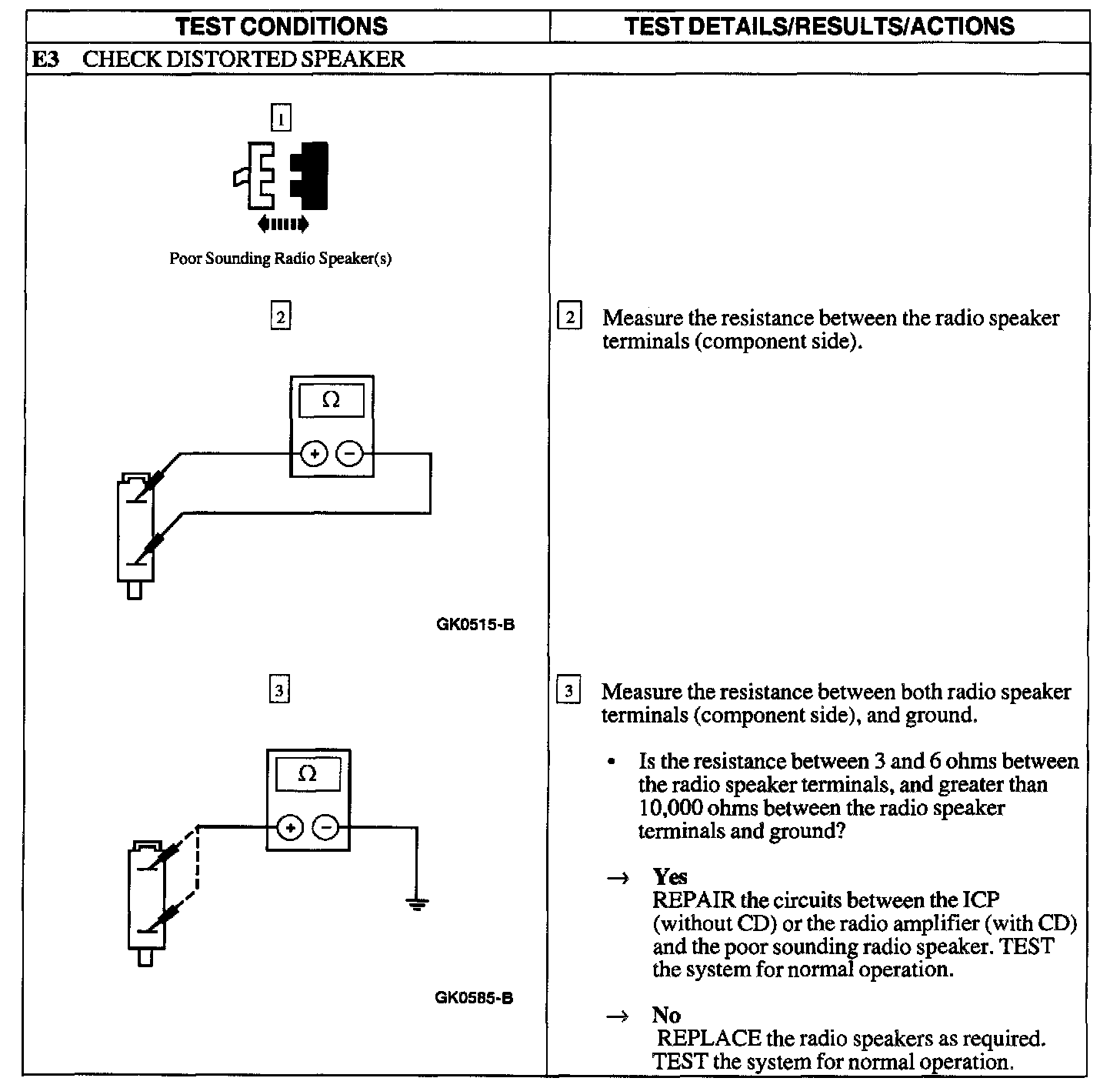

E3:

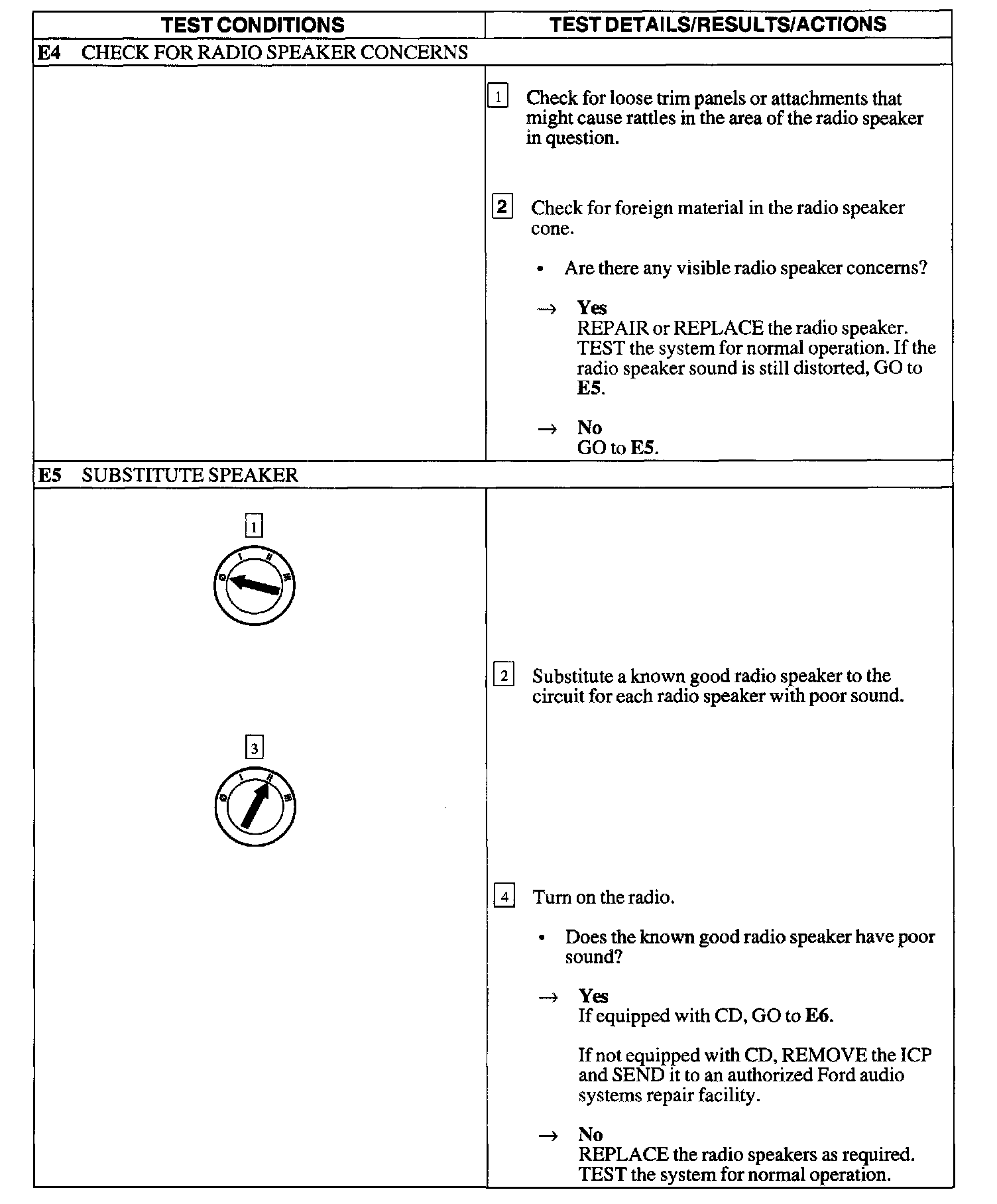

E4 - E5:

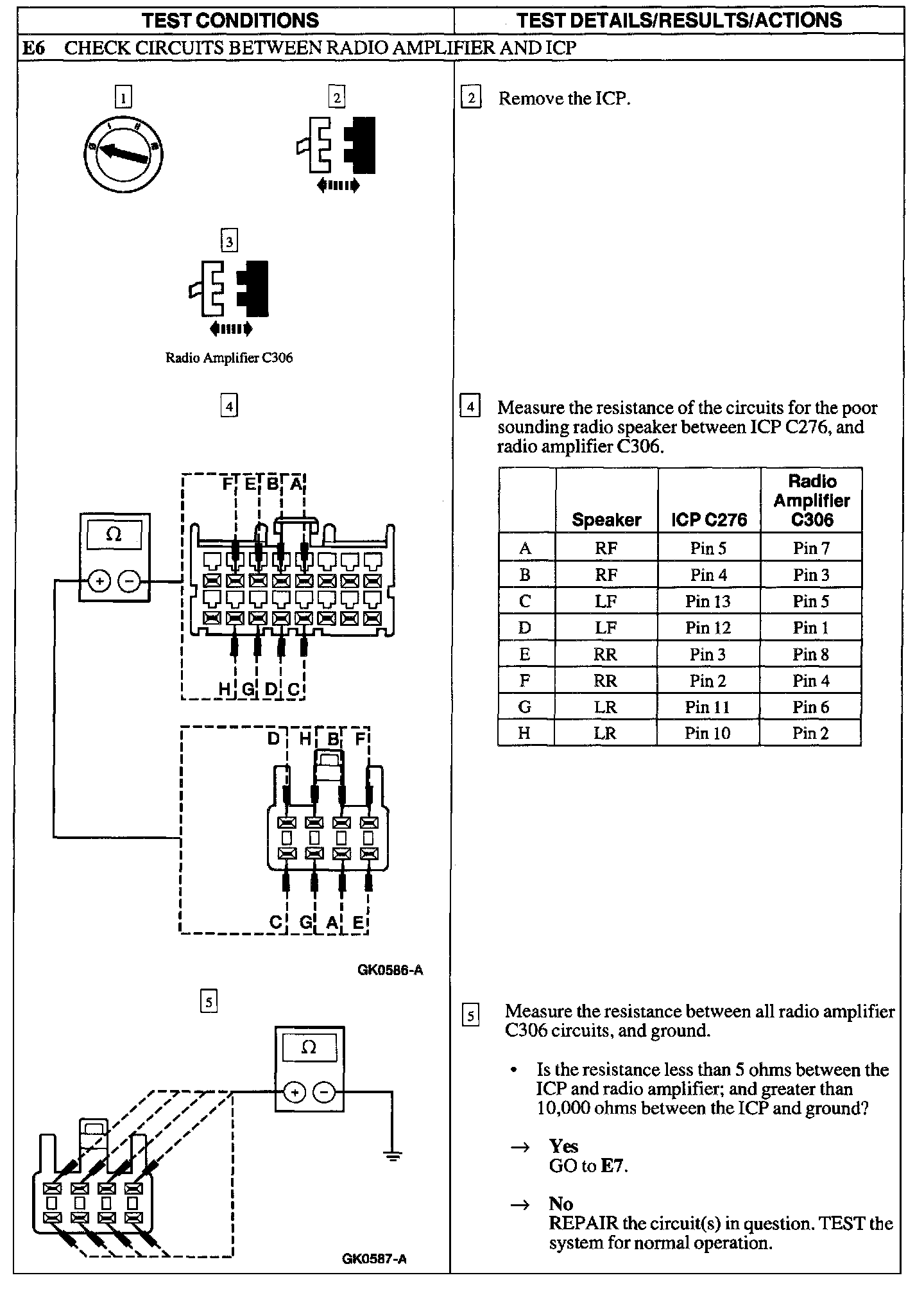

E6:

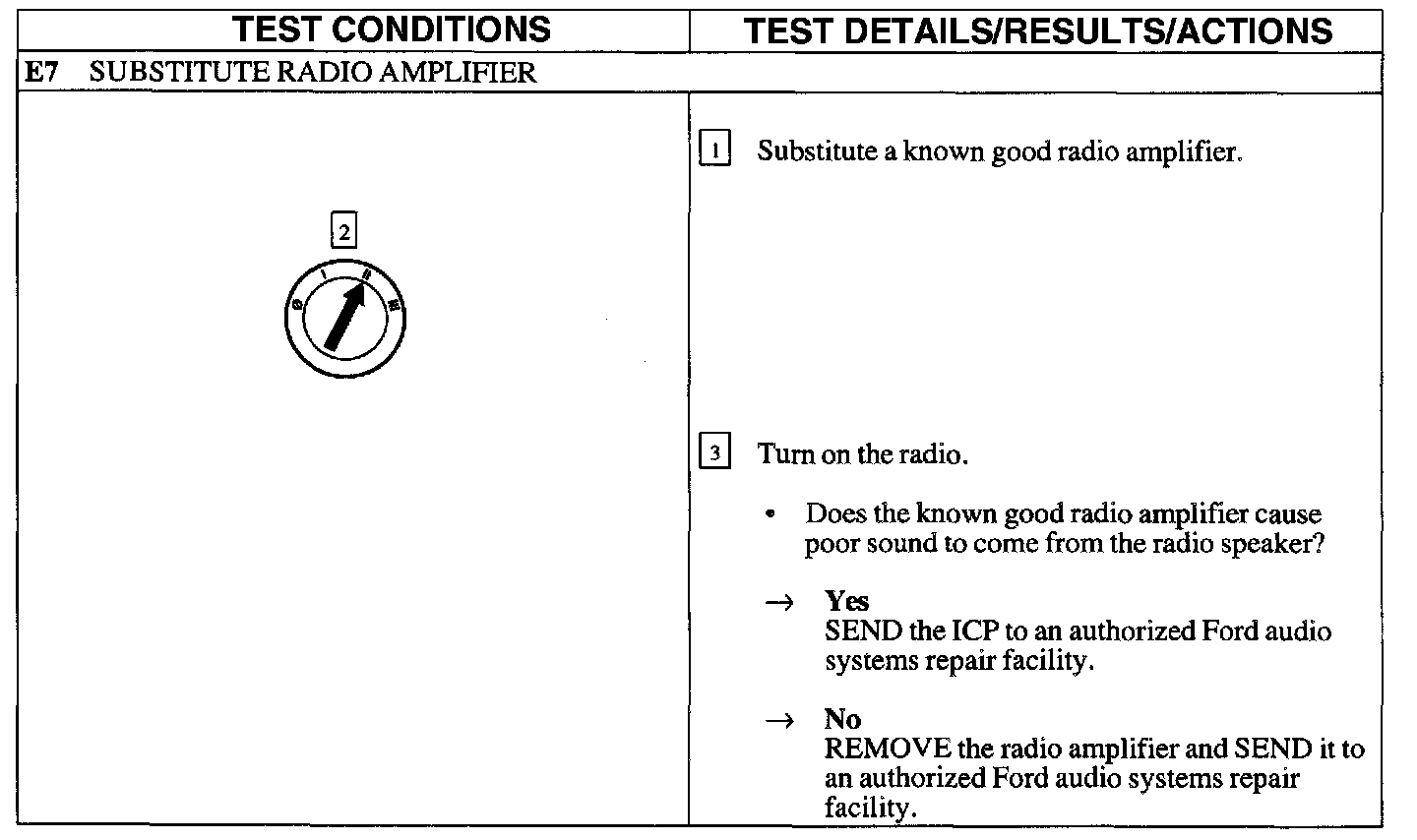

E7:
