Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Test D: Alarm System Does Not Operate Properly

Test D: Alarm System Does Not Operate Properly

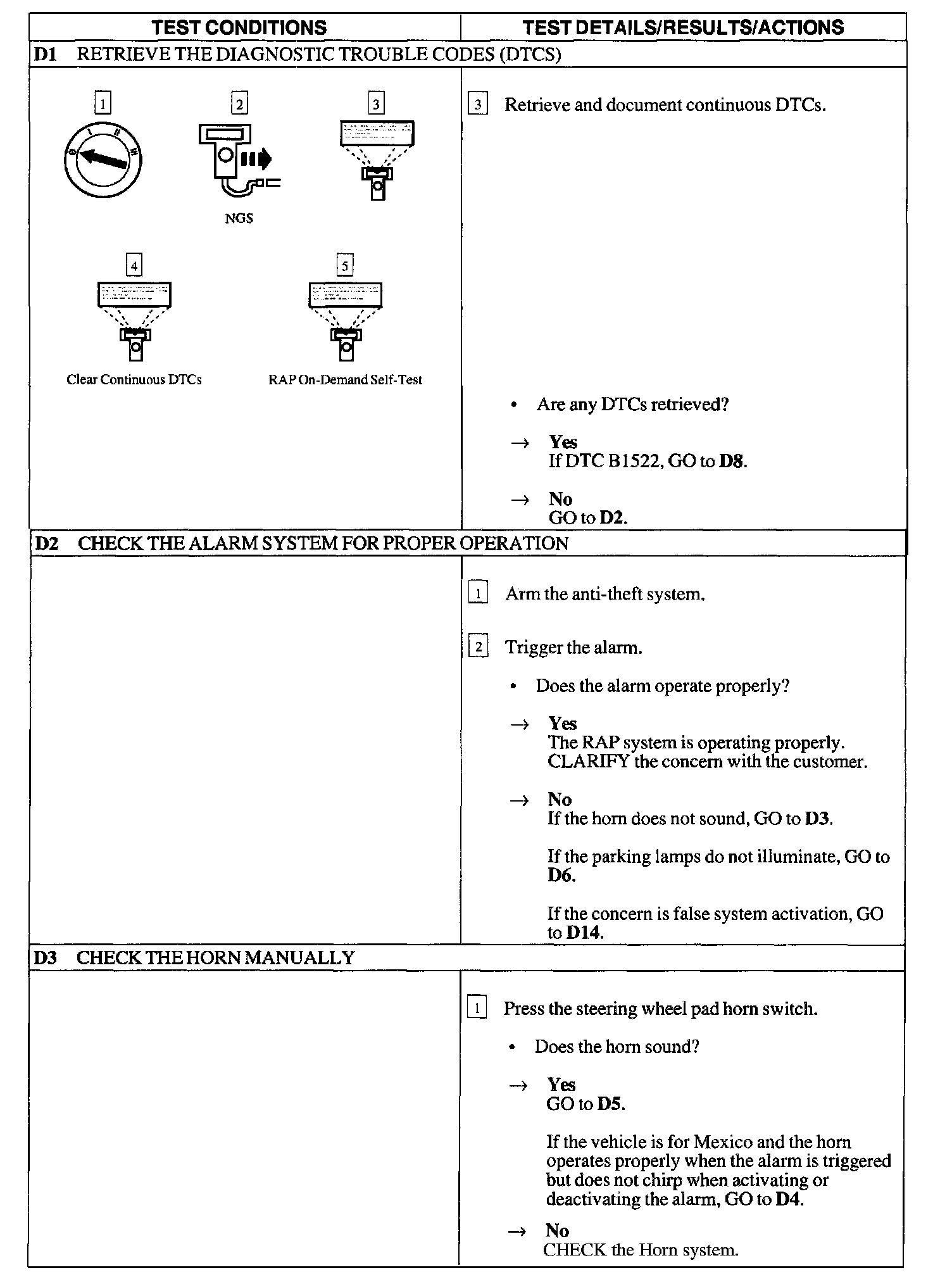

D1 - D3:

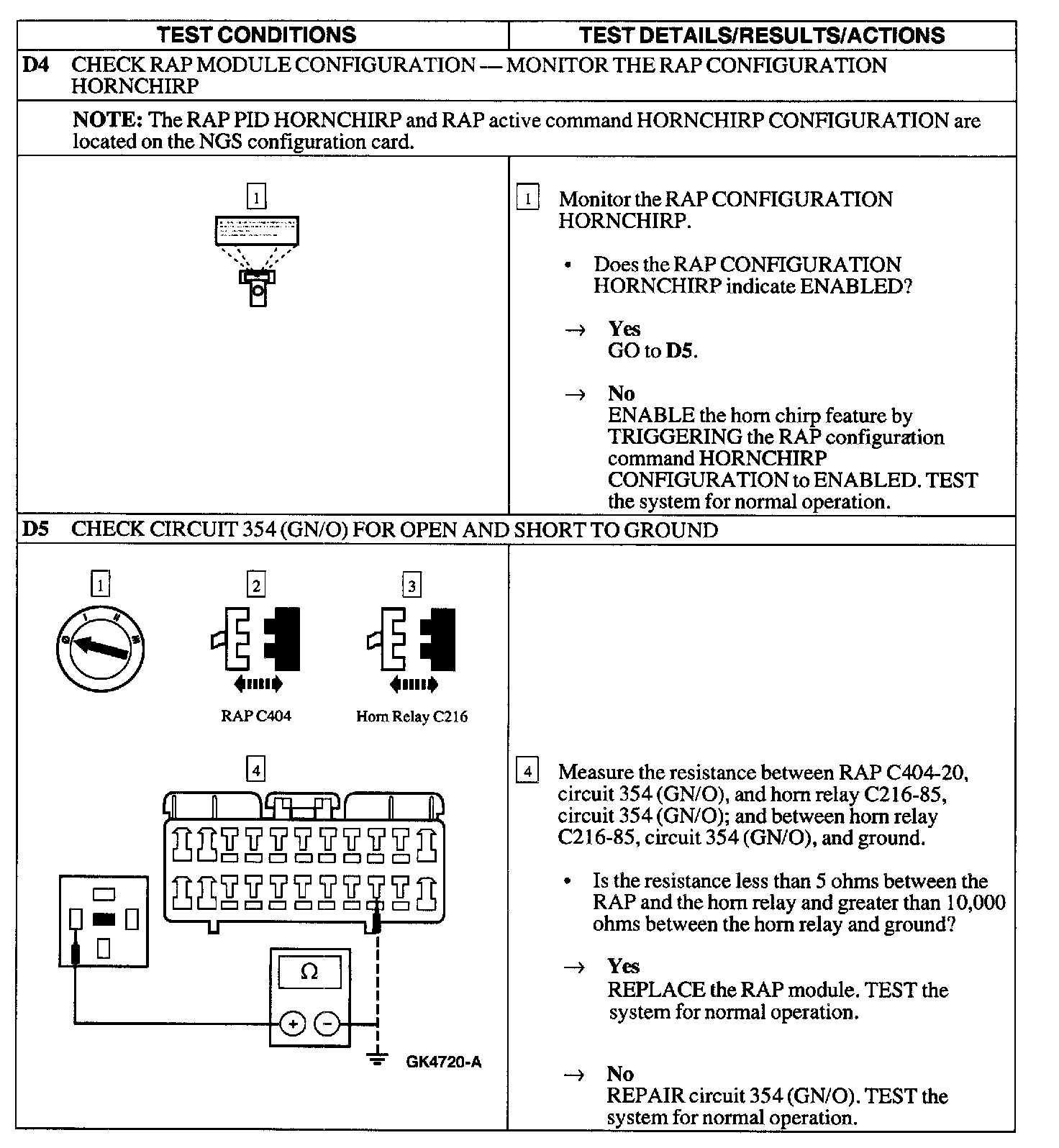

D4 - D5:

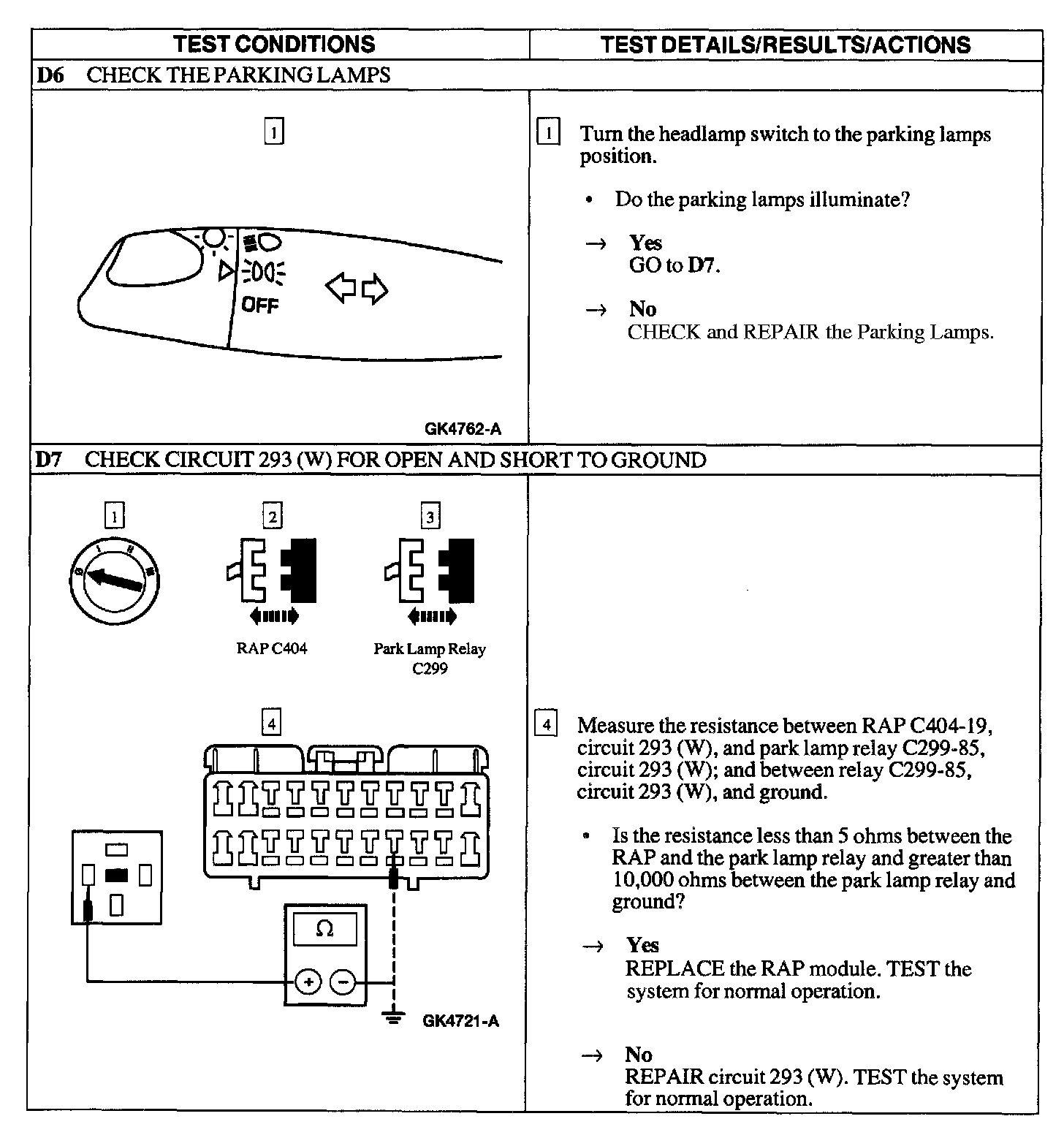

D6 - D7:

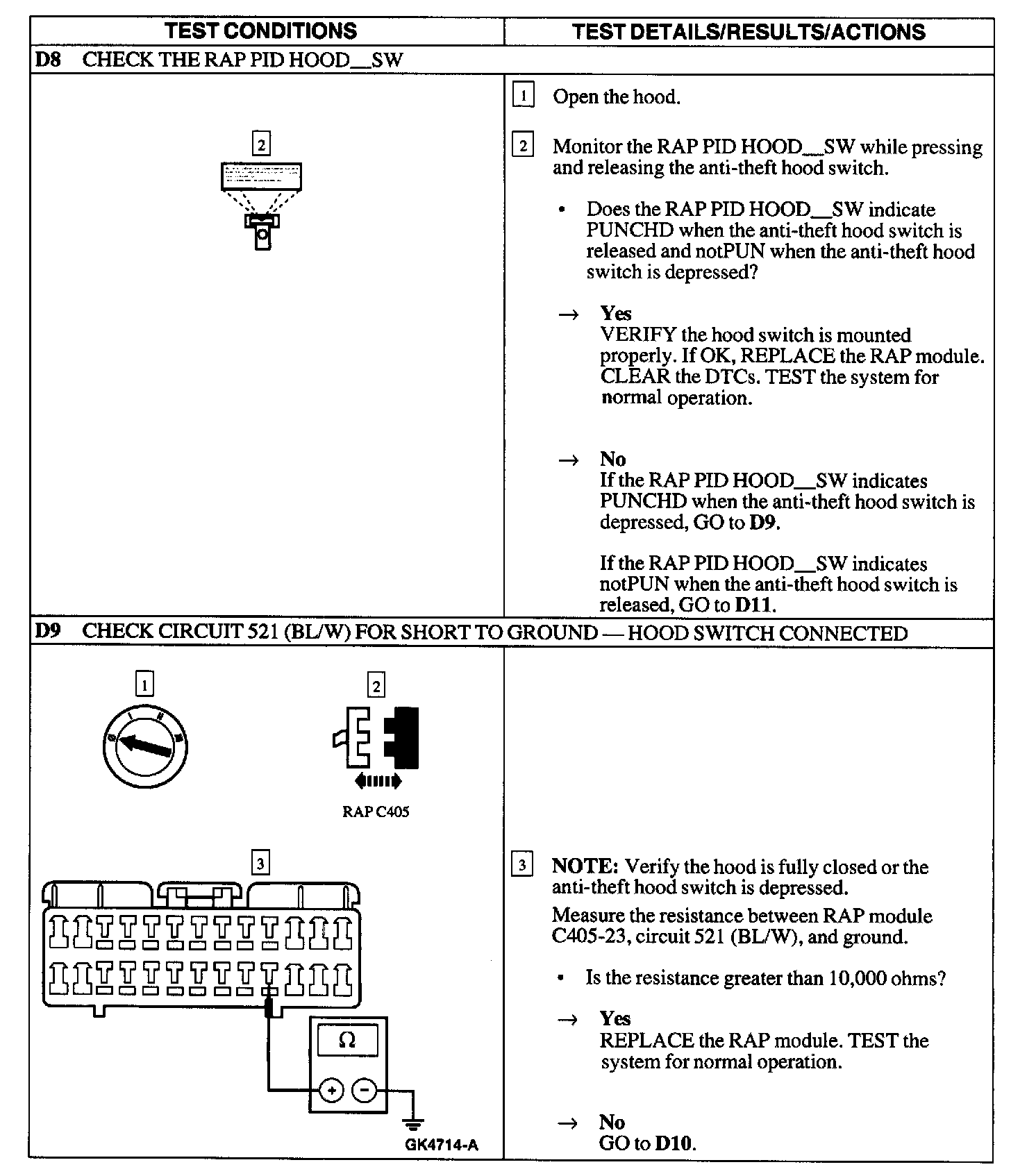

D8 - D9:

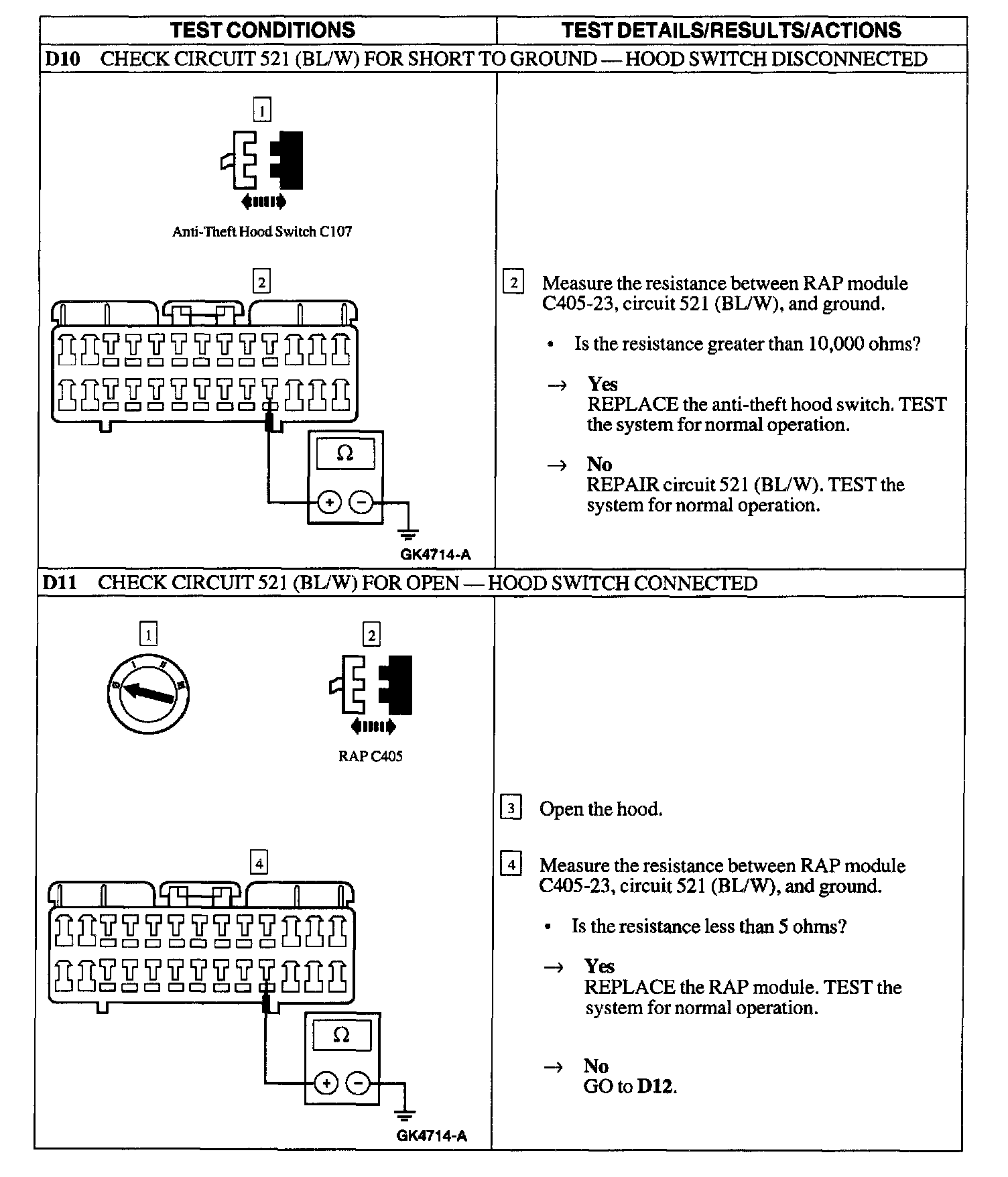

D10 -D11:

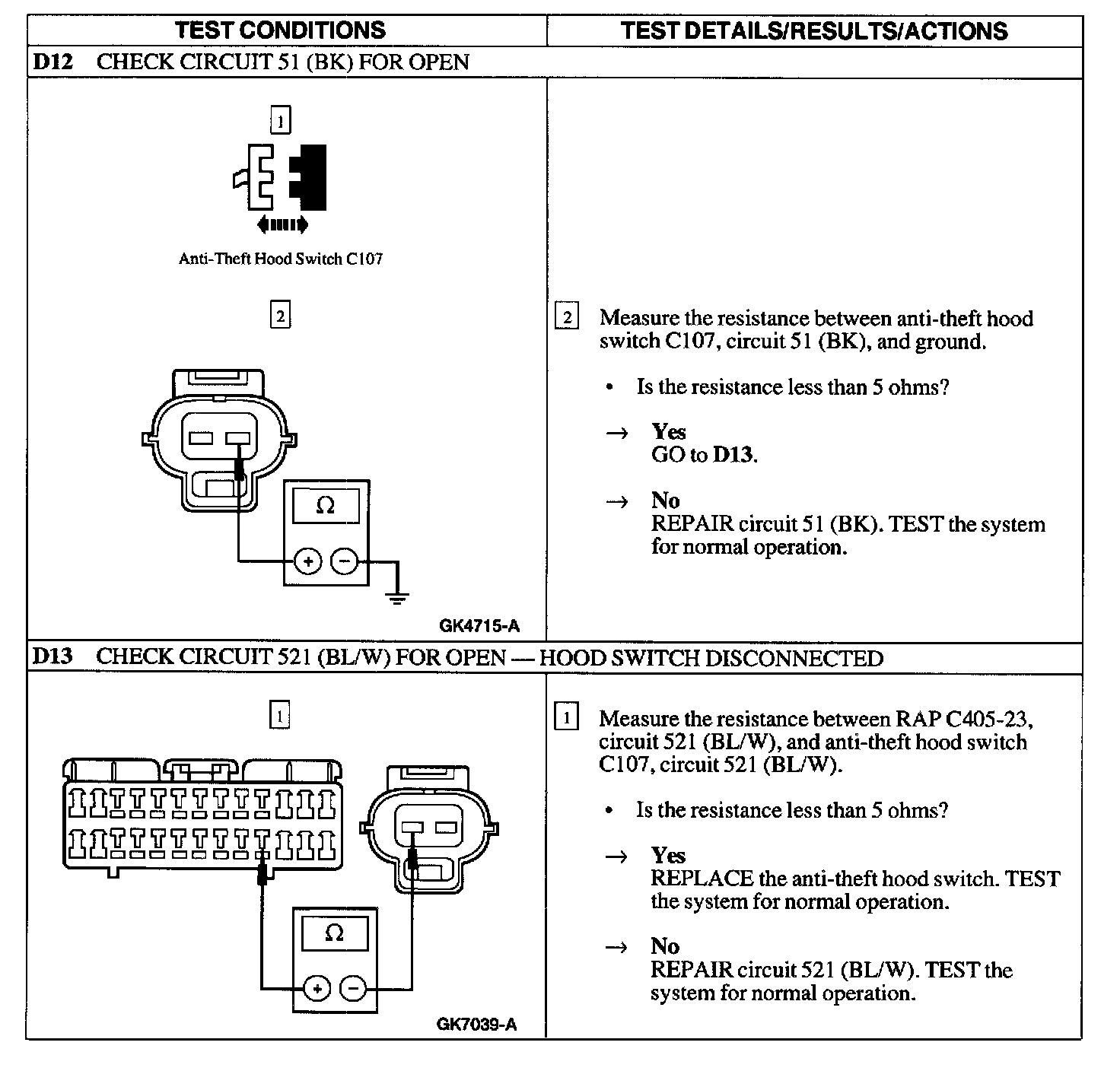

D12 - D13:

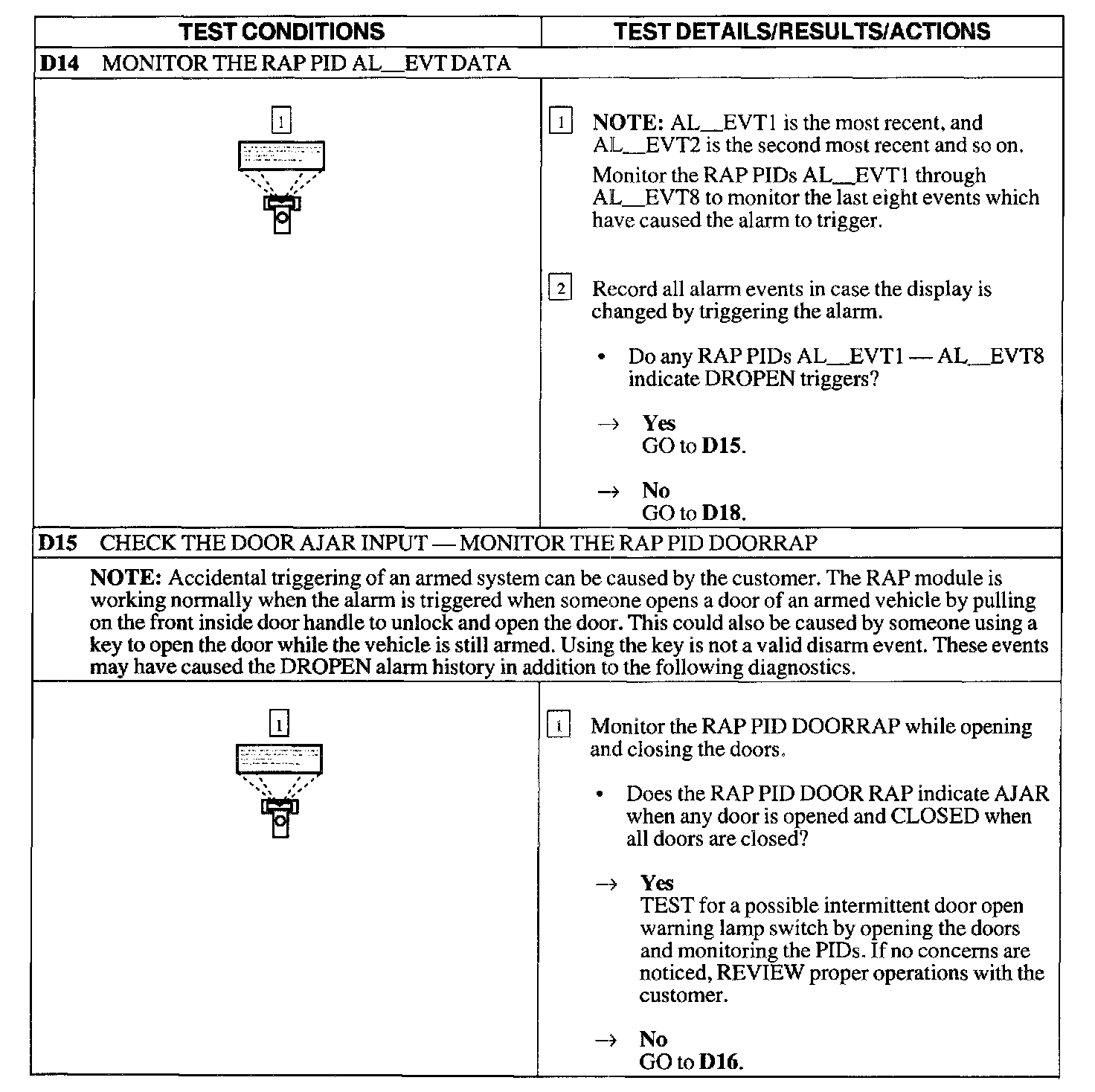

D14 - D15:






D16 - D18:

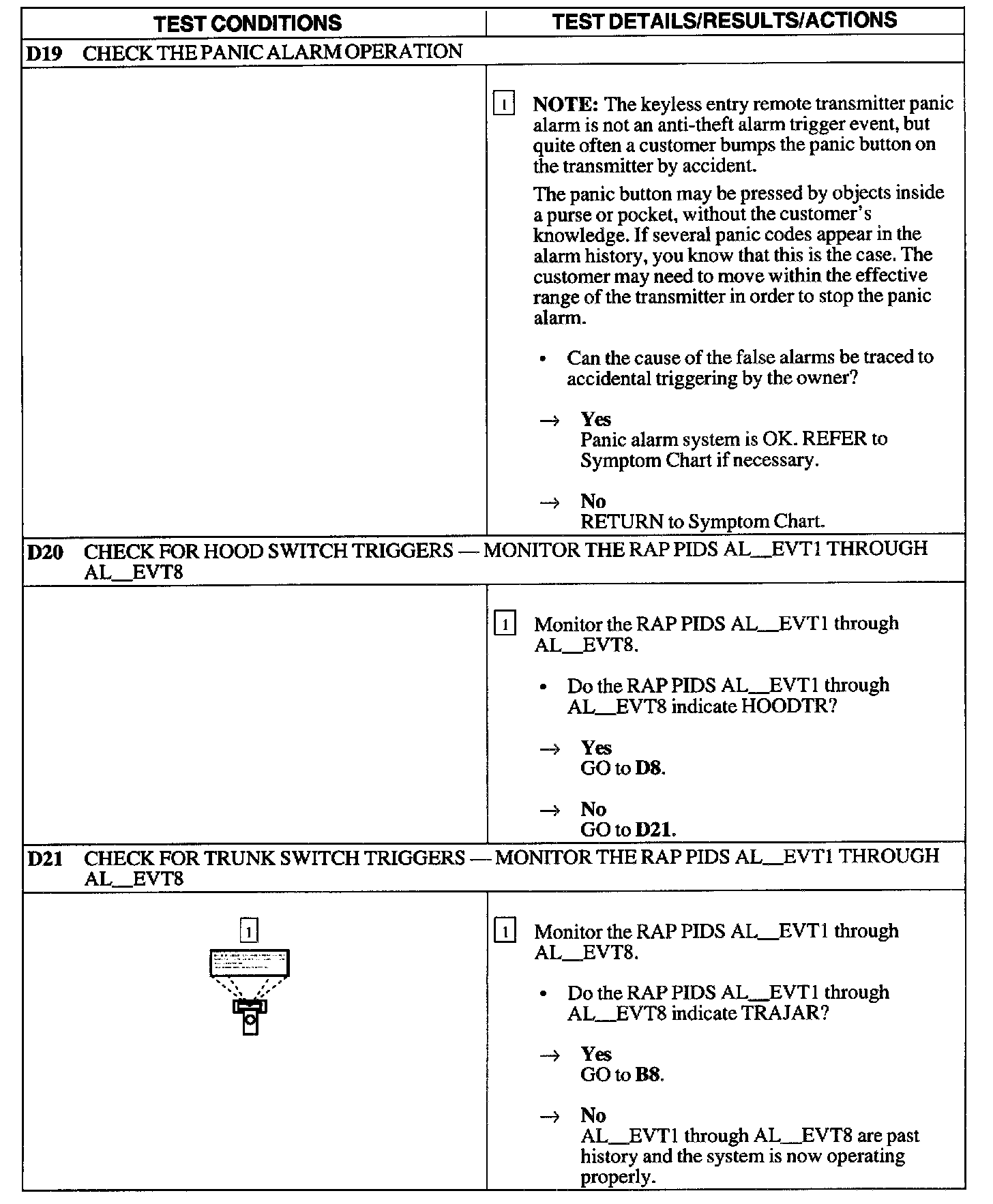

D19 - D21:
