Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Test A: No Communication W/RAP Module

Test A: No Communication W/RAP Module

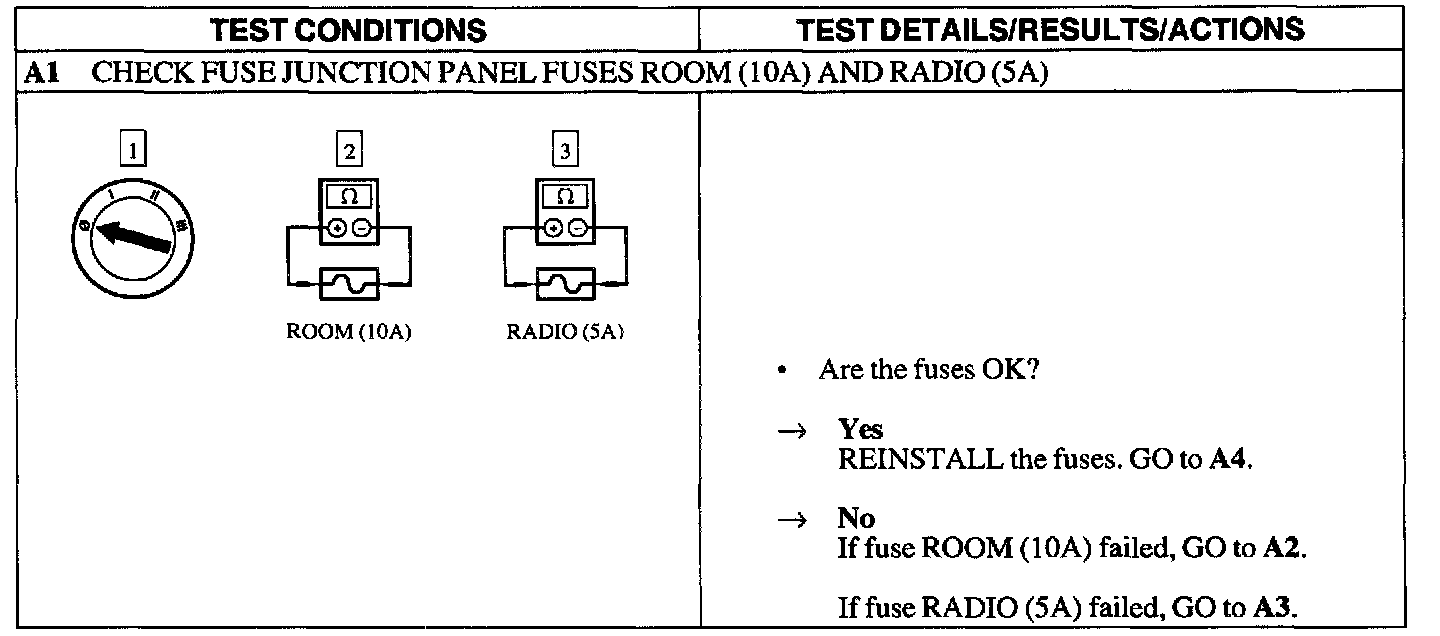

A1:

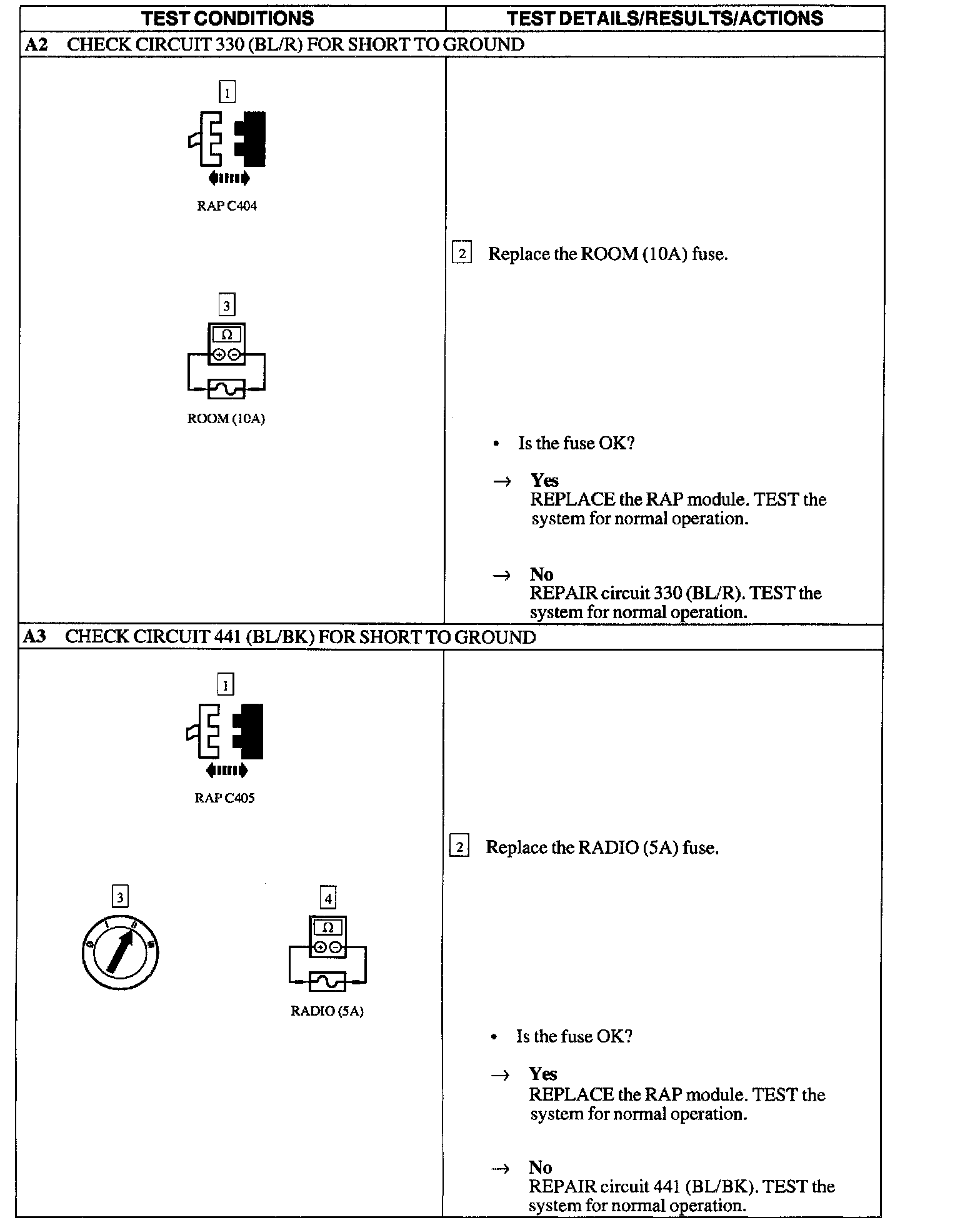

A2 - A3:

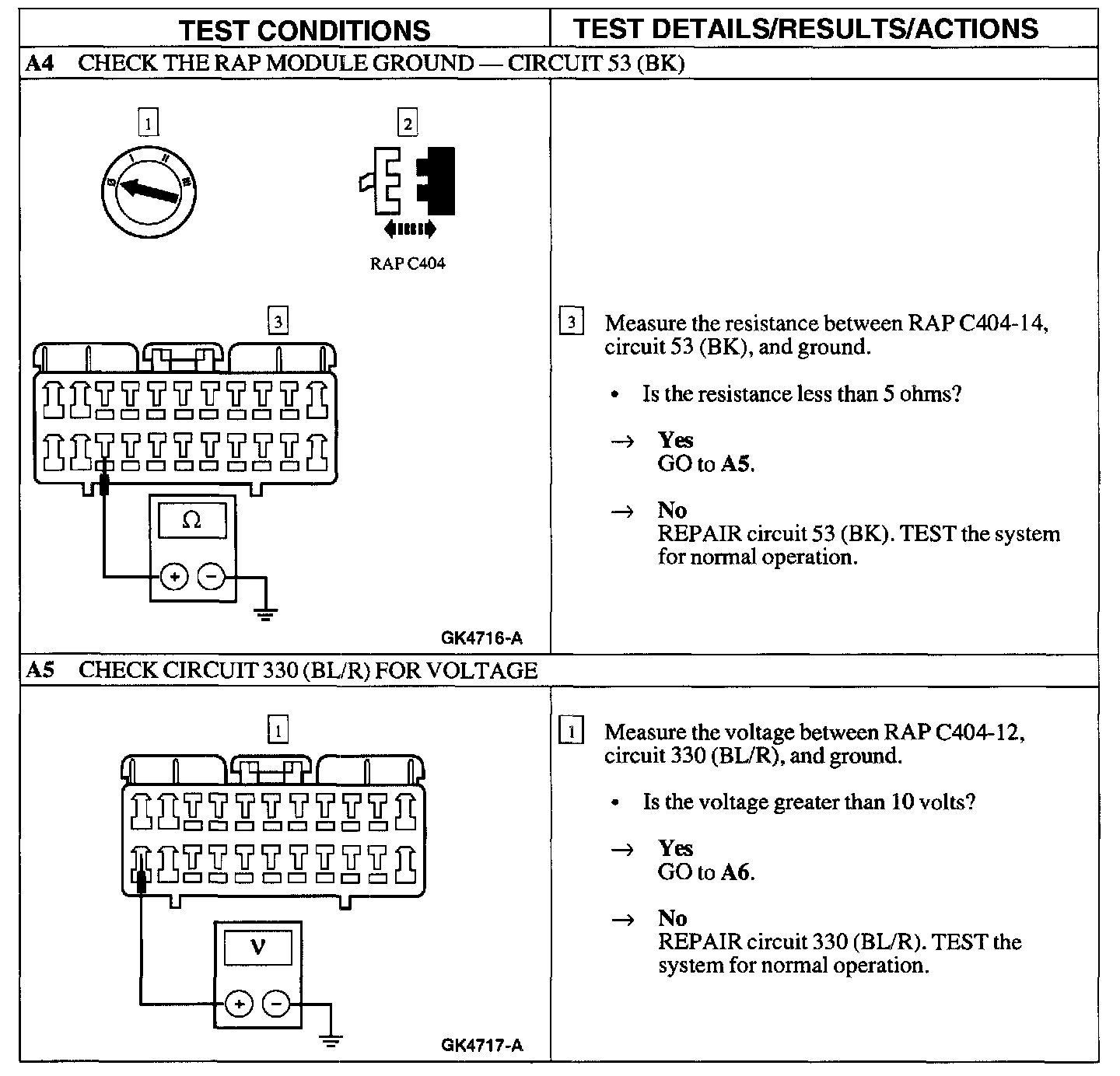

A4 - A5:

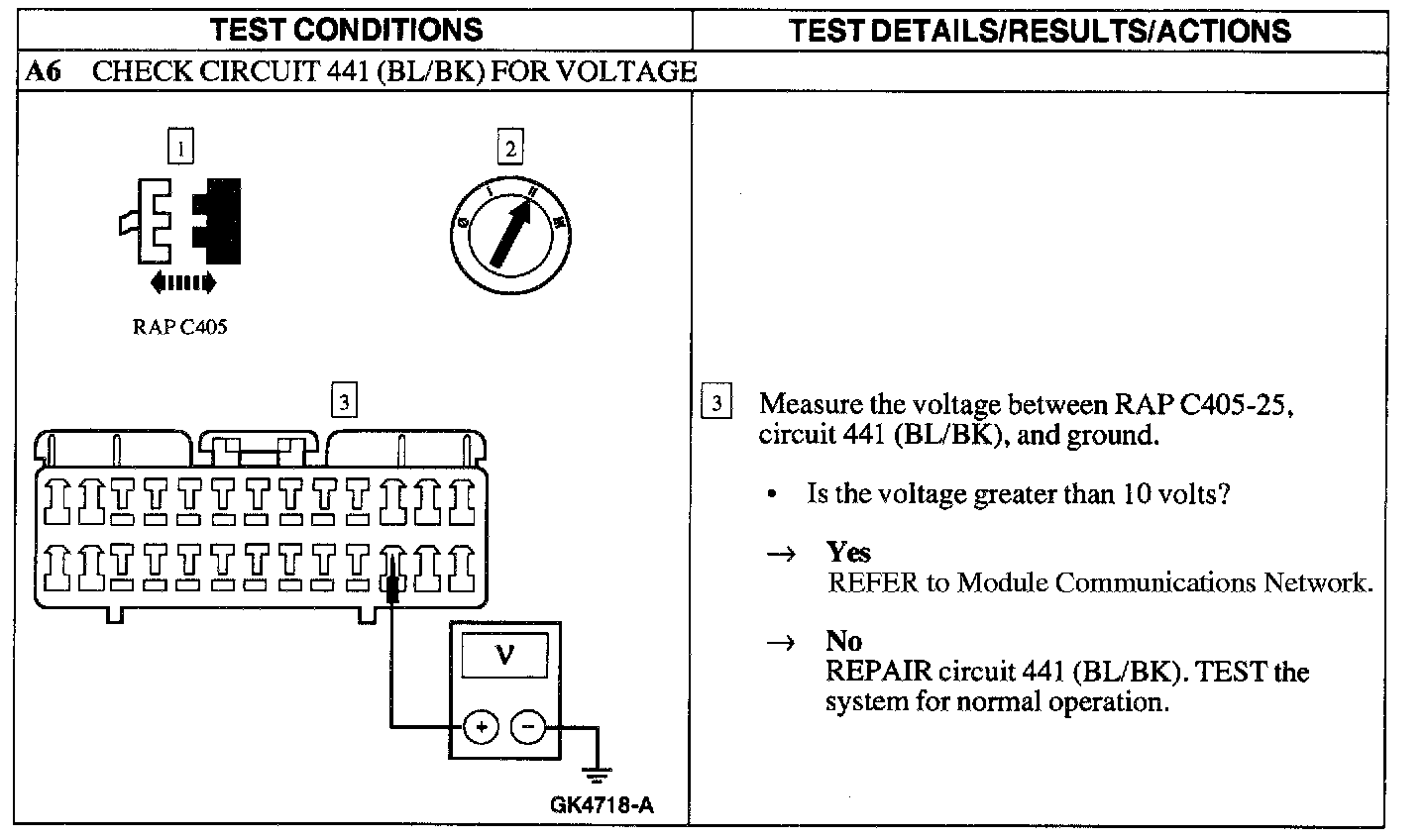

A6:
