Electrical Diagrams

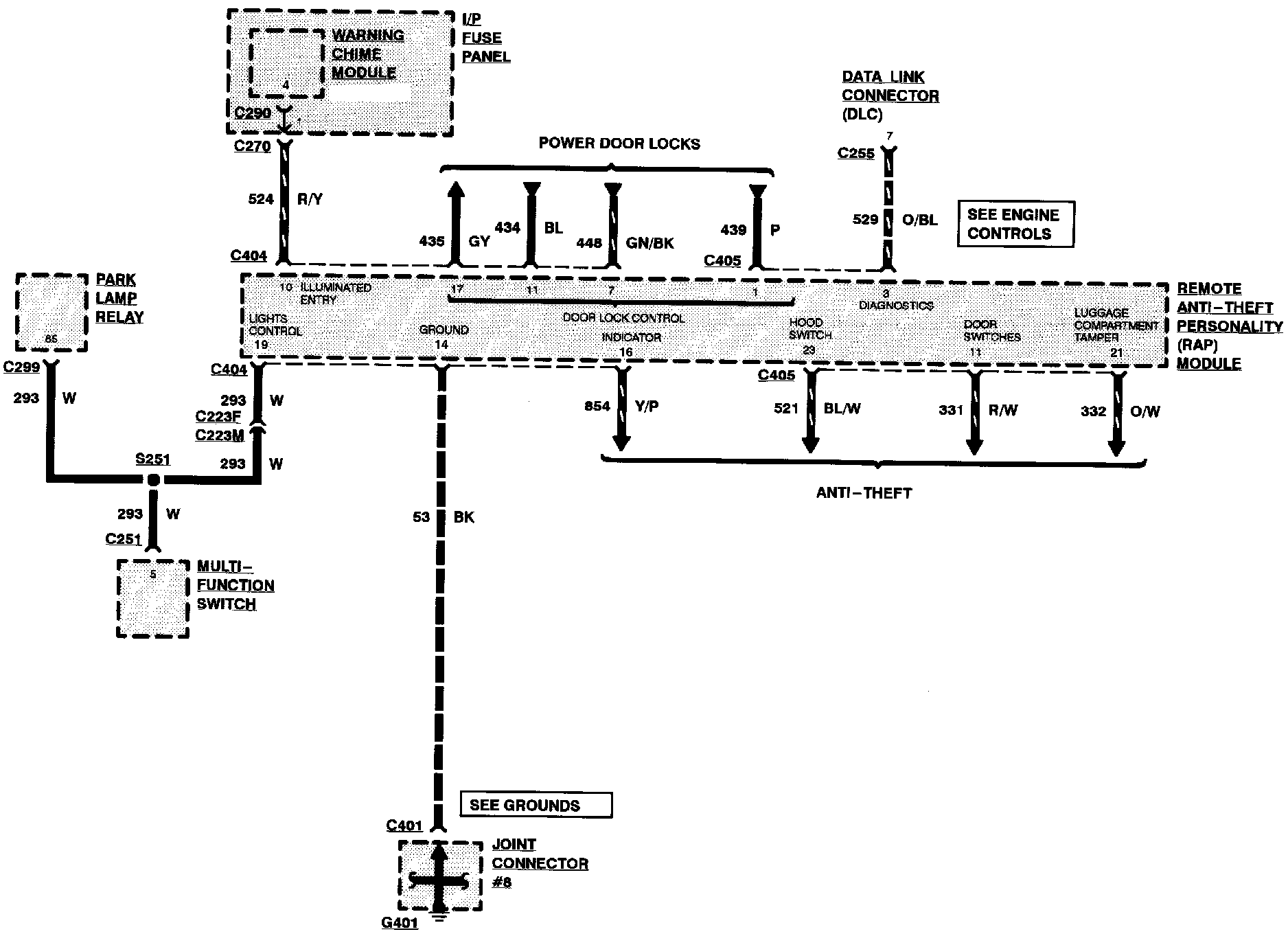

Remote Keyless Entry (Remote Keyless Entry/Smart Remote Keyless Entry) (Part 1 Of 2):

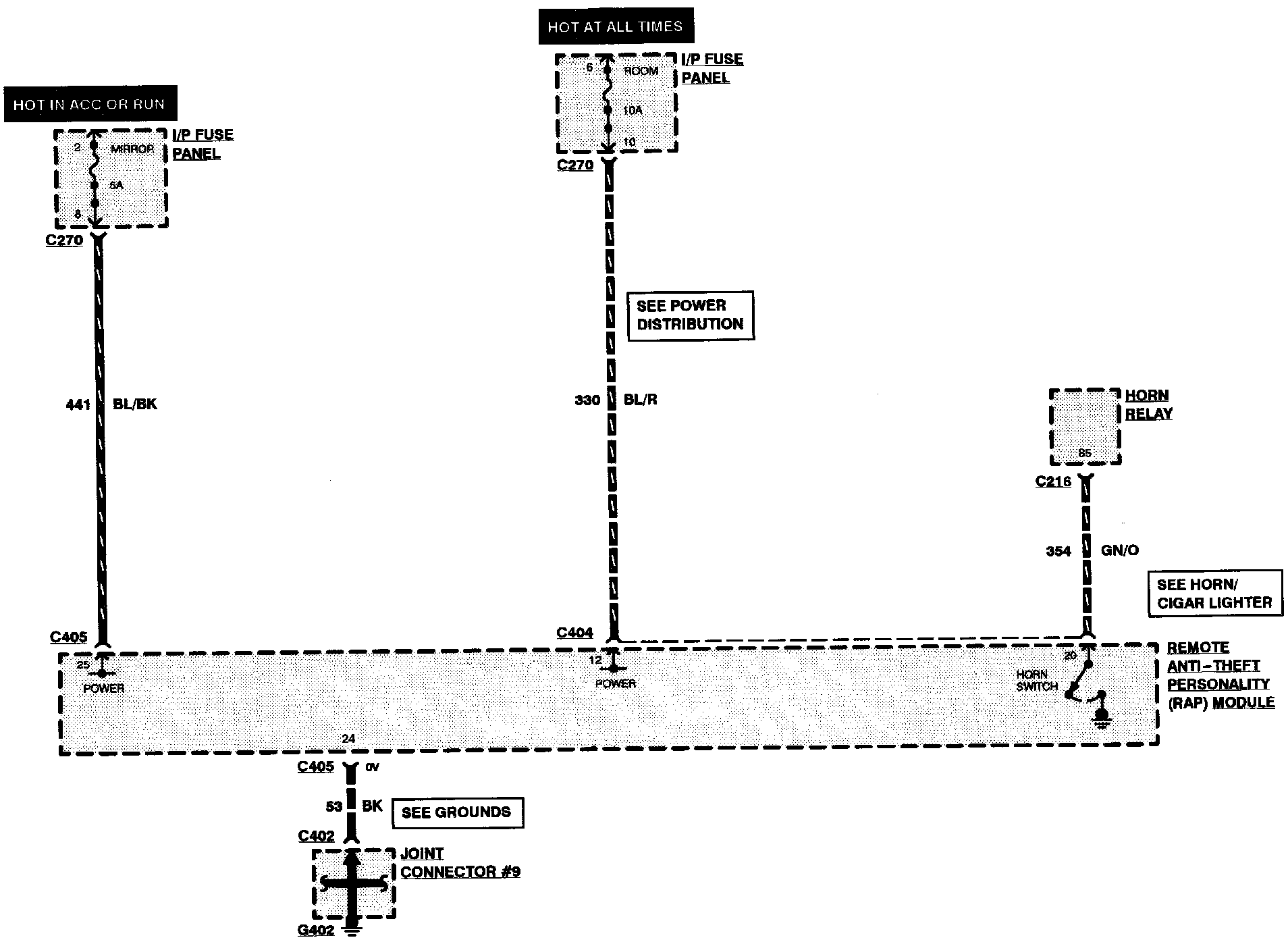

Remote Keyless Entry (Remote Keyless Entry/Smart Remote Keyless Entry) (Part 2 Of 2):
