Home >> Mercury >> 1998 >> Tracer L4-122 2.0L SOHC >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Alarm Module >> Locations >> Sedan

Sedan

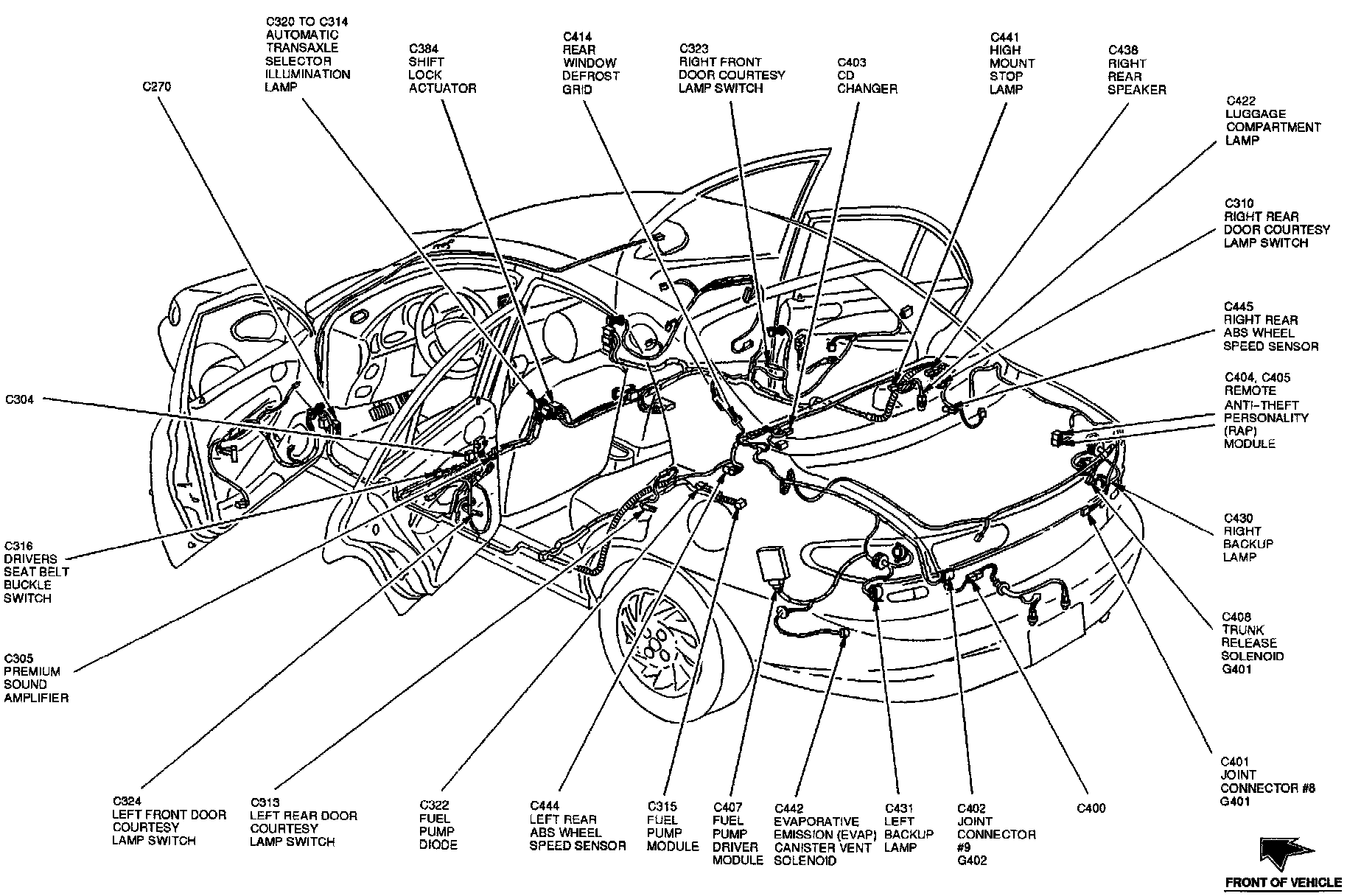

Full Body Views (Part 1 Of 2):





The Remote Anti-Theft Personality Module is located at the RH rear of the vehicle.
