Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Transmission and Drivetrain >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> B: Transmission Fluid/Oil Temperature (TFT/TOT) Sensor >> AX4N

AX4N

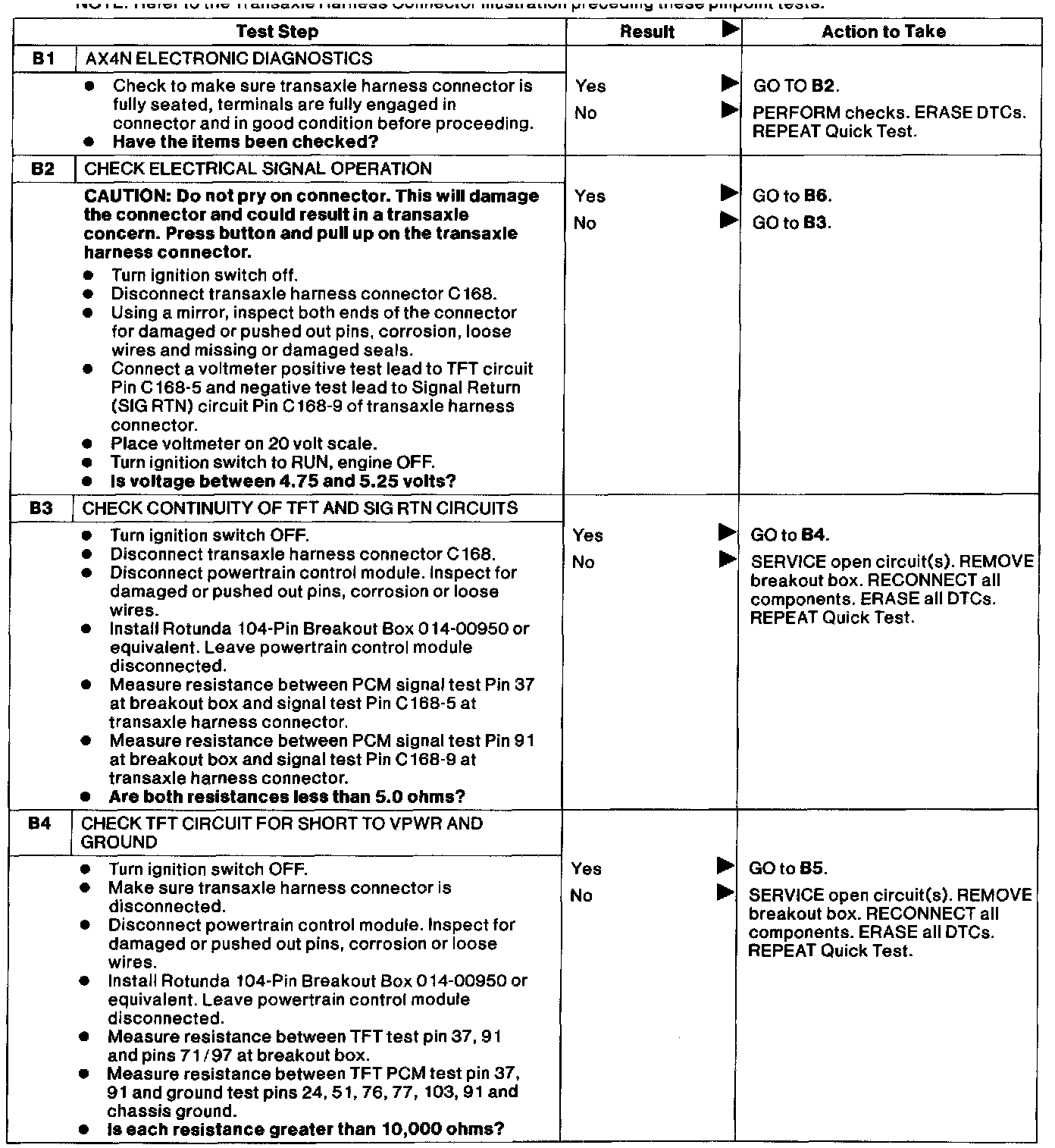

Test B1 - B4:

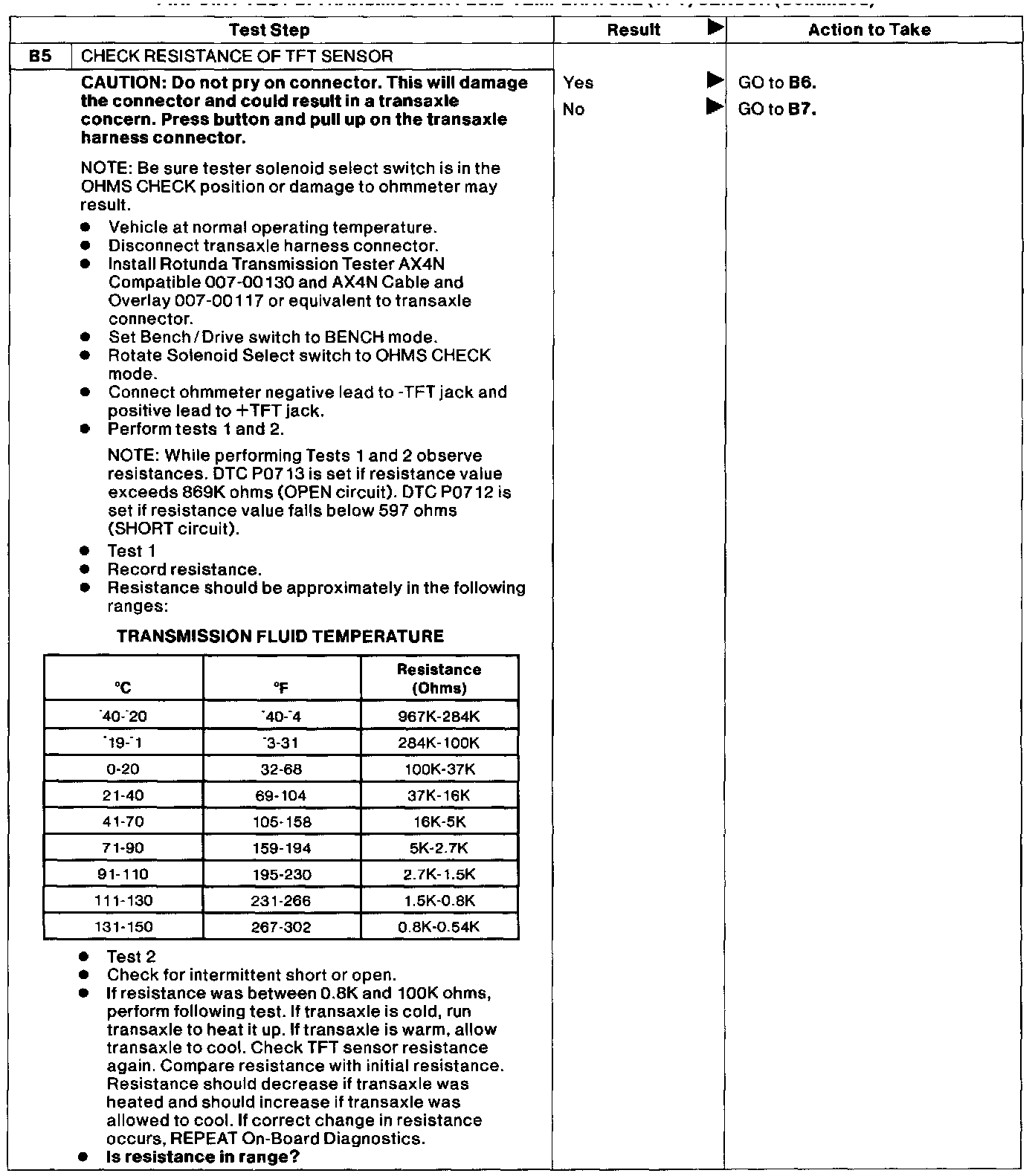

Test B5:

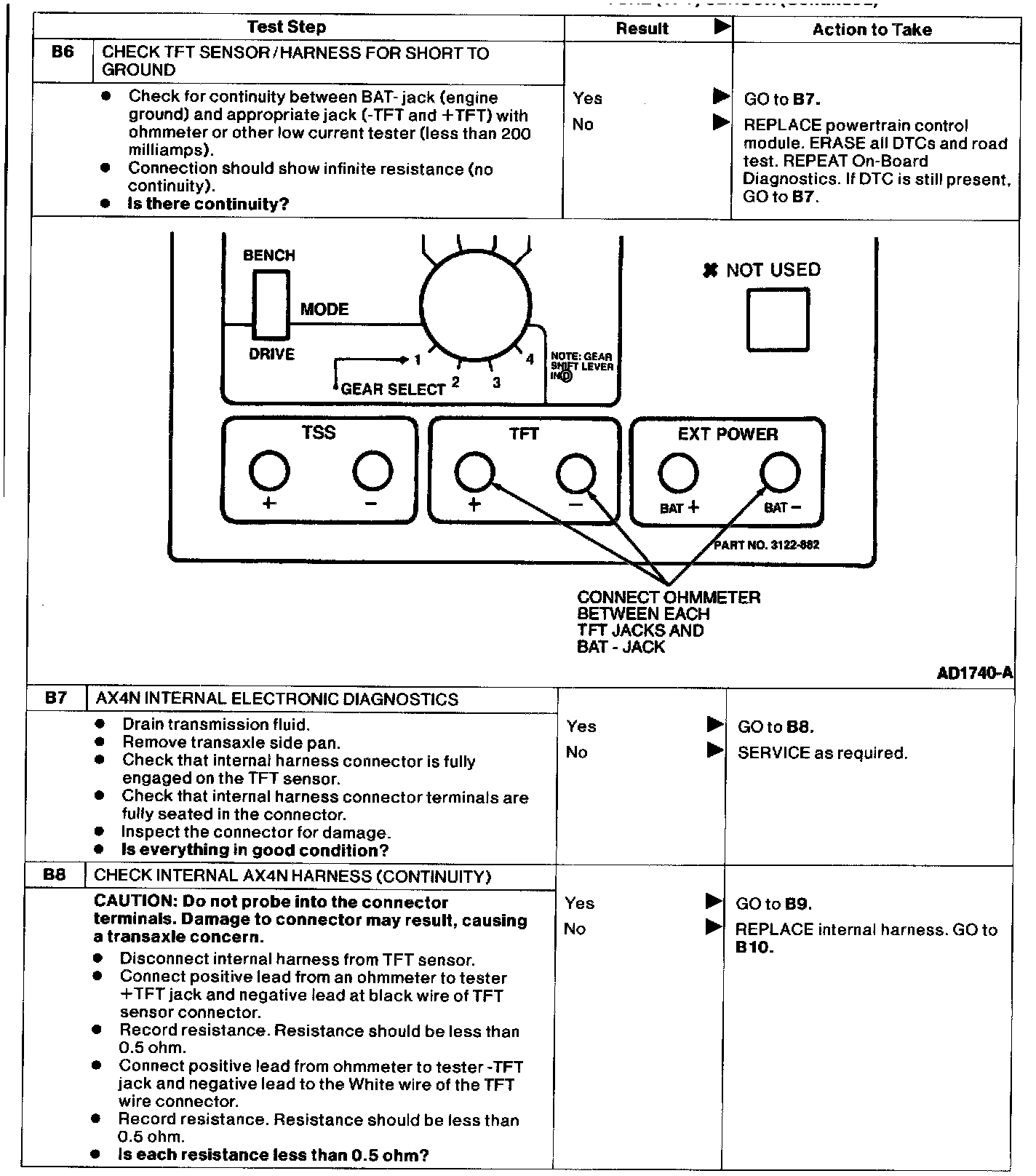

Test B6 - B8:

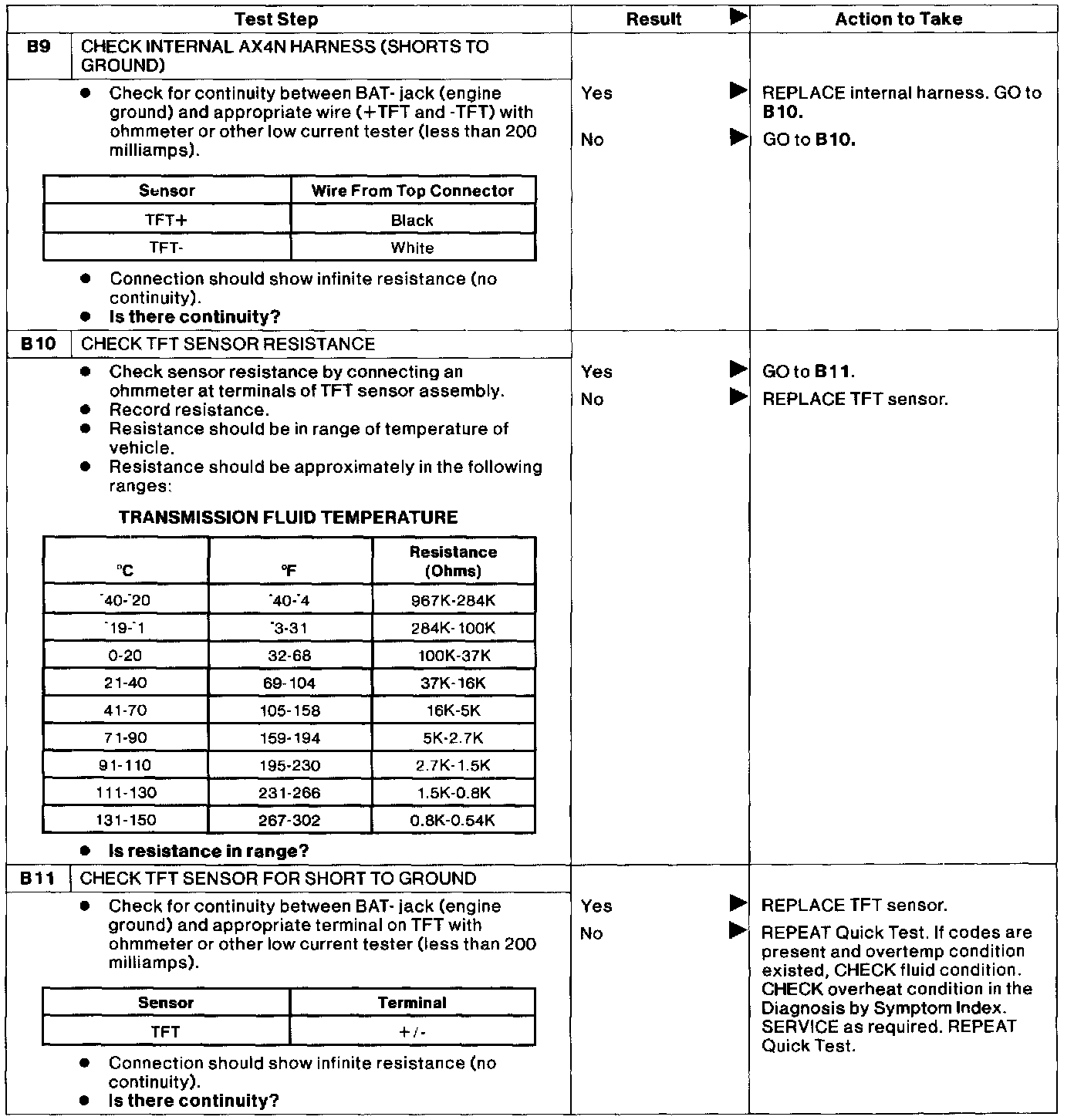

Test B9 - B11:
