Column Shift






REMOVAL

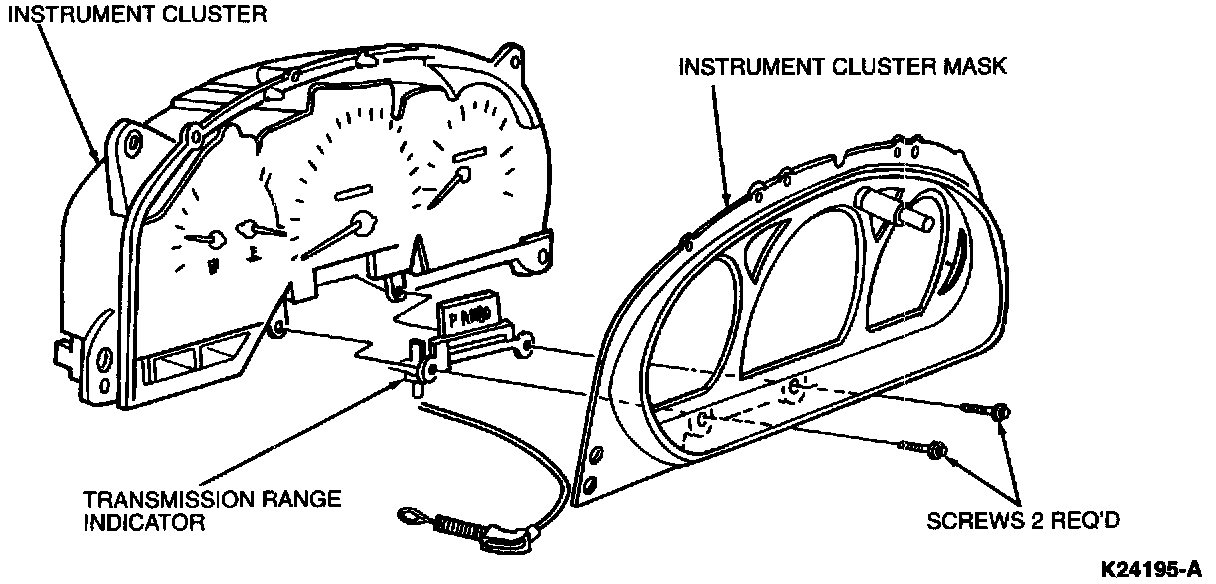

1. Remove instrument cluster.
2. Remove two screws from transmission range indicator.
3. Remove transmission range indicator from instrument cluster.

INSTALLATION
1. Follow removal procedure in reverse order.
