Fuel Tank Pressure Sensor
>>
Locations
>>
Wagon
Wagon

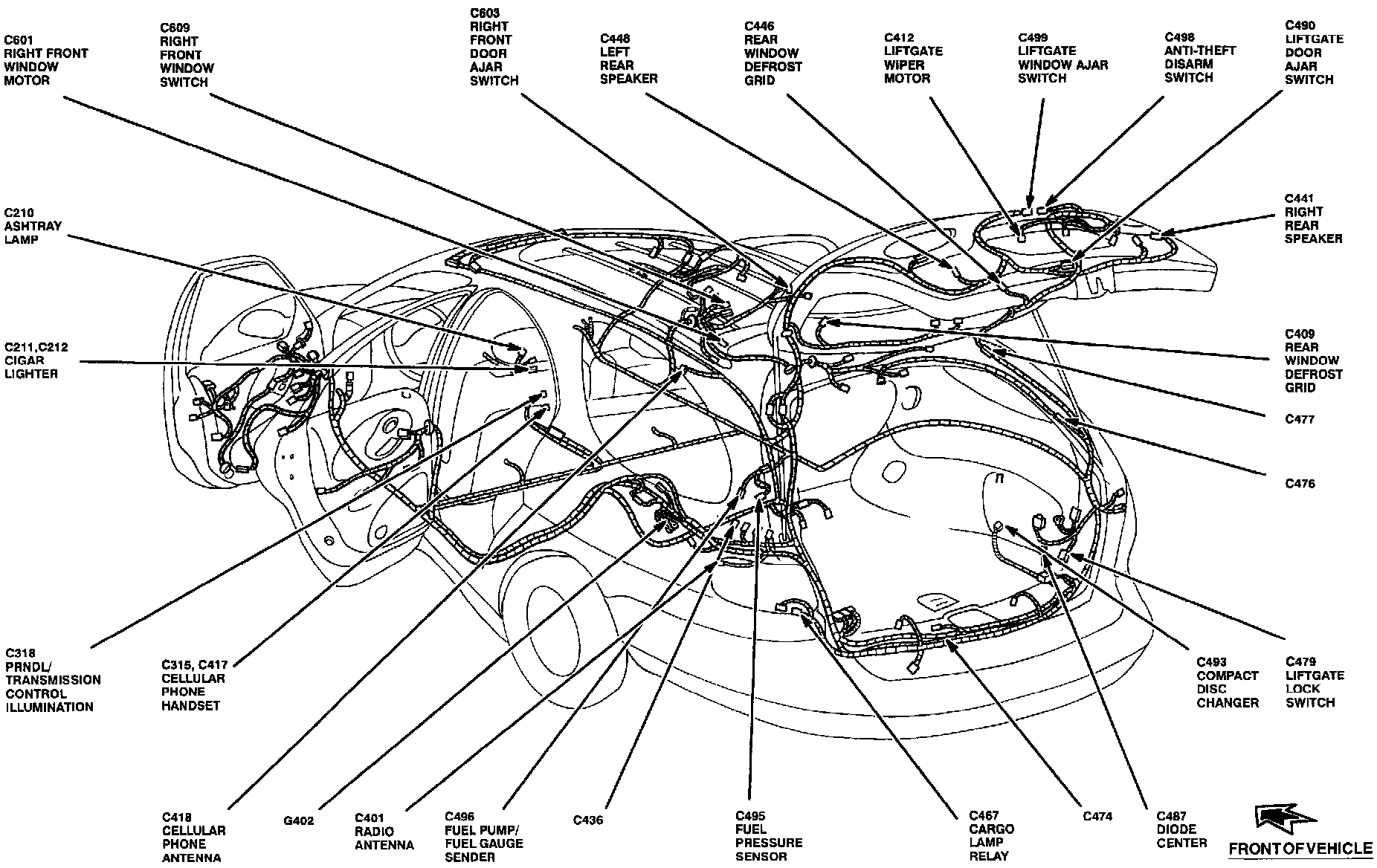

Full Body View:
The Fuel Tank Pressure Sensor is located under the car, on the front side of the fuel tank.
