Seat Control Switch

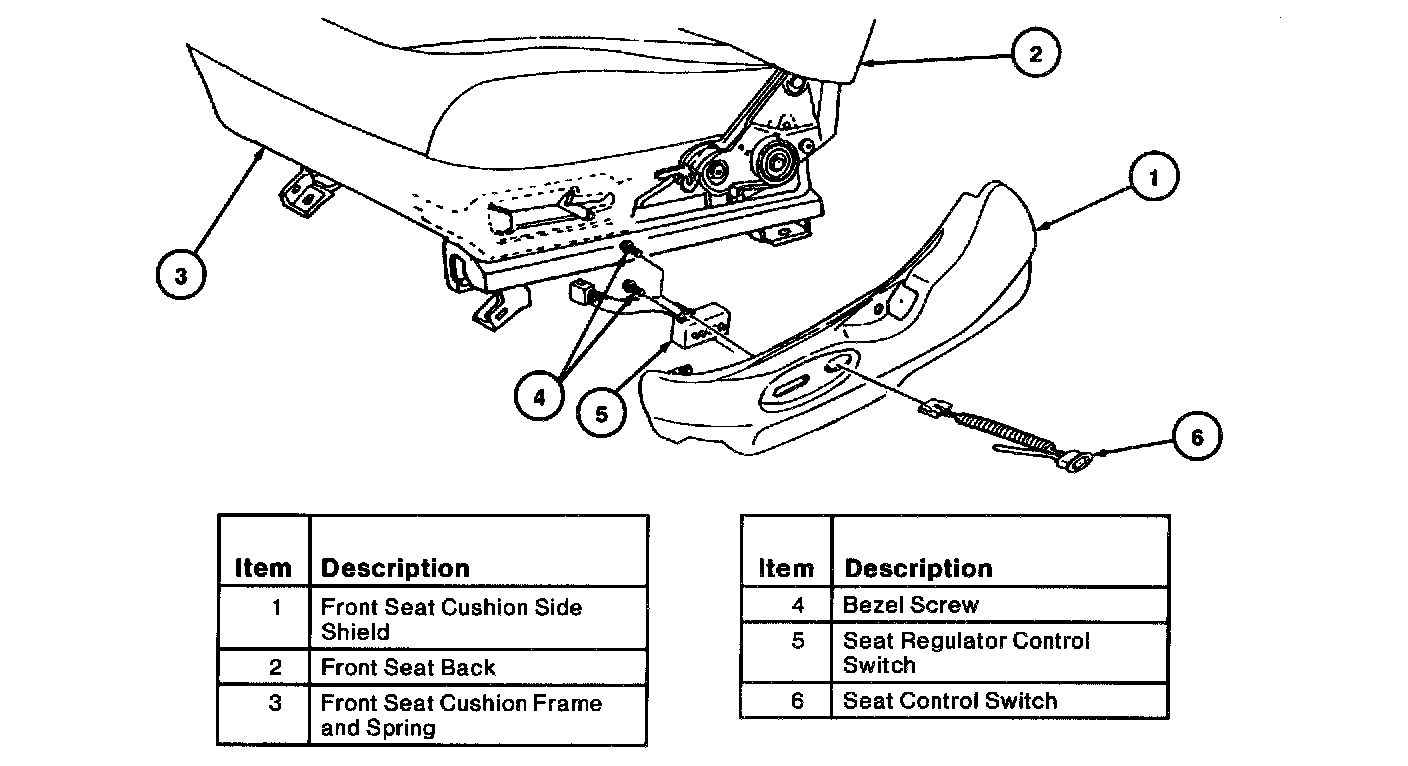

REMOVAL
1. Disconnect battery ground cable.
2. Remove seat back latch handle cover.
3. Disengage spring clips retaining front seat cushion side shield and pull away from front seat cushion frame and spring.
4. Disconnect wires and hose from seat control switch and remove seat control switch.

INSTALLATION
1. Follow removal procedure in reverse order.
