Engine Control Module
>>
Diagrams
>>
Connector Views
Connector Views

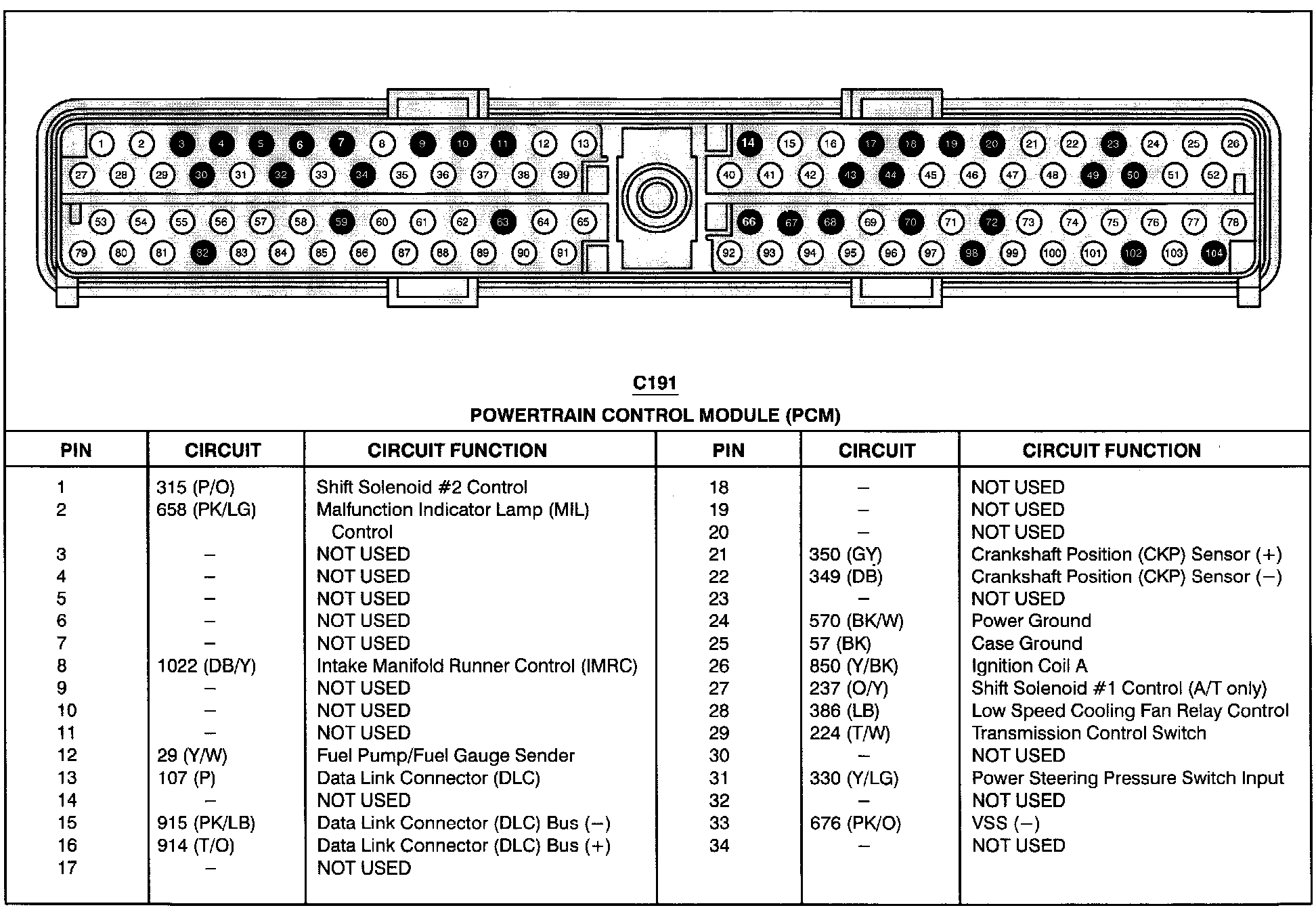

Power Control Module (Part 1 Of 3):

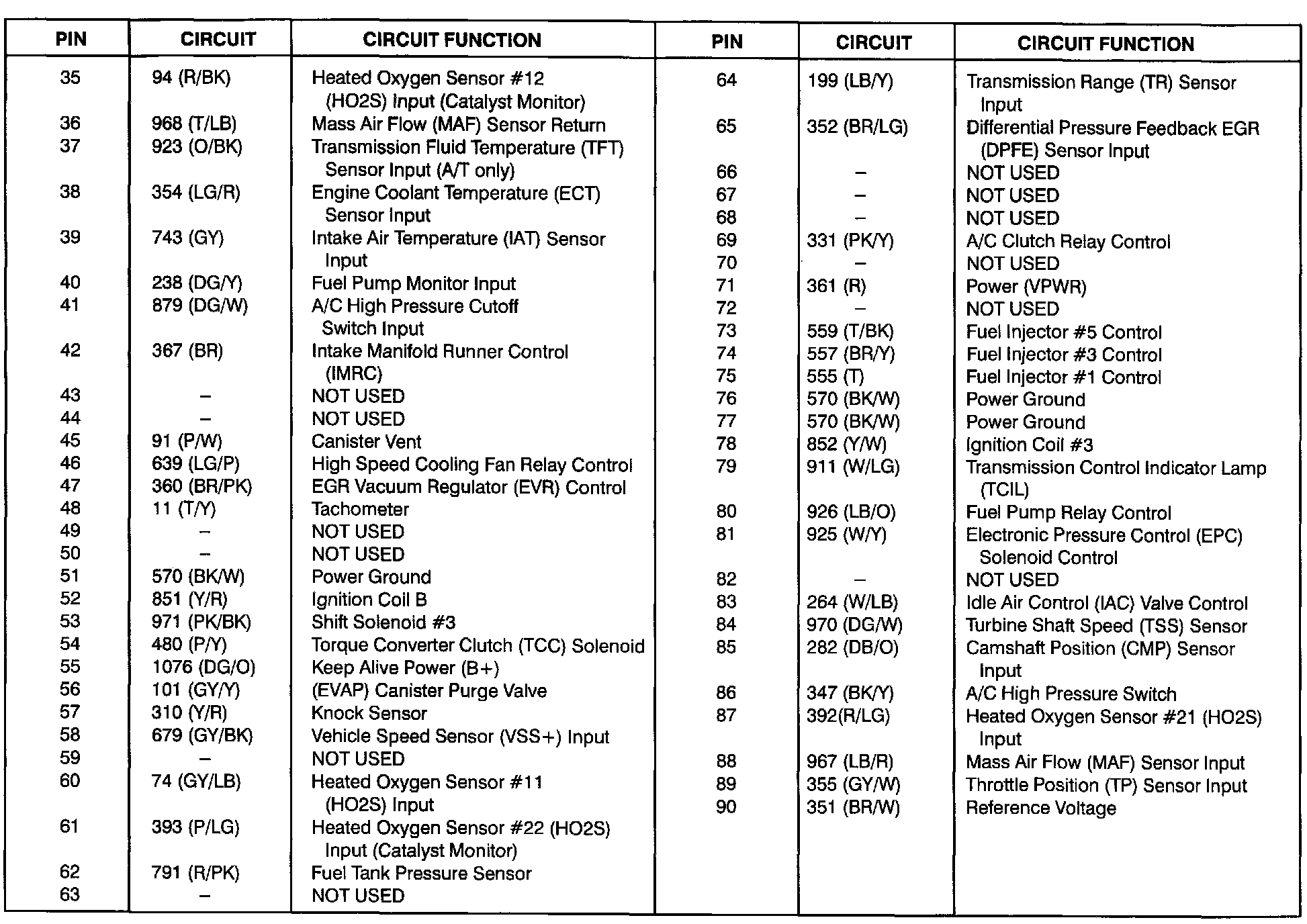

Power Control Module (Part 2 Of 3):

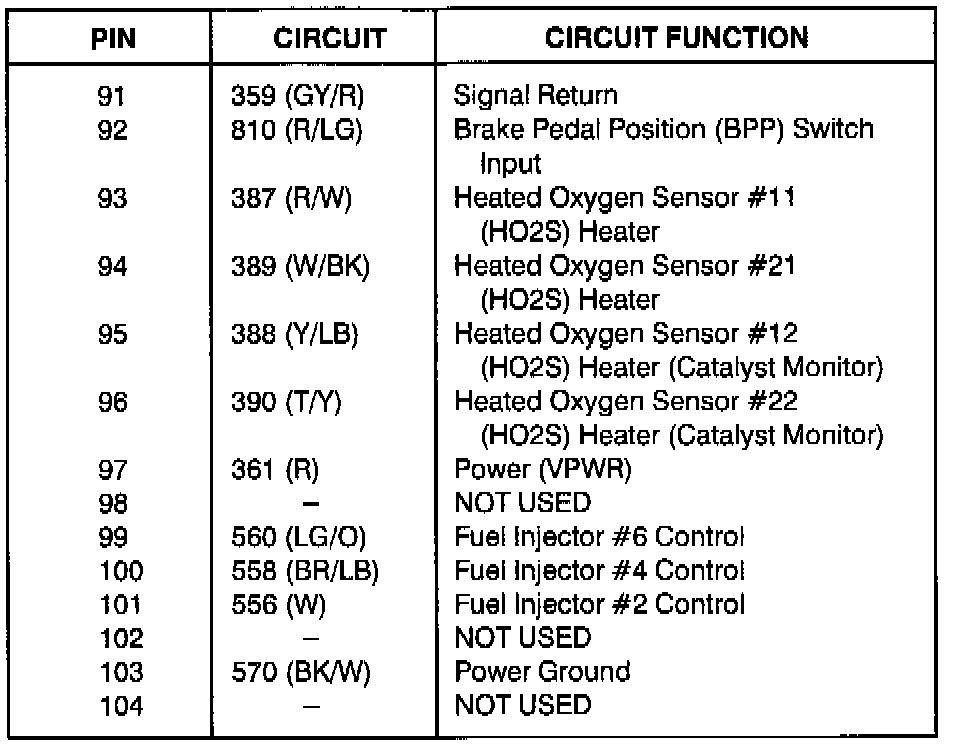

Power Control Module (Part 3 Of 3):
