Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> F: Turbine/Transmission Shaft Speed (TSS) Sensor >> AX4N

AX4N

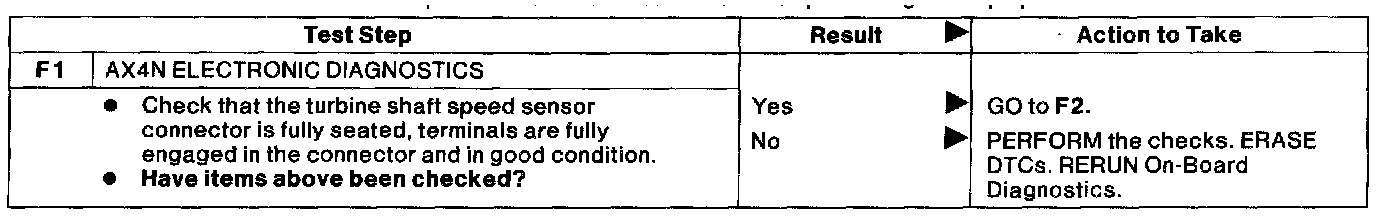

Test F1:

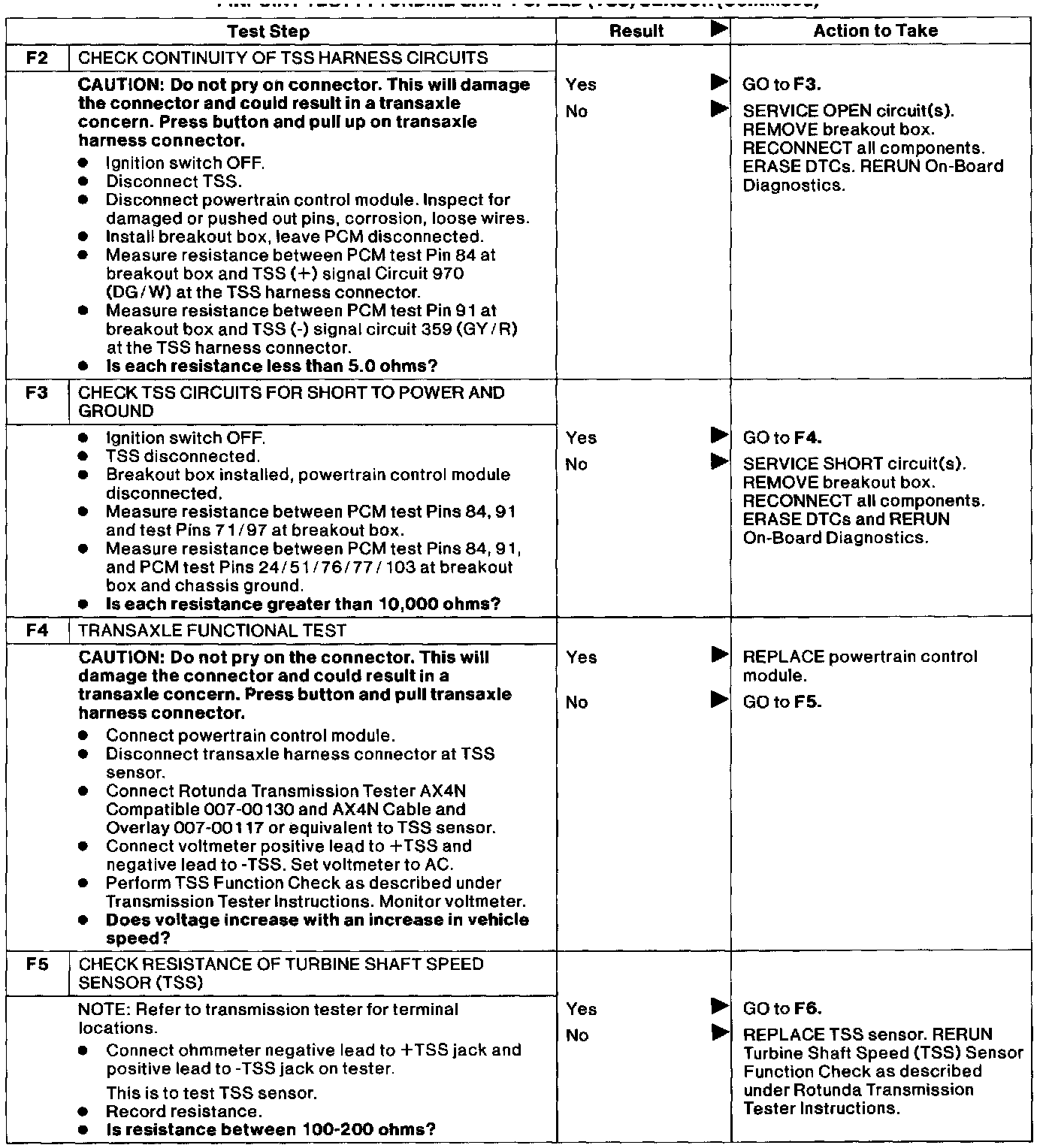

Test F2 - F5:

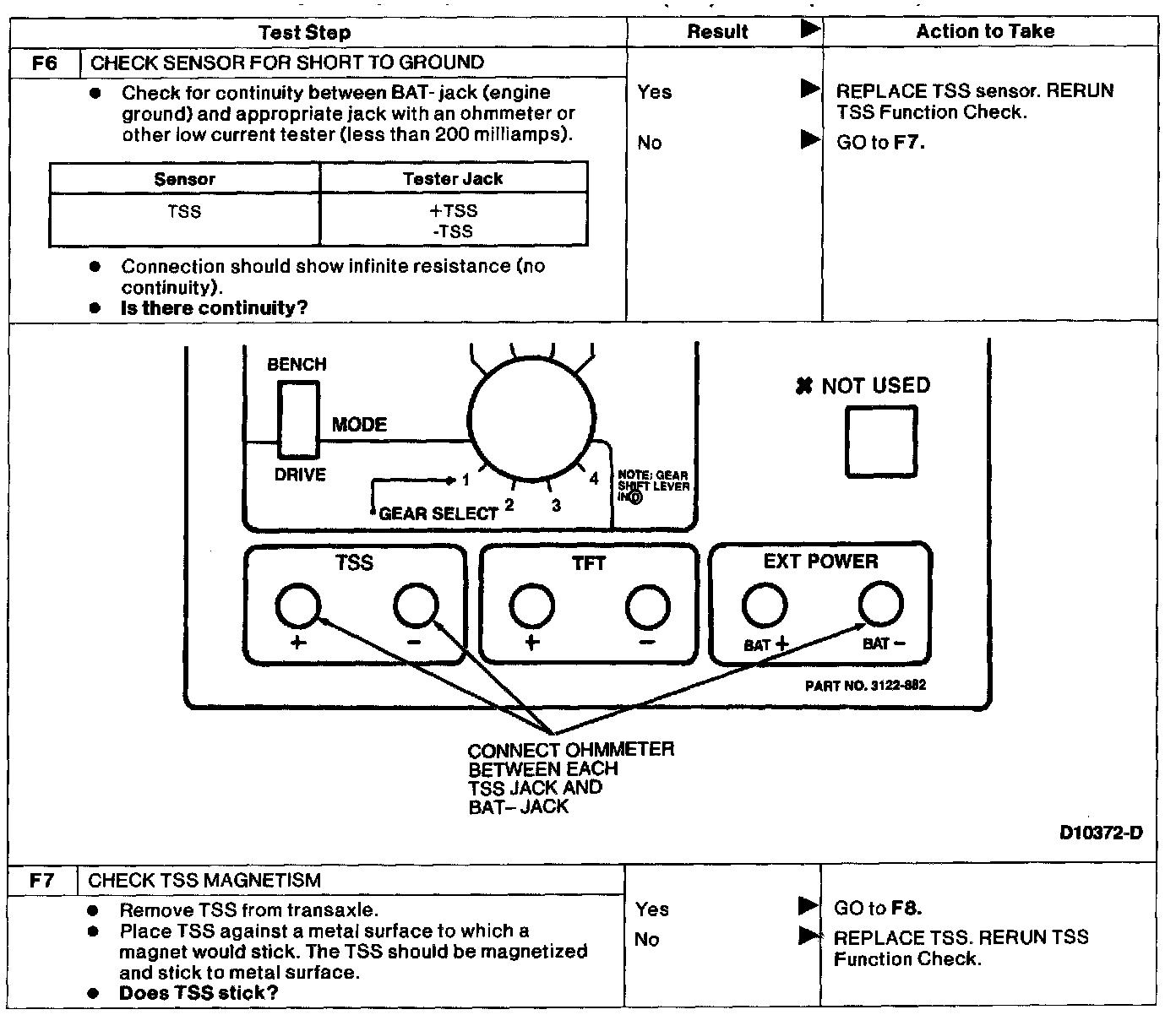

Test F6 - F7:

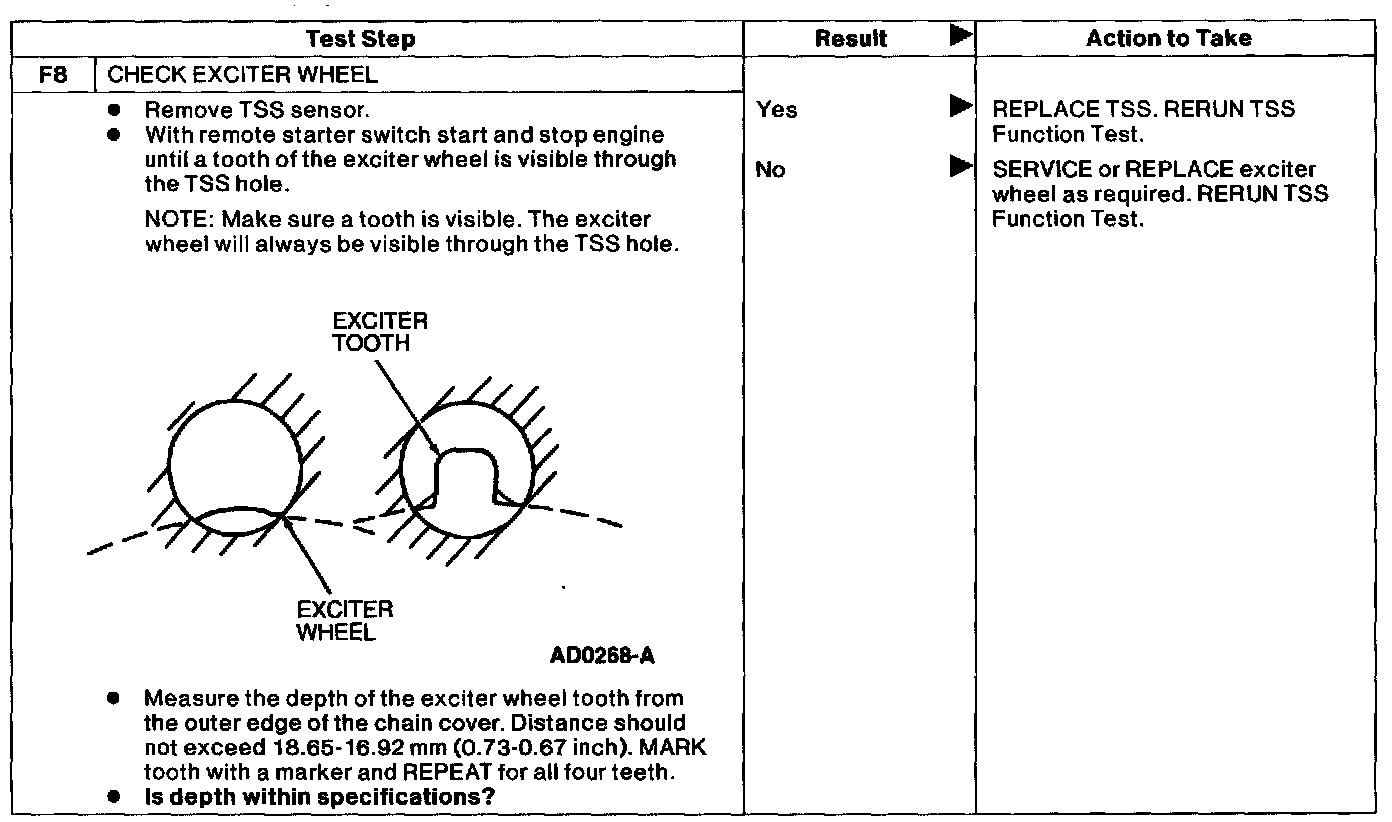

Test F8:
