Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> E: Electronic Pressure Control (EPC) Solenoid >> AX4S

AX4S

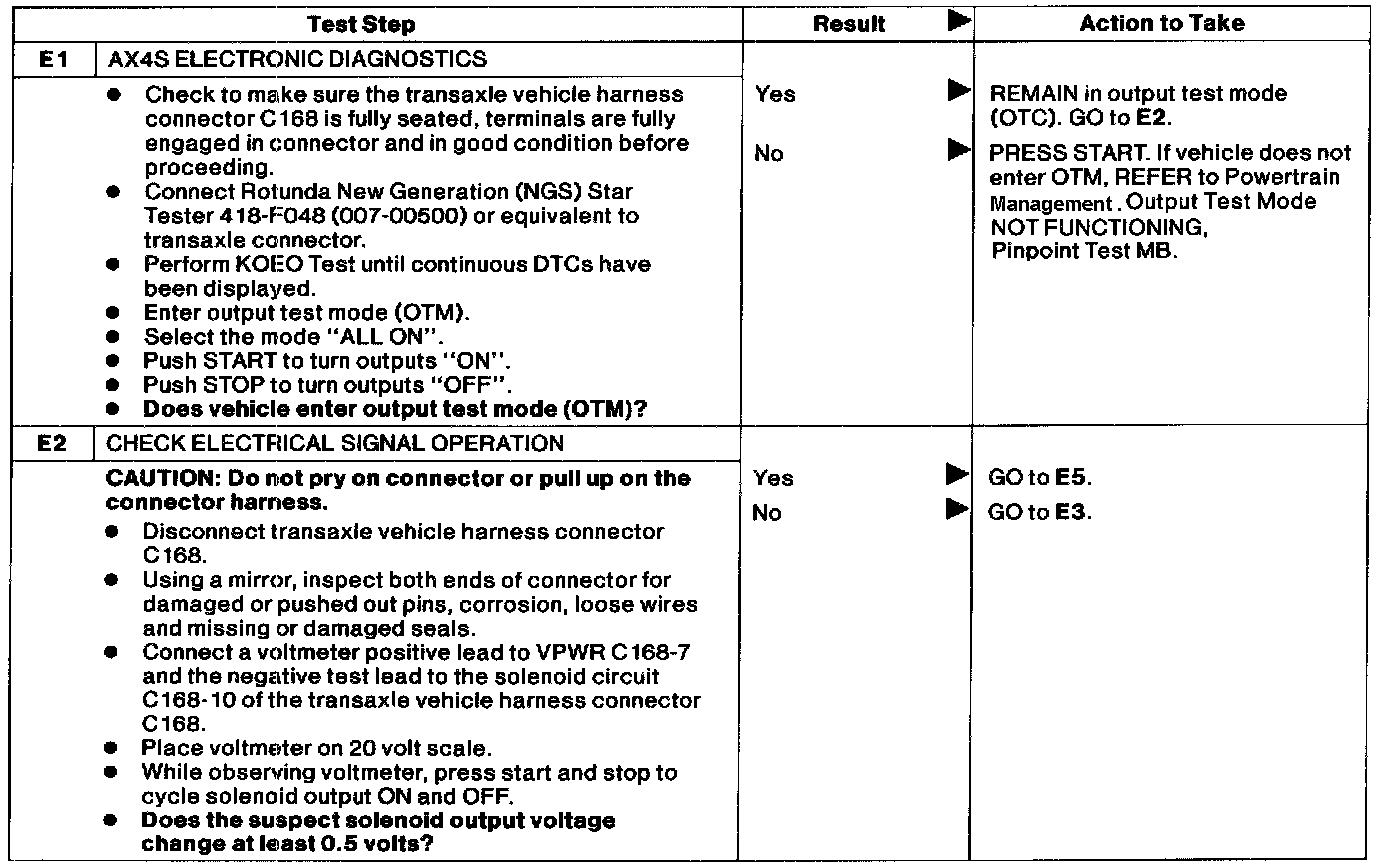

Test E1 - E2:

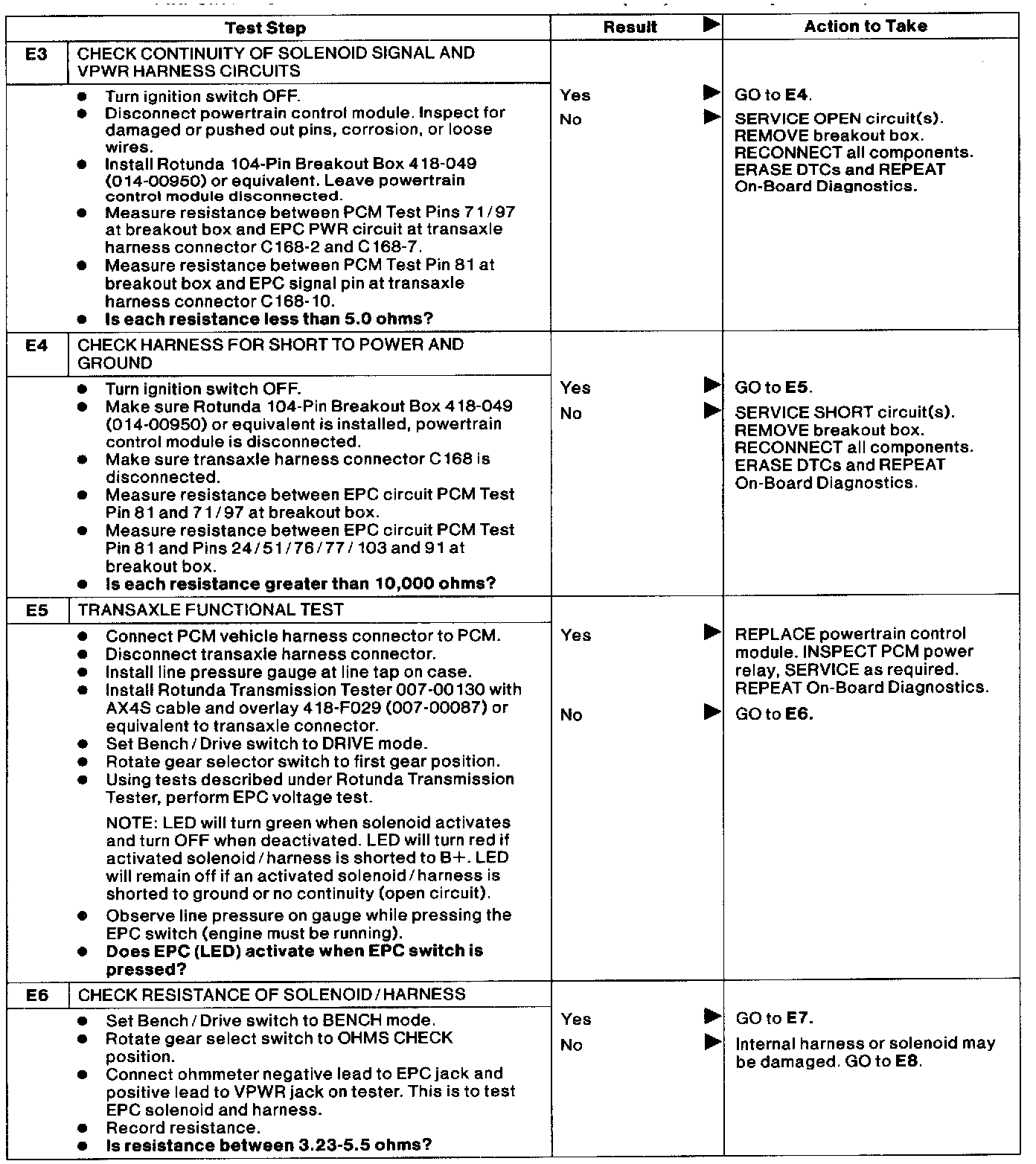

Test E3 - E6:

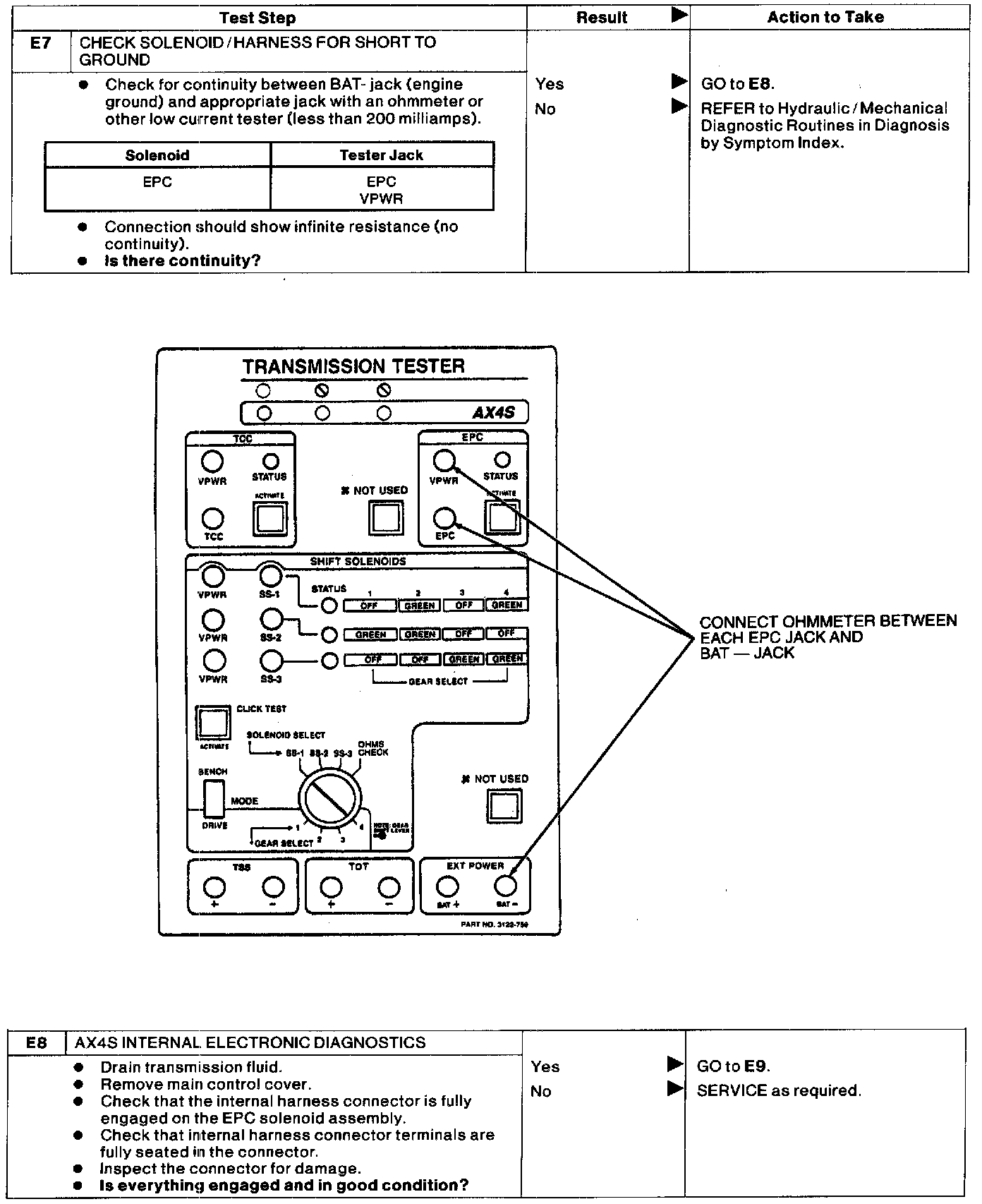

Test E7 - E8:

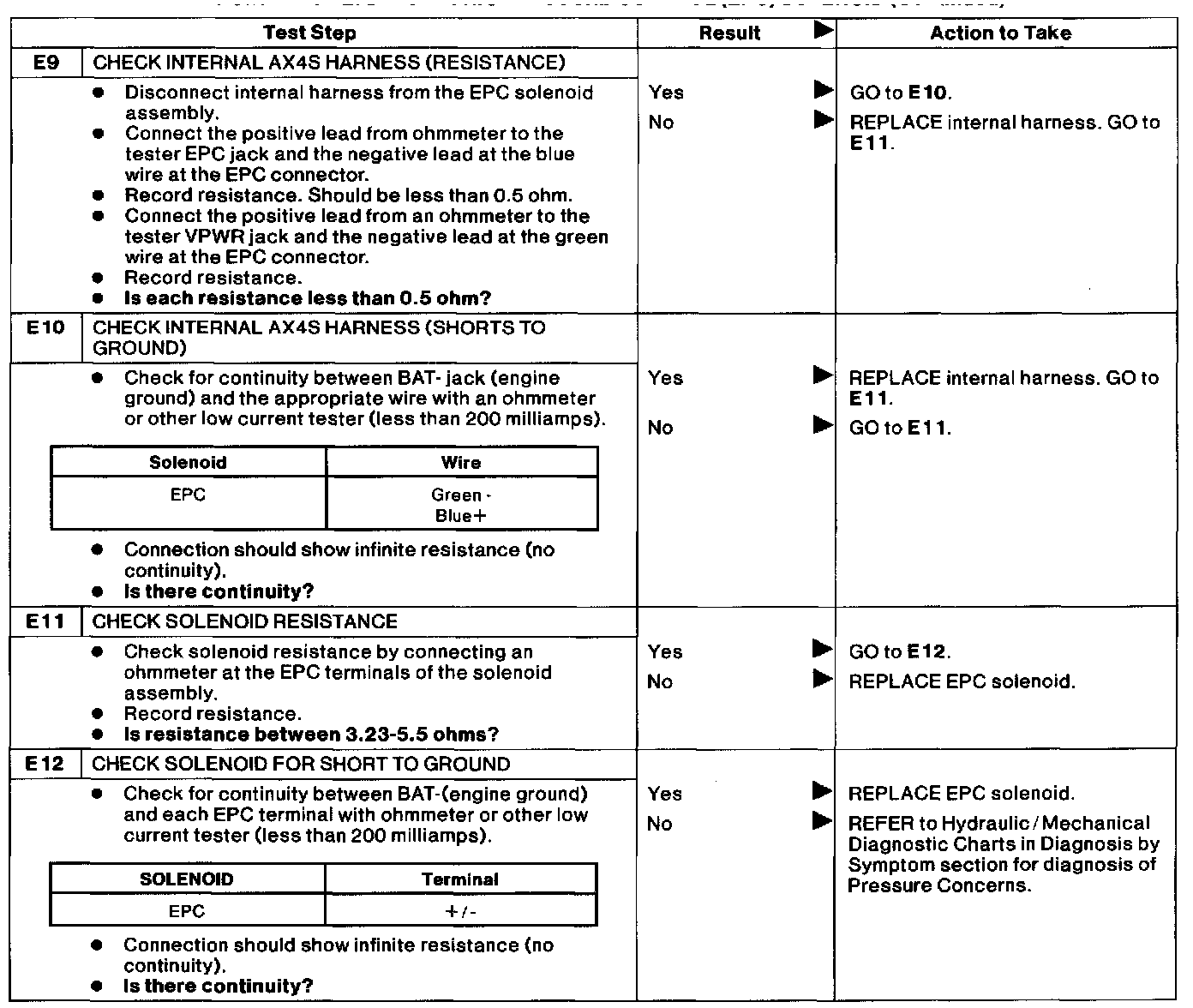

Test E9 - E12:
