Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Testing and Inspection >> Pinpoint Tests >> C: Torque Converter Clutch (TCC) Solenoid >> AX4N

AX4N

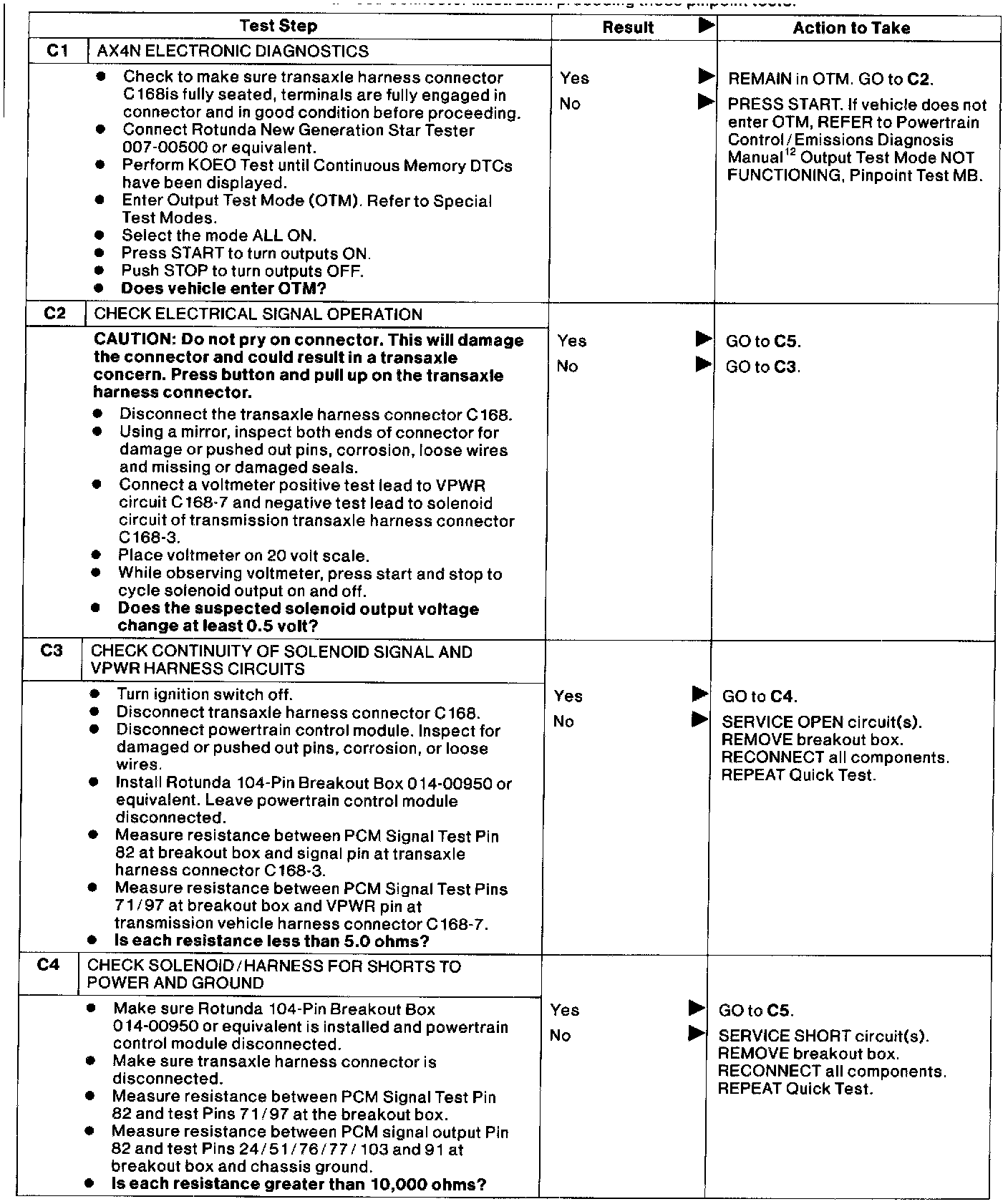

Test C1 - C4:

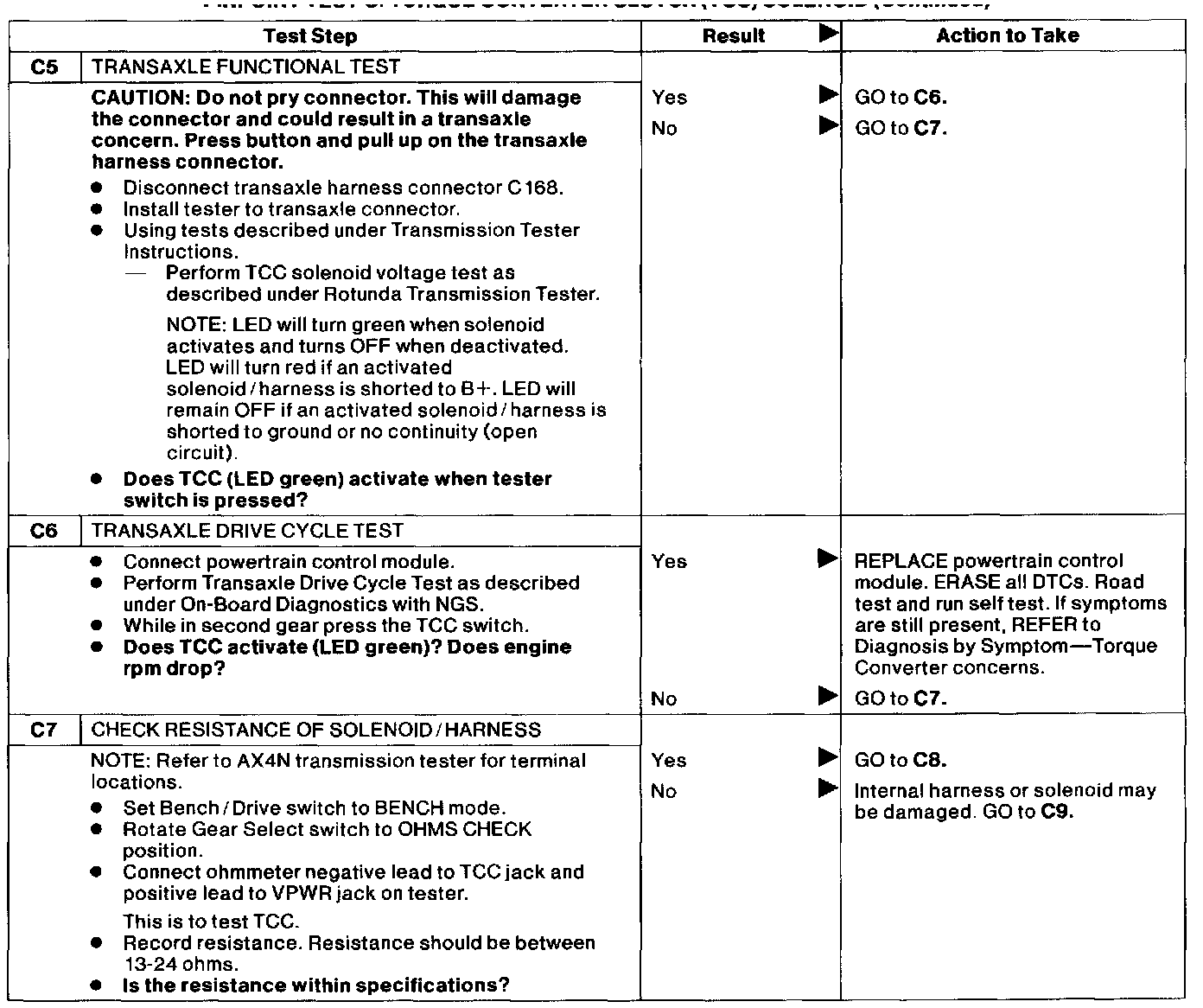

Test C5 - C7:

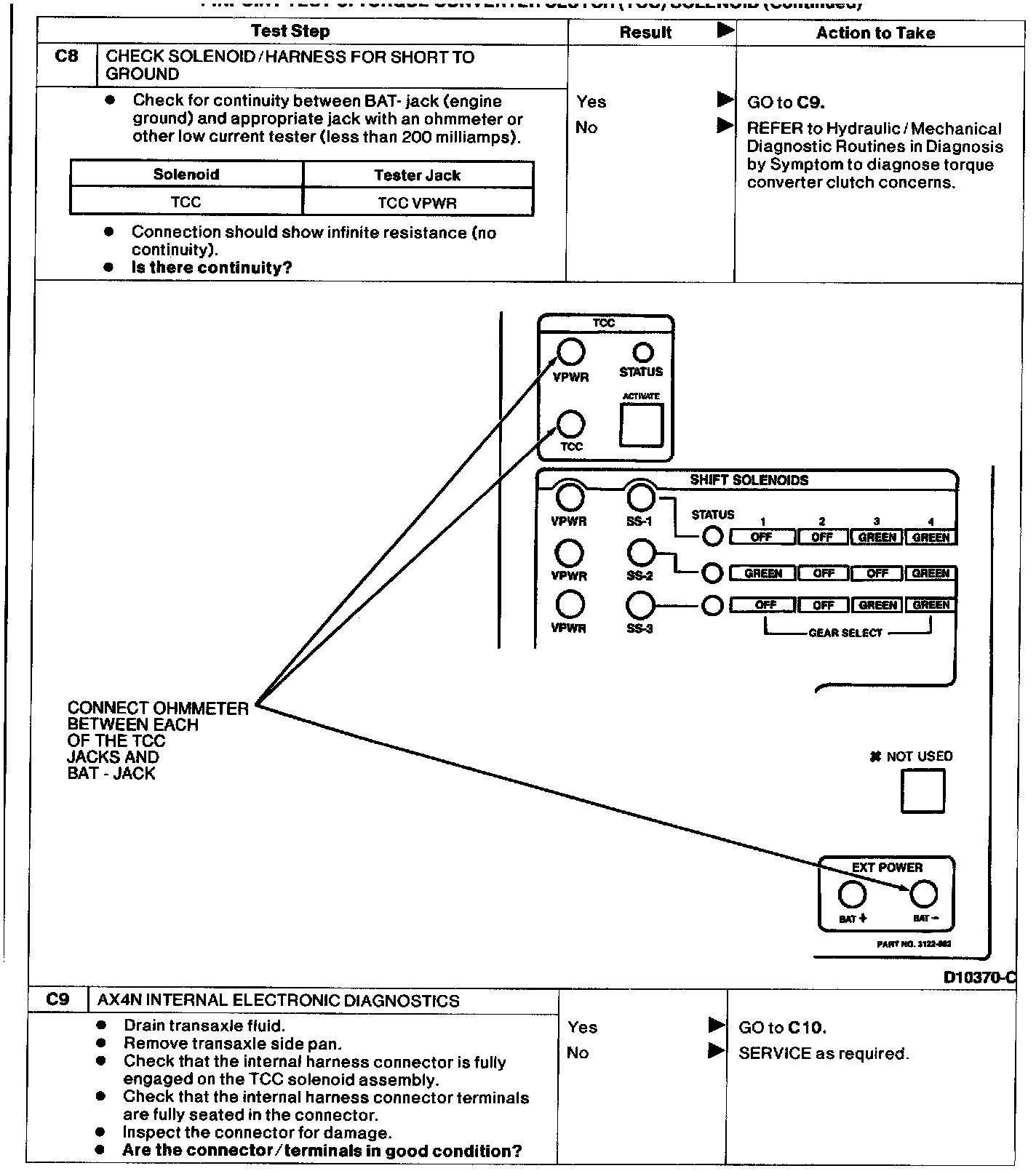

Test C8 - C9:

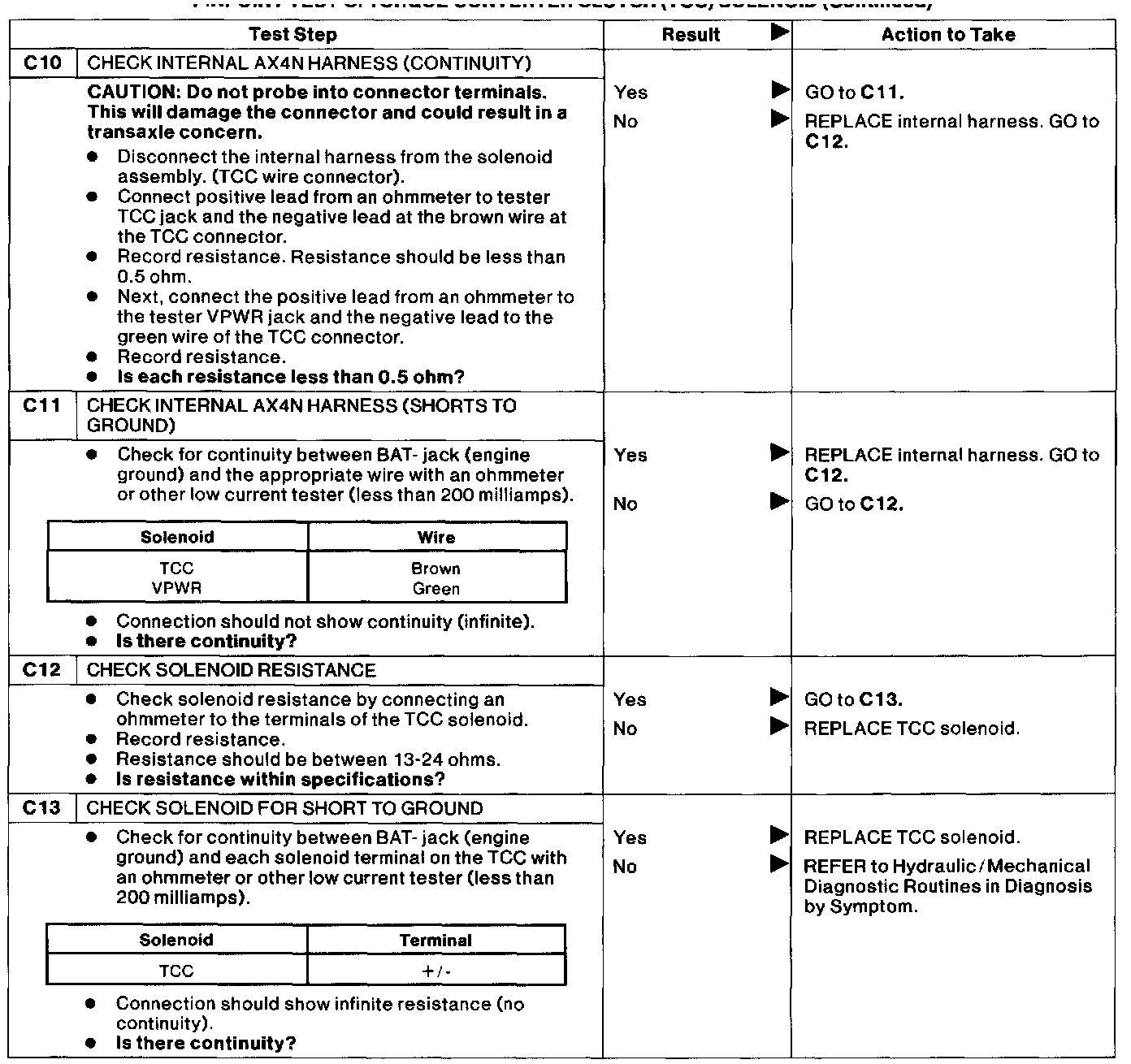

Test C10 - C13:
