Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams

Electrical Diagrams

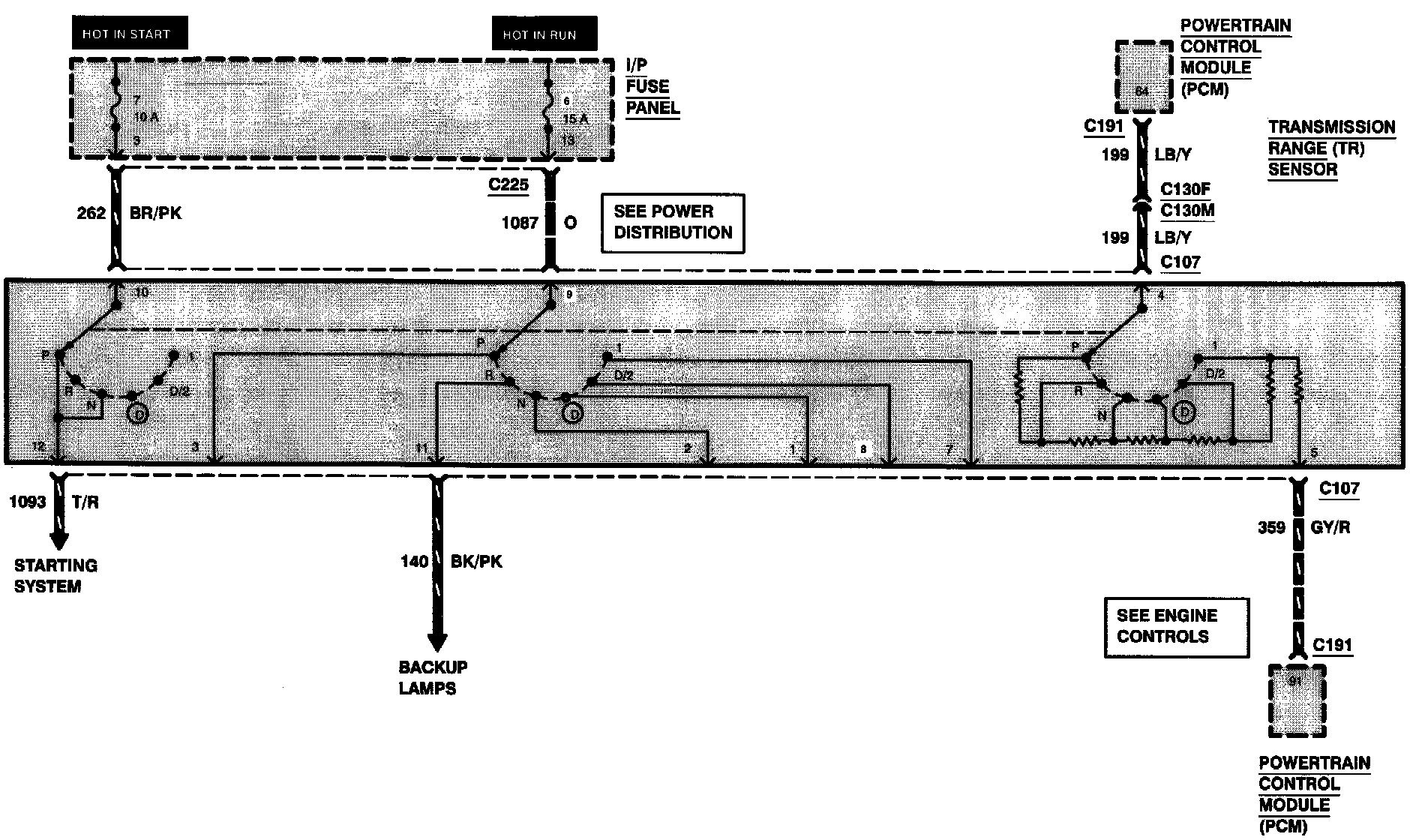

Transmission Controls (AX4S/AX4N) (Part 1 Of 5):

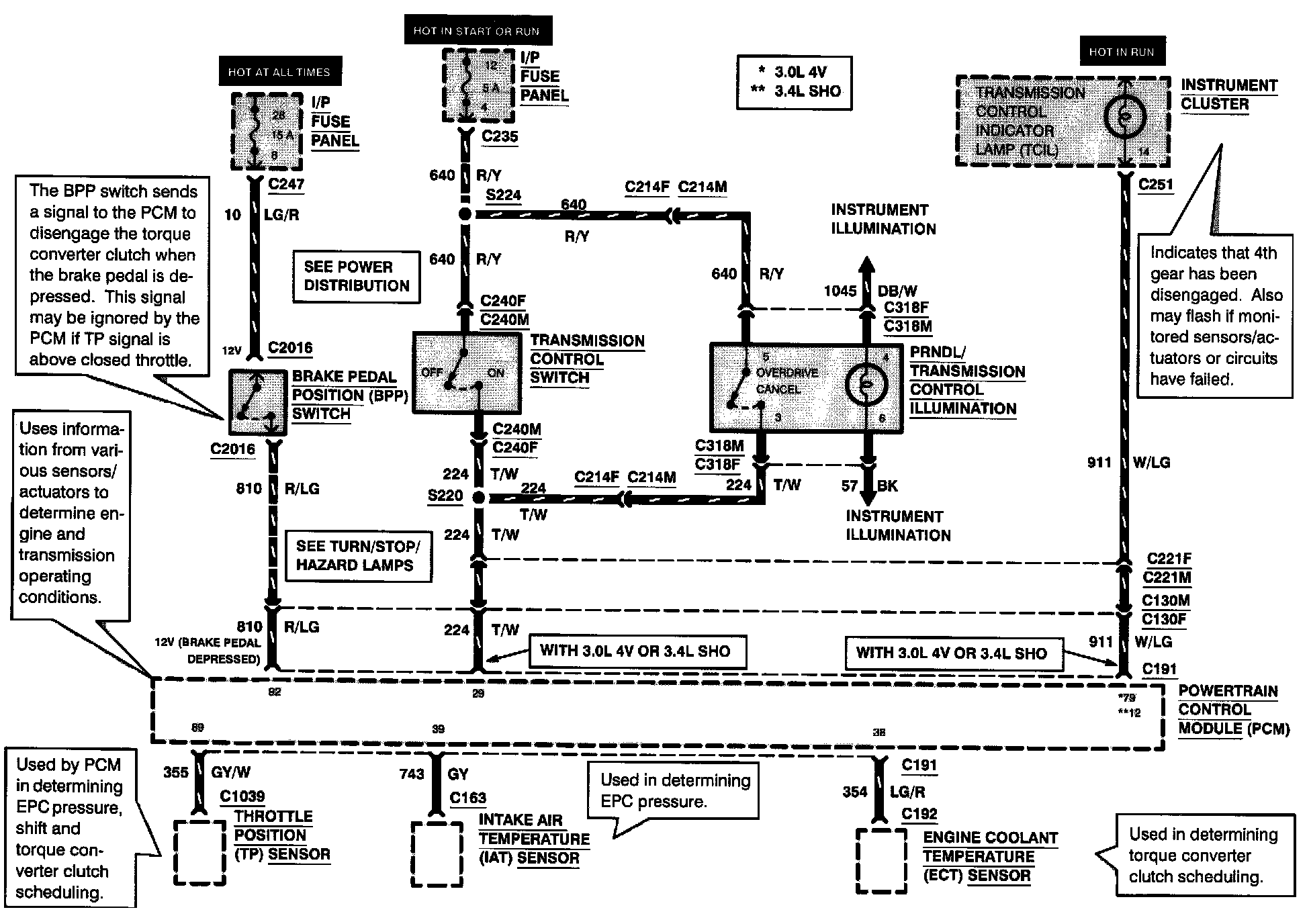

Transmission Controls (AX4S/AX4N) (Part 2 Of 5):

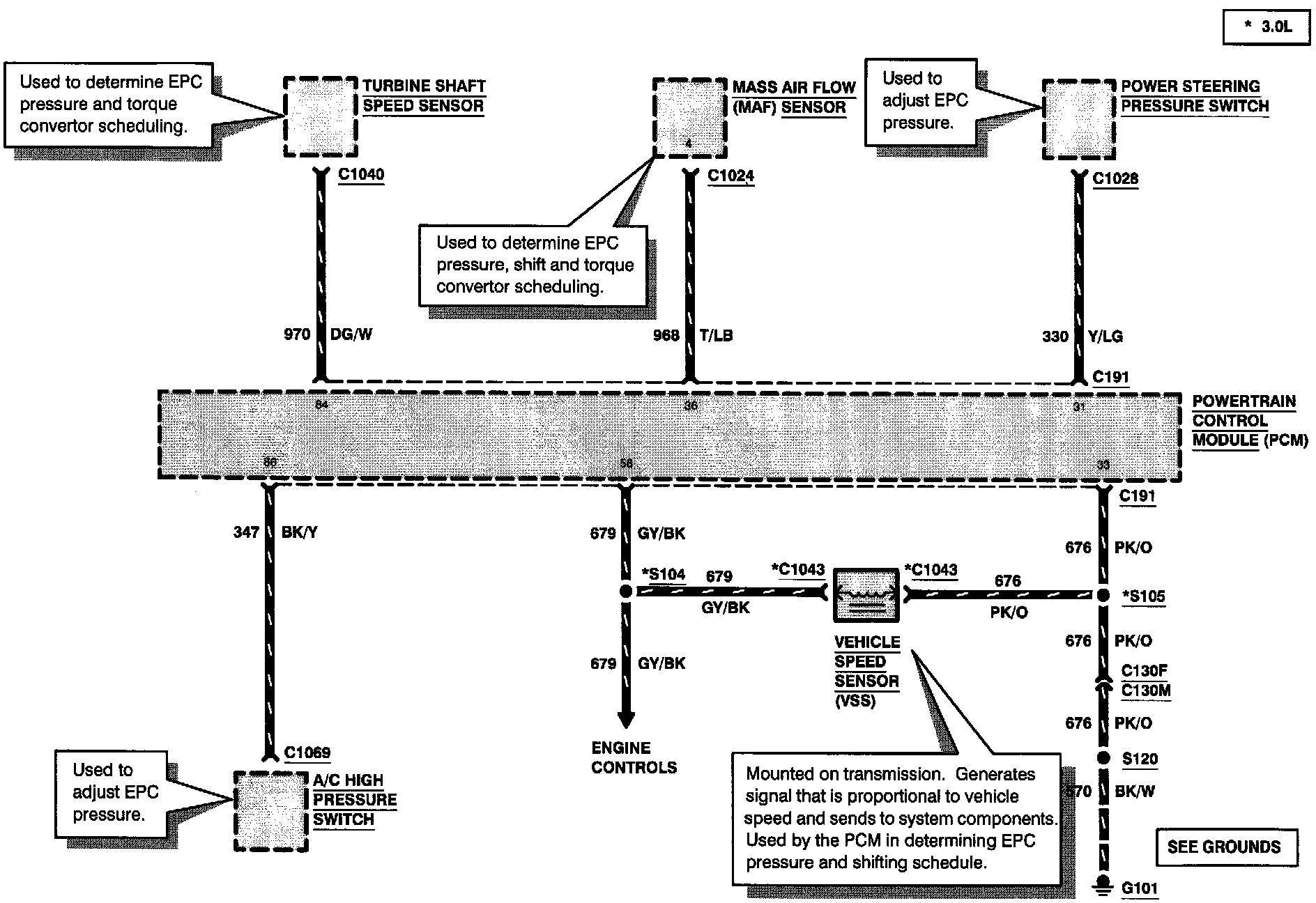

Transmission Controls (AX4S/AX4N) (Part 3 Of 5):




Transmission Controls (AX4S/AX4N) (Part 5 Of 5):
