Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD - Fuel Rail Pressure (FRP) Sensor >> Tables and Graphs

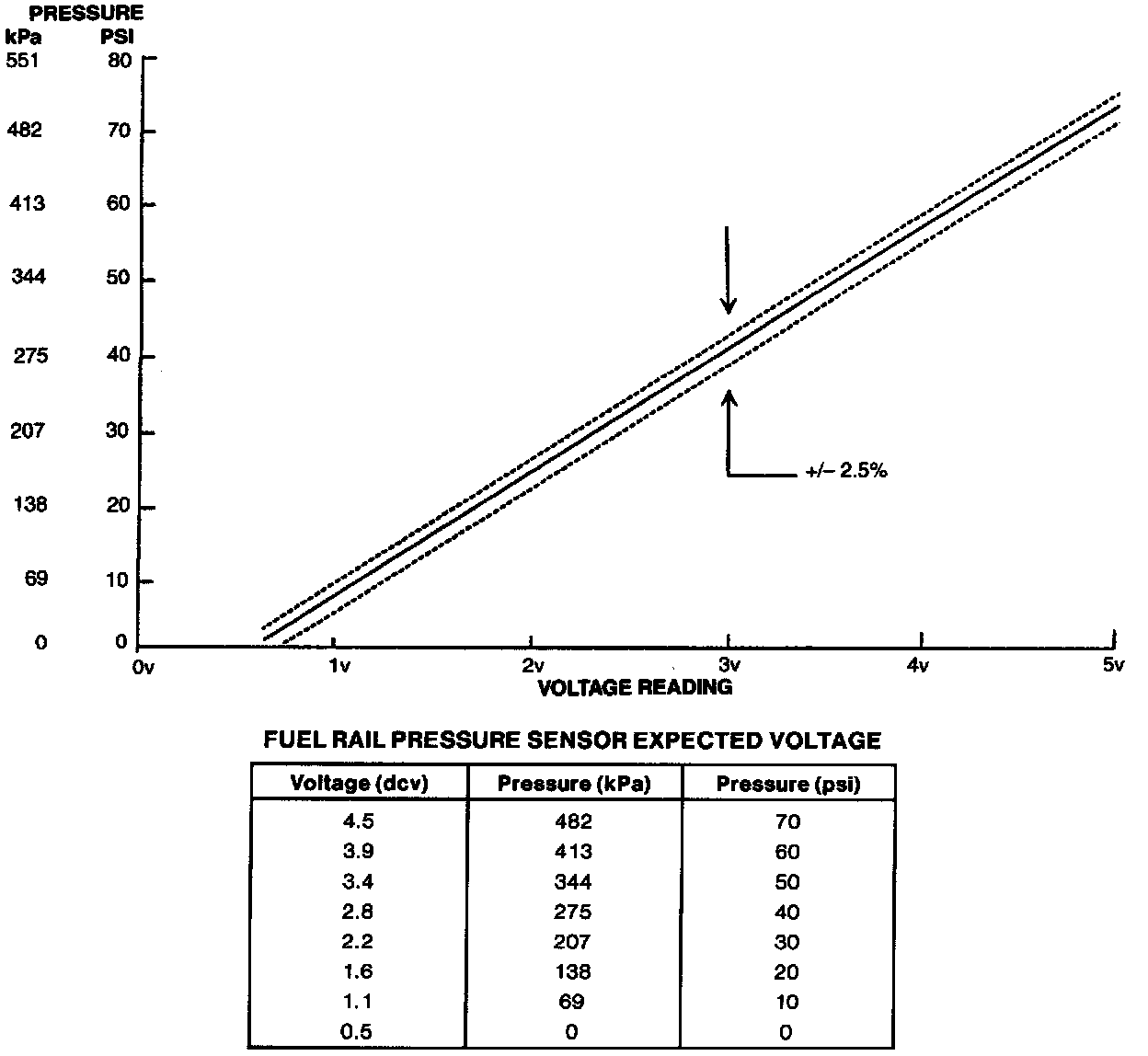

Tables and Graphs





Voltage values were calculated for VREF = 5.0 volts. These values can vary 15 percent due to sensor and VREF variations.
