Mercury
>>
1998
>>
Sable V6-3.0L DOHC VIN S
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Information Bus
>>
Testing and Inspection
>>
Pinpoint Tests
>>
B: No Module Response On Ckt 914 (T/O) or Ckt 915 (PK/LB)
B: No Module Response On Ckt 914 (T/O) or Ckt 915 (PK/LB)

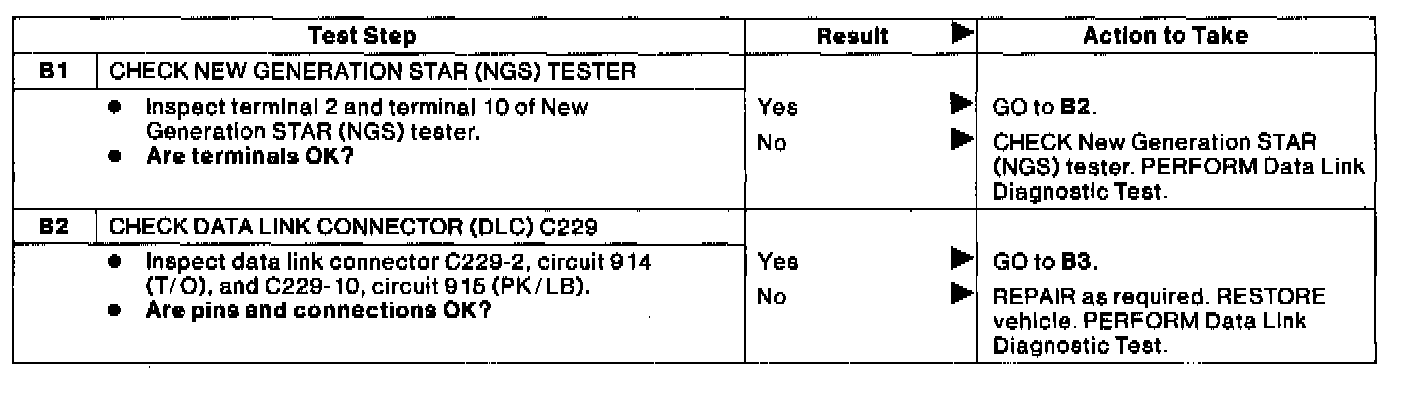

B1 - B2:

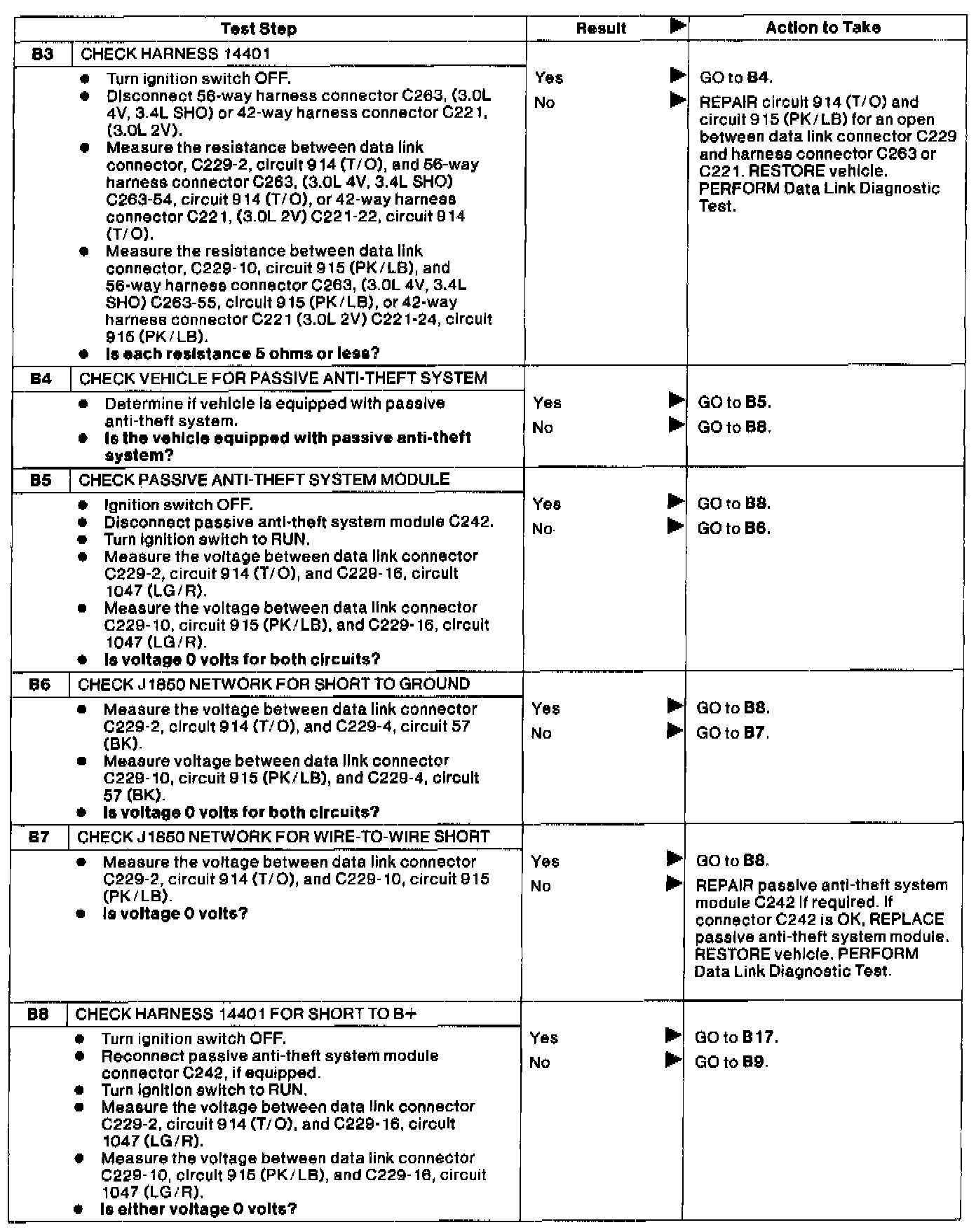

B3 - B8:

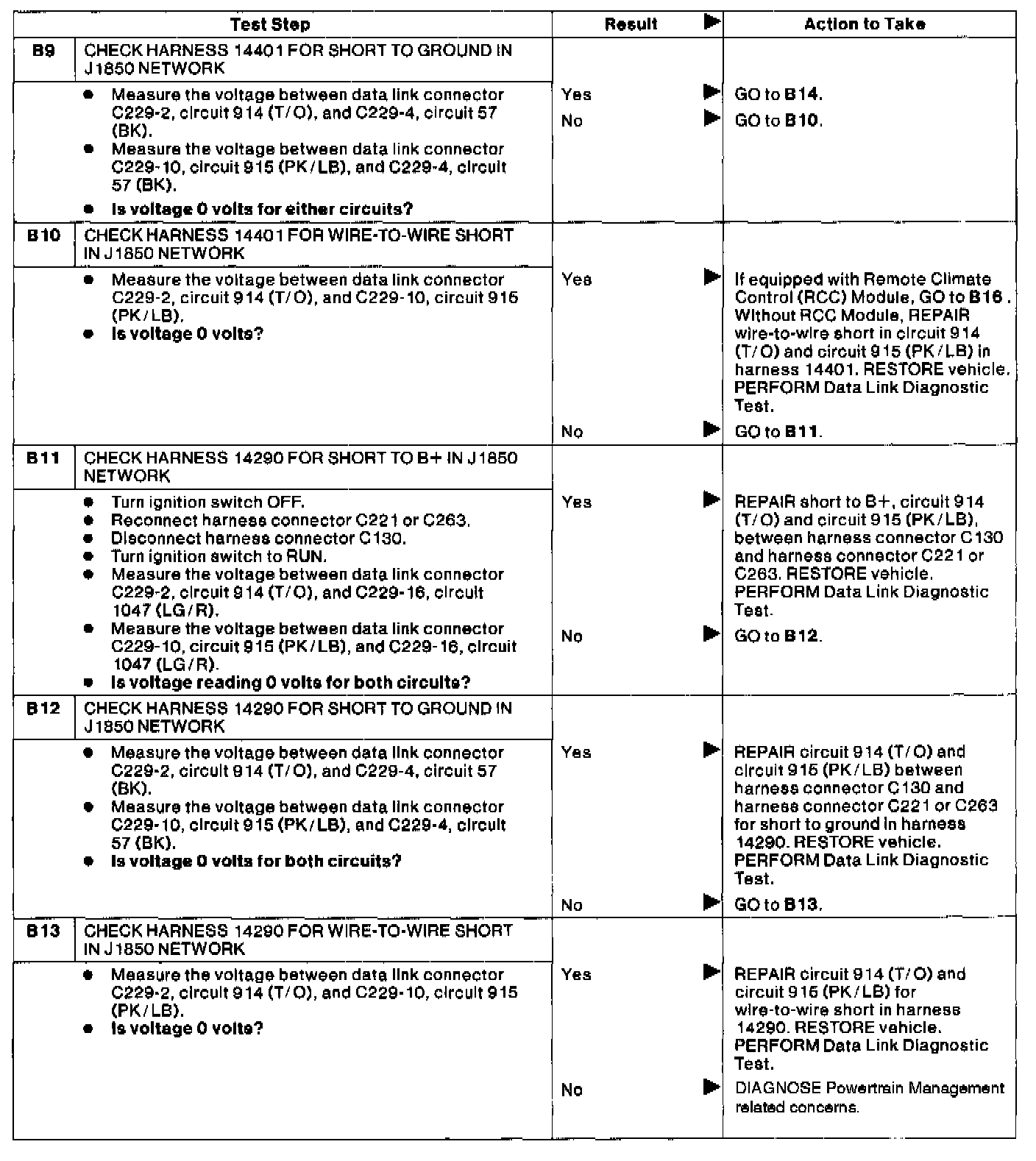

B9 - B13:

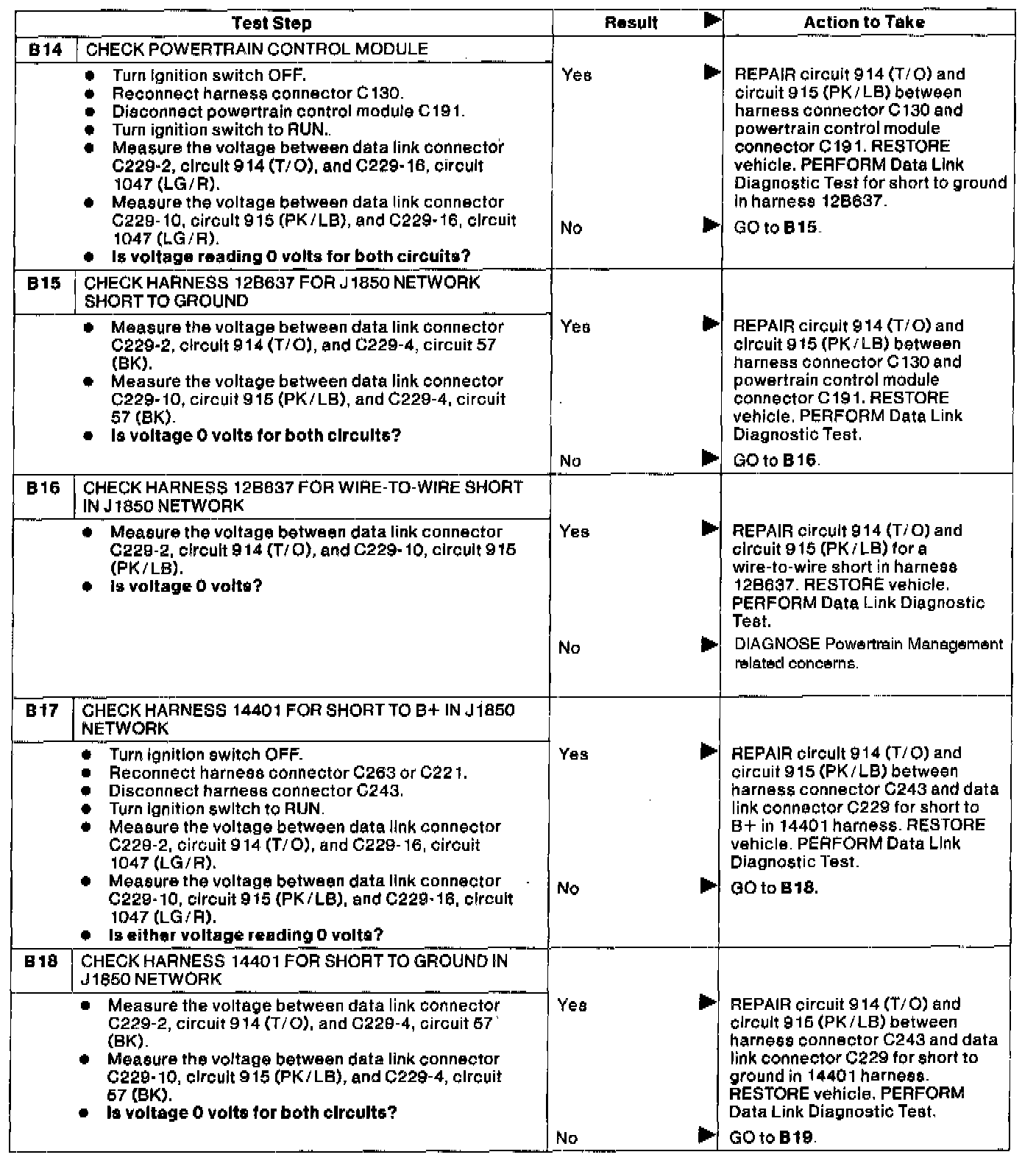

B14 - B18:

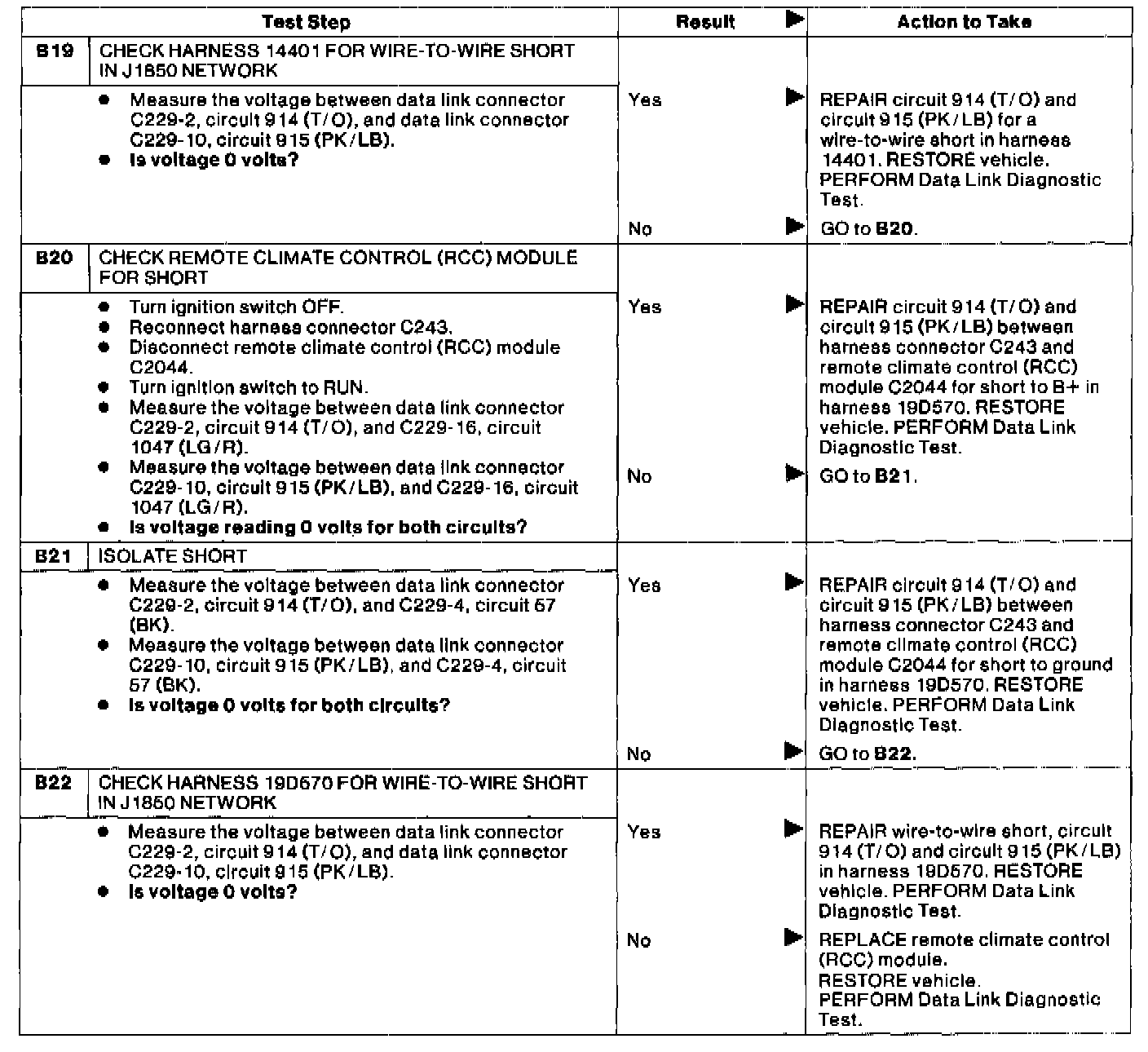

B19 - B22:
