Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Power and Ground Distribution >> Fuse Block >> Diagrams >> Connector Views

Connector Views

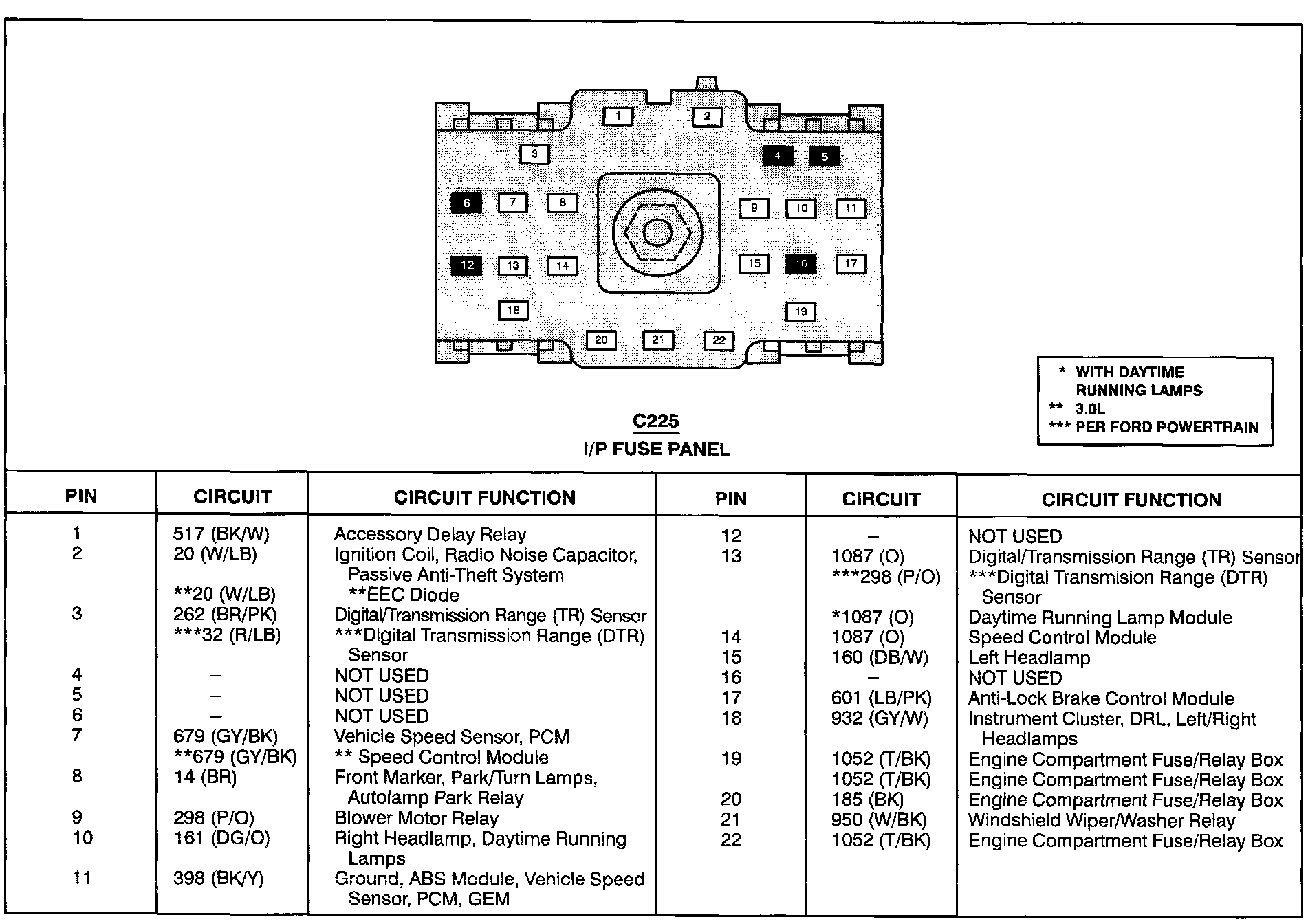

Instrument Panel Fuse Panel (C225):




Instrument Panel Fuse Panel (C235):

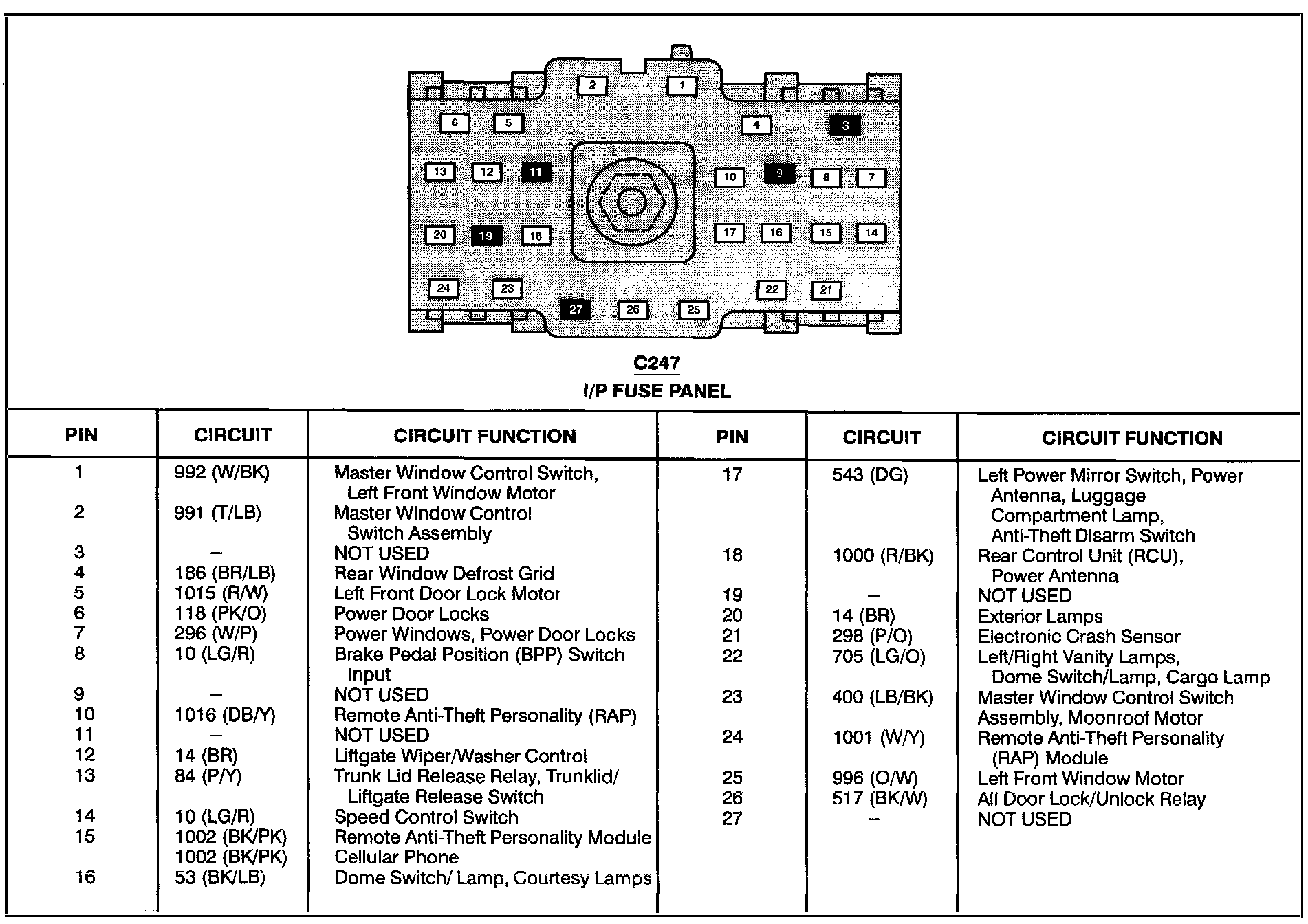

Instrument Panel Fuse Panel (C247):
