Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Test DA: Turn Signal/Hazard Flasher Lamps Inoperative

Test DA: Turn Signal/Hazard Flasher Lamps Inoperative

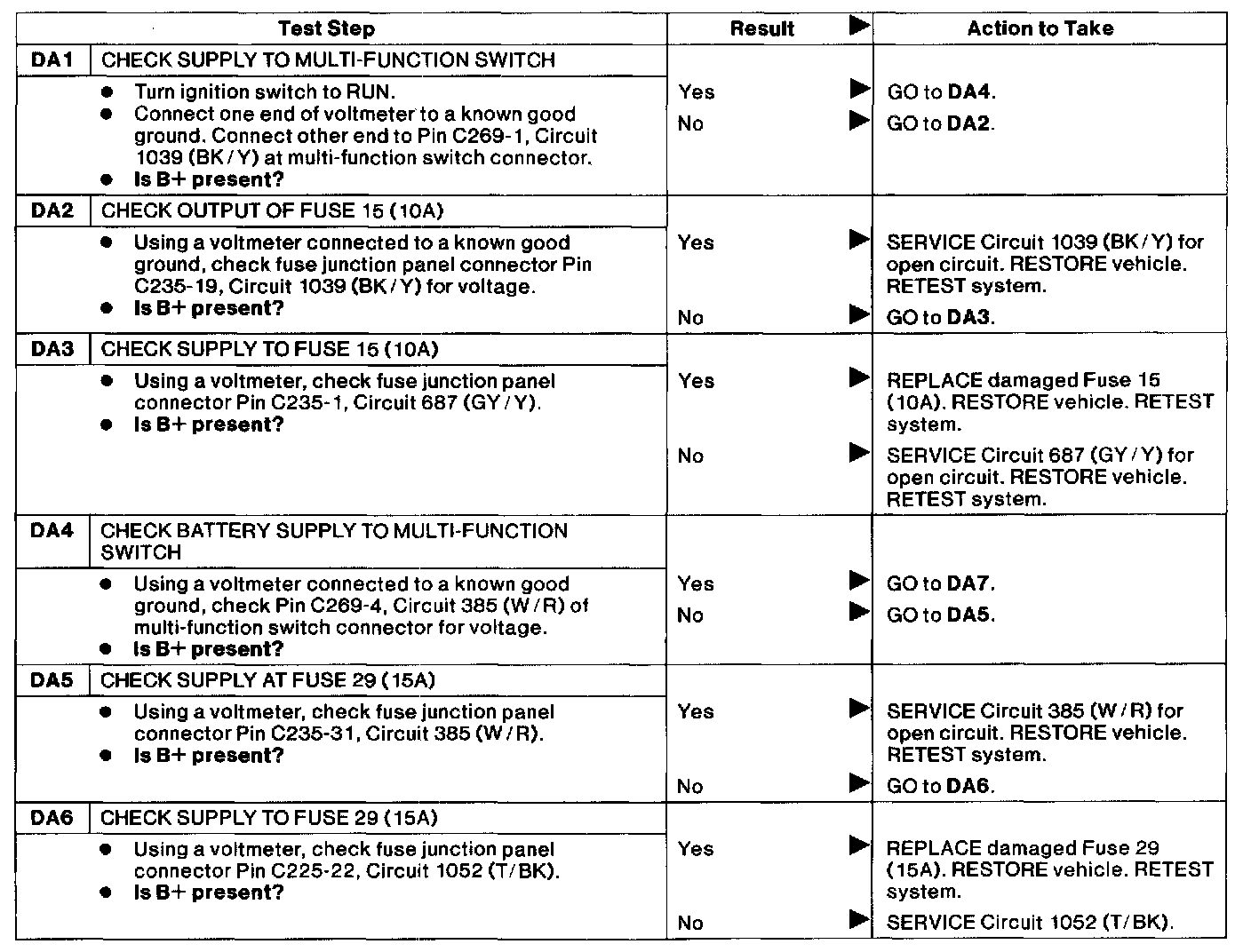

DA1-DA6:

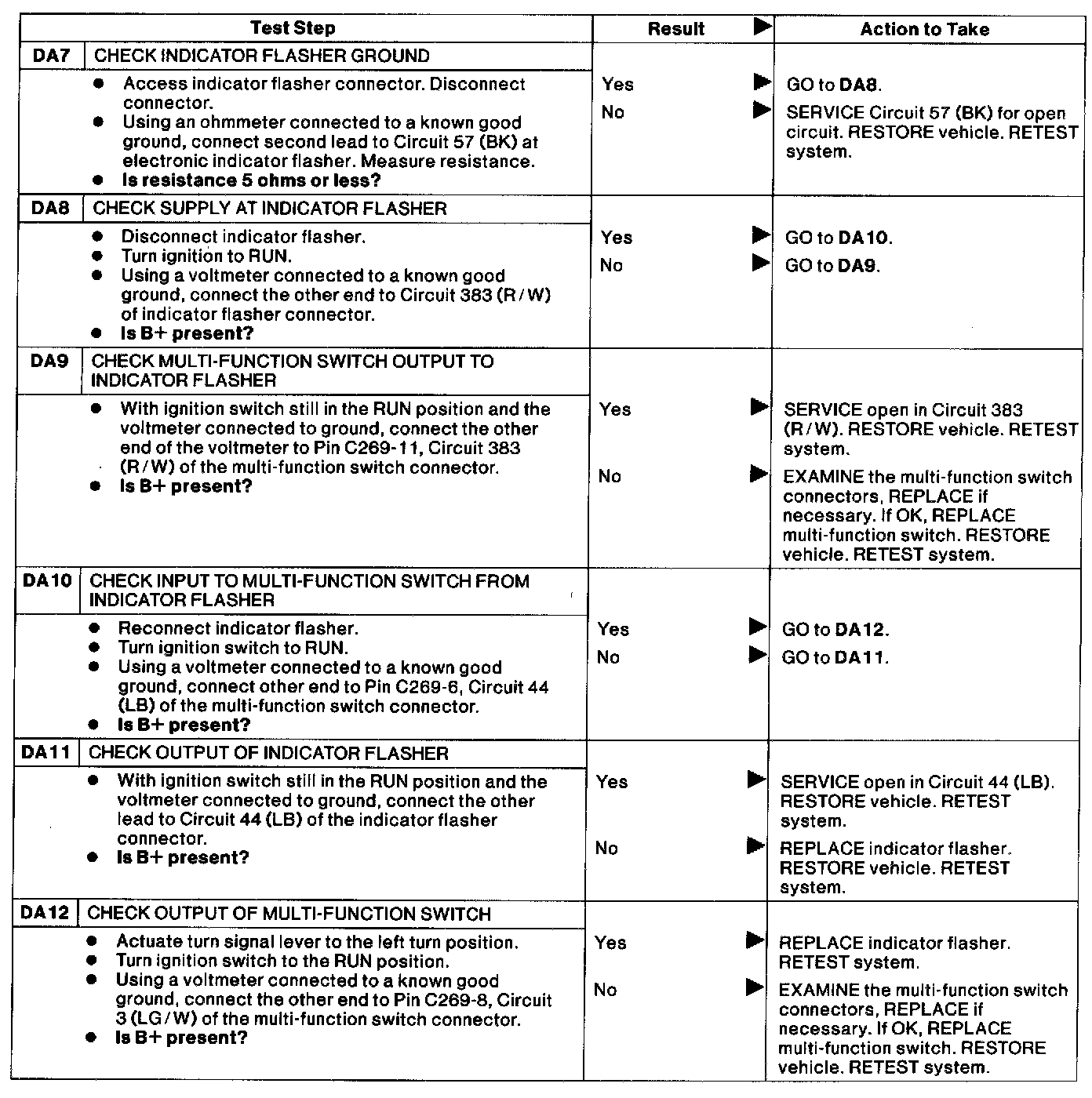

DA7-DA12:
