Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Lighting and Horns >> Relays and Modules - Lighting and Horns >> Daytime Running Lamp Control Unit >> Service and Repair >> Parking Brake Signal Switch

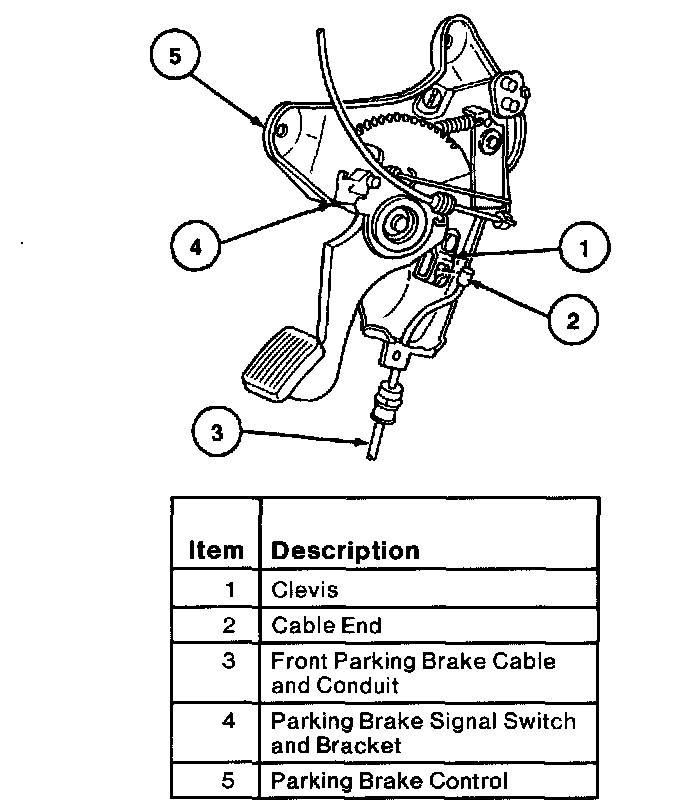

Parking Brake Signal Switch






REMOVAL
1. Disconnect parking brake signal switch electrical connector.
2. Remove screw and remove parking brake signal switch and bracket.

INSTALLATION
1. Follow removal procedure in reverse order.
