Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Testing and Inspection >> Pinpoint Tests >> F: Speedometer/Odometer Reads Inaccurately-Ex SHO

F: Speedometer/Odometer Reads Inaccurately-Ex SHO

F1 - F3:

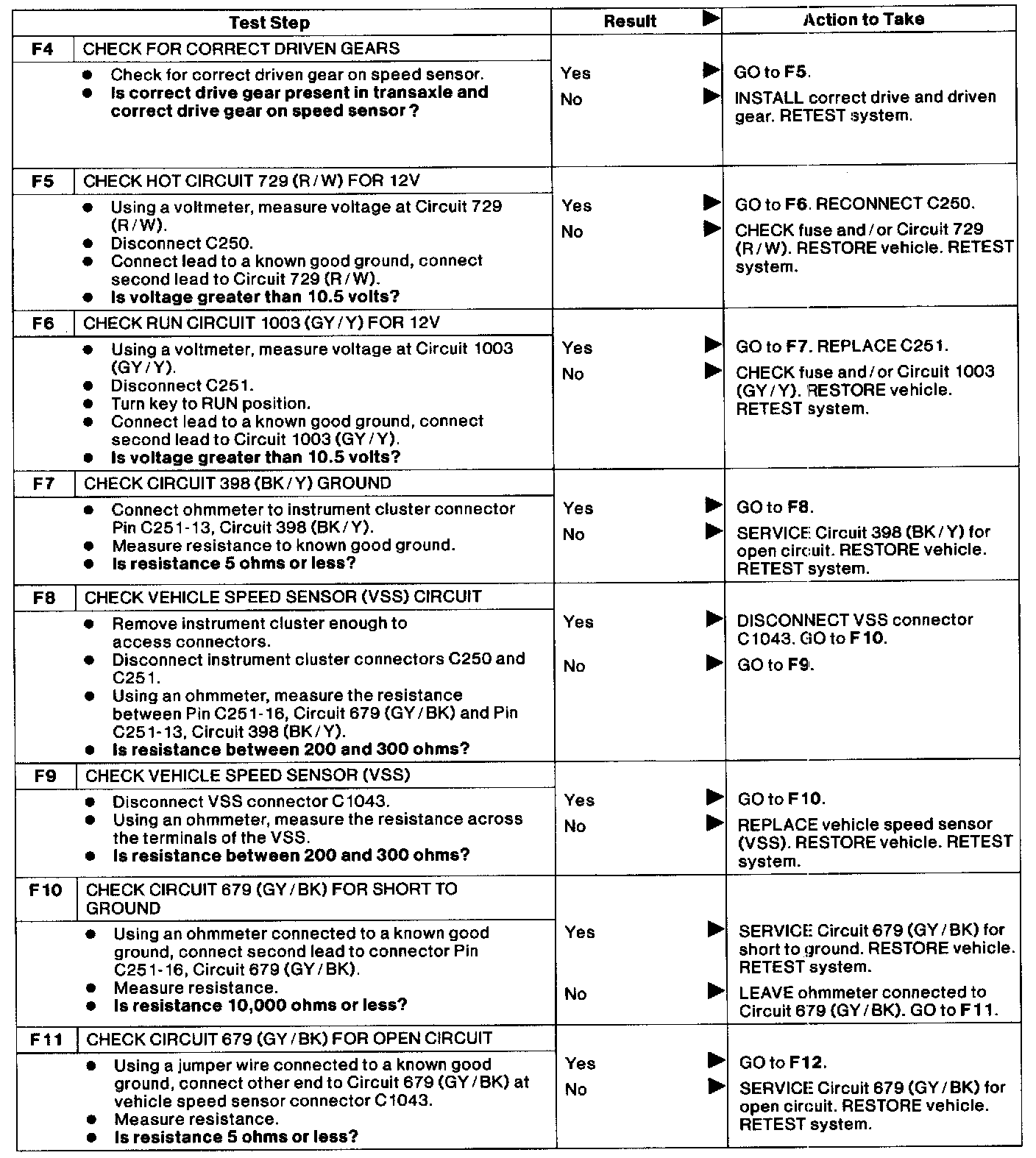

F4 - F11:

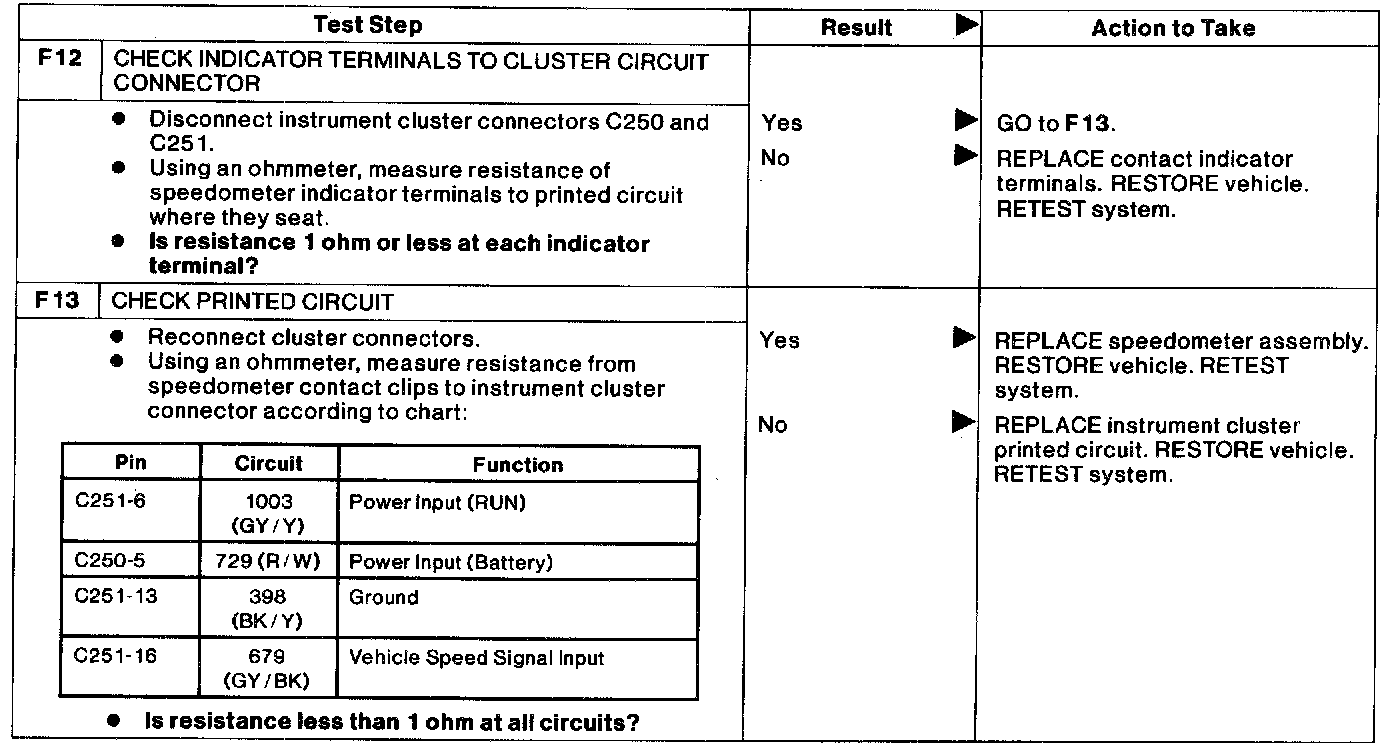

F12 - F13:
