Pollen Filter

REMOVAL
1. From inside vehicle, release hood.

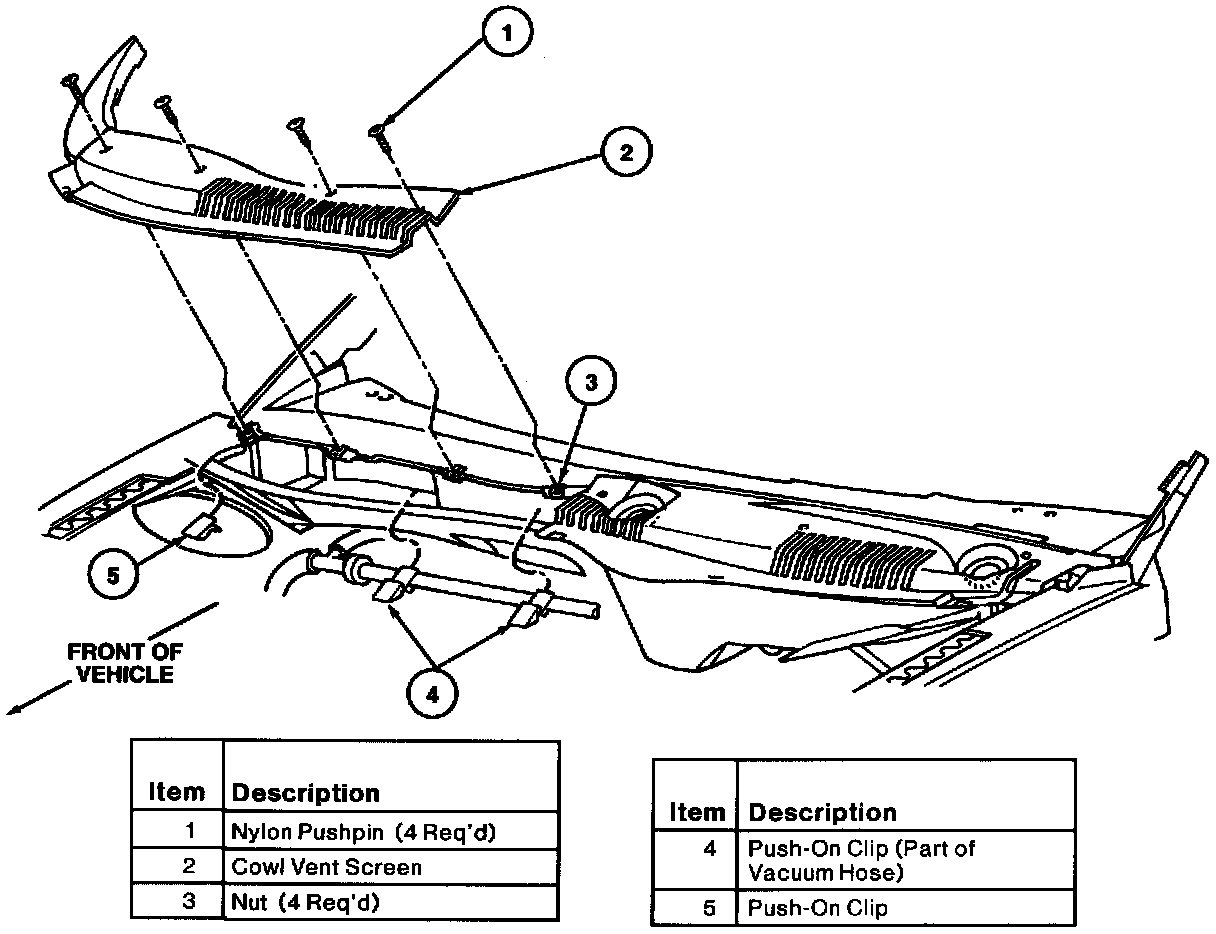

2. Remove four quarter turn nylon push pins retaining RH cowl vent screen.

NOTE: Rotate nylon push pins 90 degrees to disengage.







3. Remove push-on clips retaining RH cowl vent screen and remove RH cowl vent screen from vehicle.







4. Remove two screws and remove cowl top inner panel shield from vehicle.







5. Remove filter from housing.

INSTALLATION
1. Install pollen filter into housing.

NOTE: Pollen filter must be properly positioned in housing.

2. Install cowl top inner panel shield with two retaining screws. Tighten screws to 1.1-1.5 N.m (10-13 Lb-In).
3. Install RH cowl vent screen.
4. Install quarter turn nylon push pins and push-on clips to RH cowl vent screen.
5. Close hood.
