Exhaust Vent

REMOVAL
1. Remove rear bumper cover.

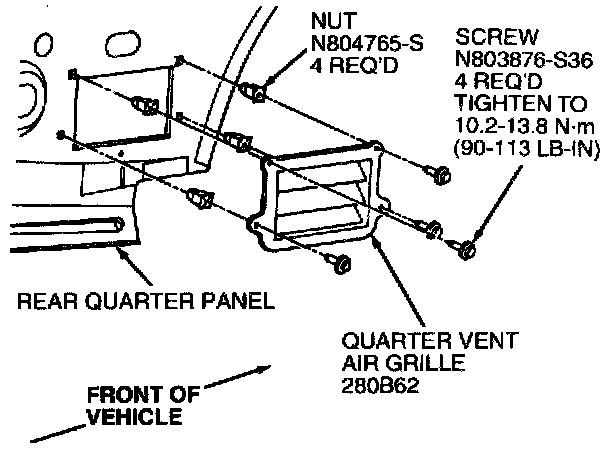

2. Remove four screws retaining quarter vent air grille to rear quarter panel and remove quarter vent air grille.







INSTALLATION
1. Follow removal procedure in reverse order.
2. Tighten retaining screws to 10.2-12.8 N.m (90-113 Lb-In).
