Pin Bore Diameter

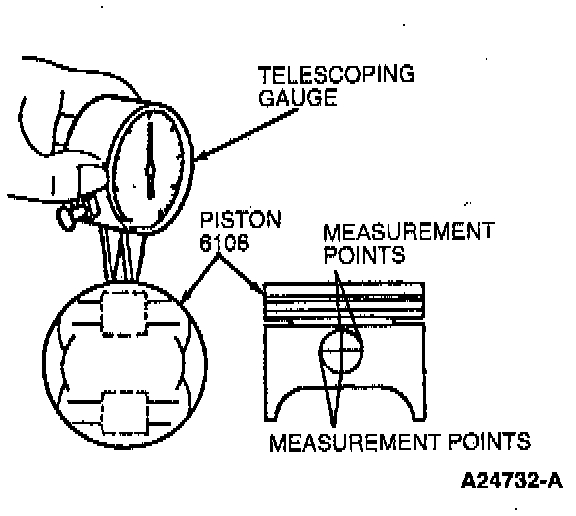

Measure each piston pin hole diameter at the four points shown.

Replace piston that is not within specifications.
