Valve, Flat - Tappet Wear
Valve, Flat - Tappet Wear

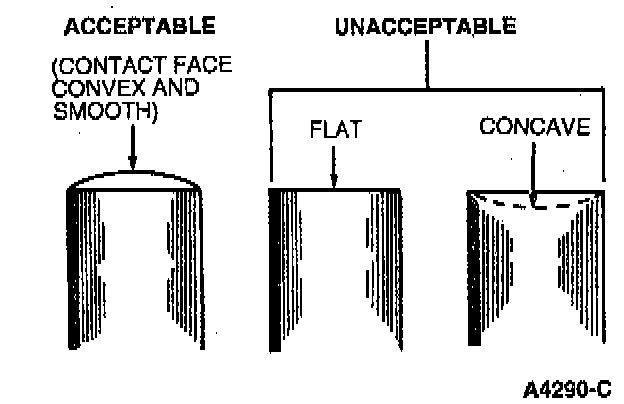

Inspect flat valve tappet for flat or concave spots or scoring. If contact face is not convex and smooth check
camshaft
lobes for proper height or wear. Replace as required.
