FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
1998
>>
Sable V6-3.0L DOHC VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>
Valve Body, A/T
Valve Body, A/T

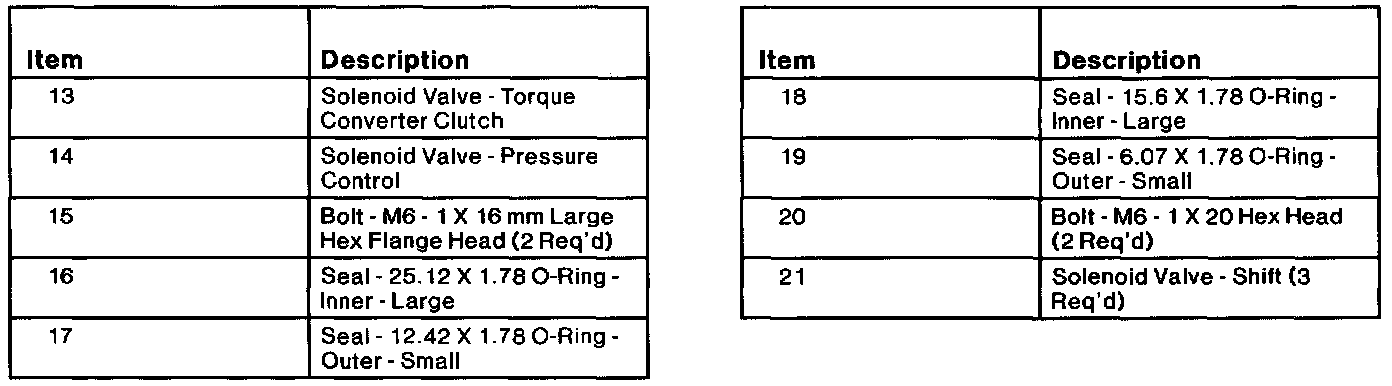

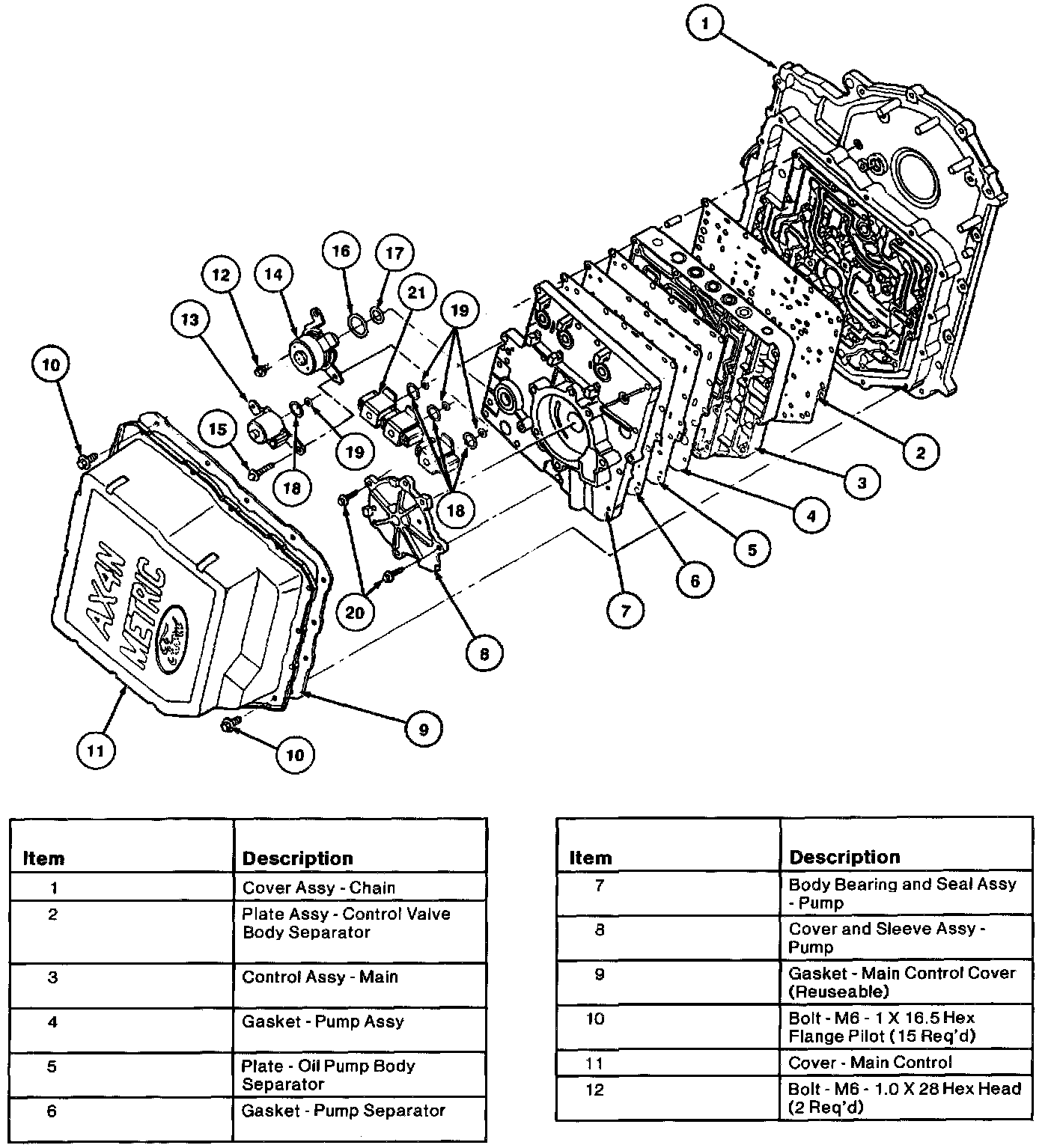

Main Control Components, Part 1 Of 2:
Main Control Components, Part 2 Of 2:

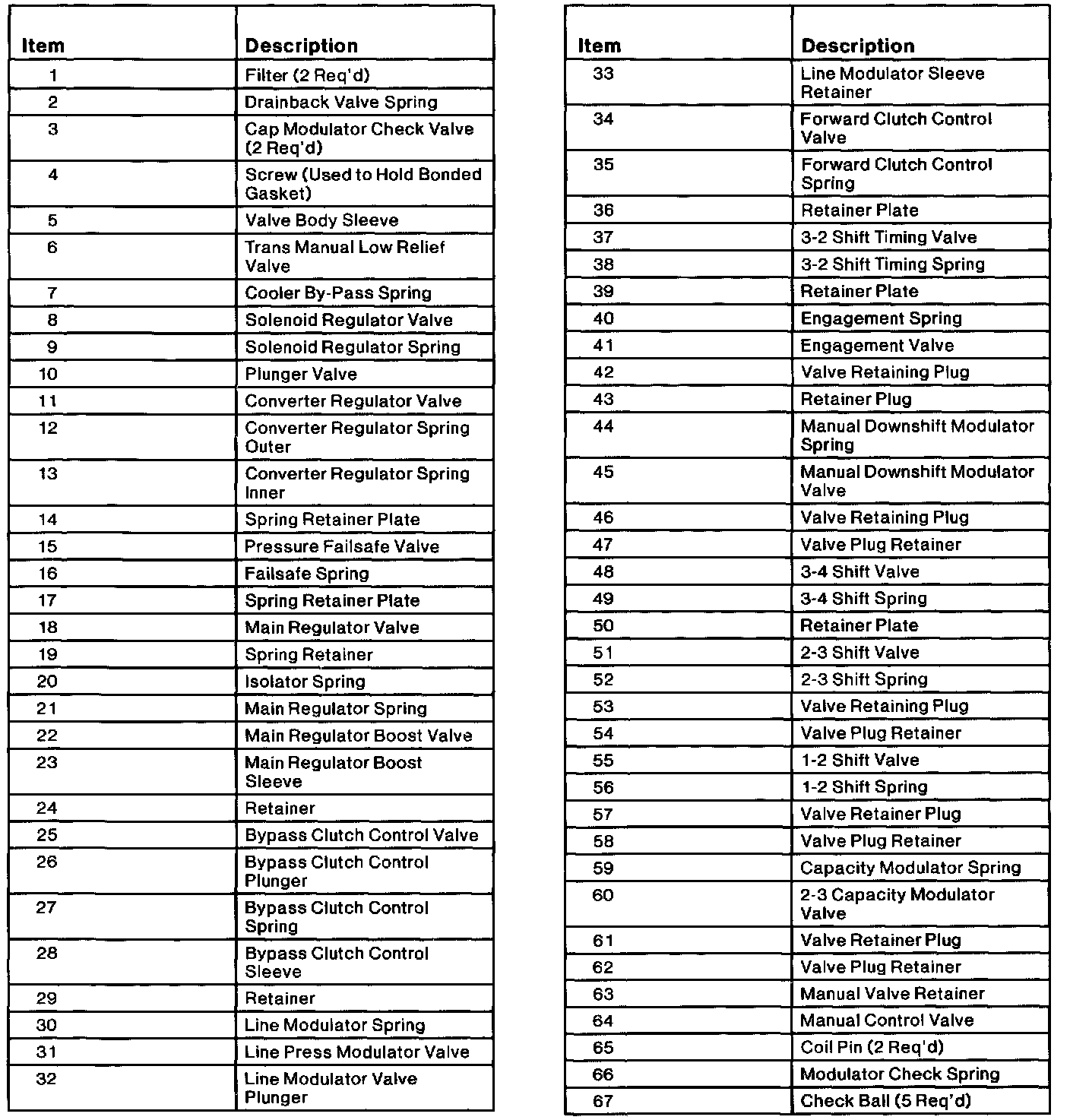

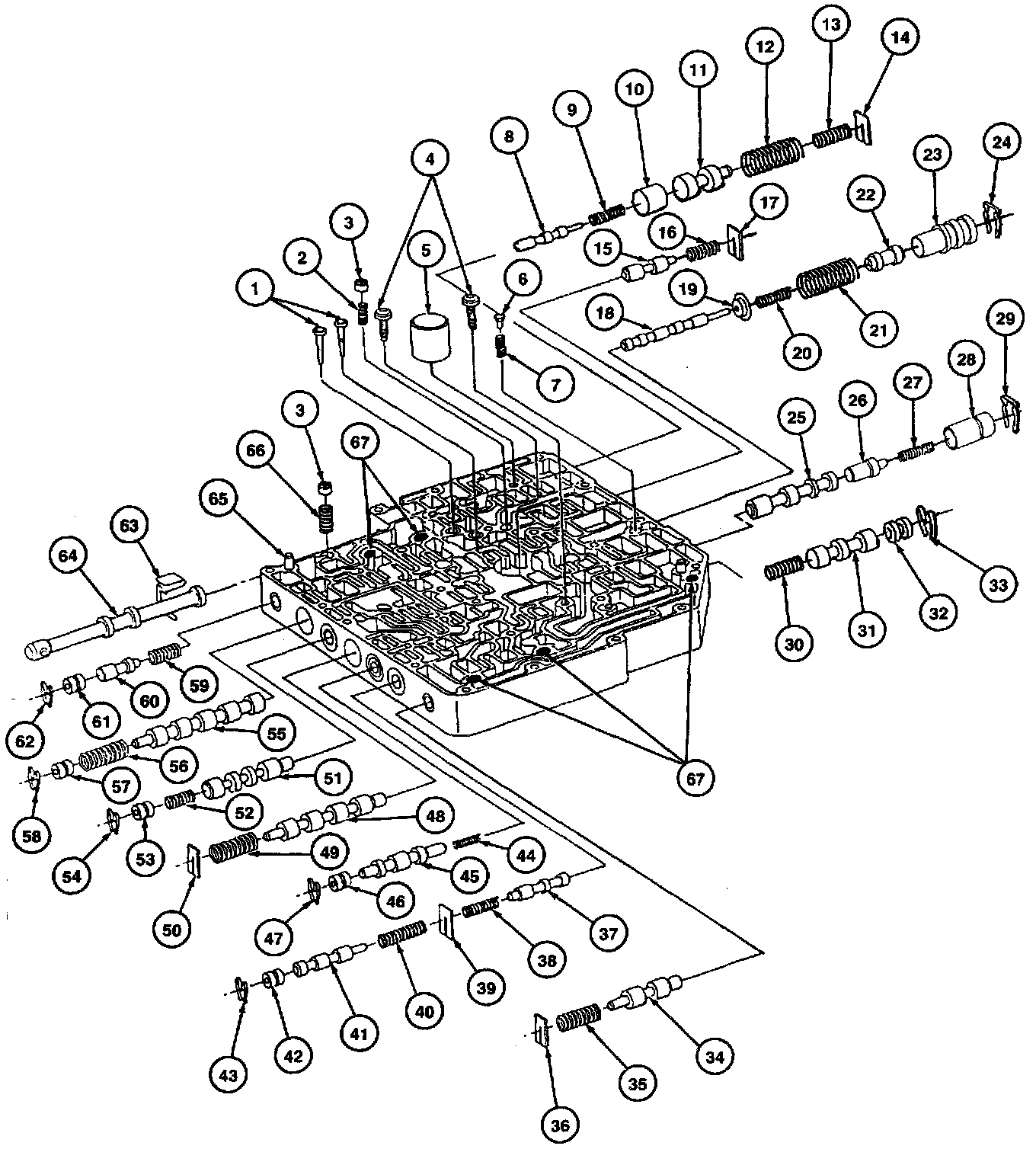

Main Control Valves, Part 1 Of 2:
Main Control Valve, Part 2 Of 2:
