Fuse 22

Fuse 22 - protects the following circuits:
^ Power Mirrors
^ Antenna
^ Decklid Lamps
^ Autolamp

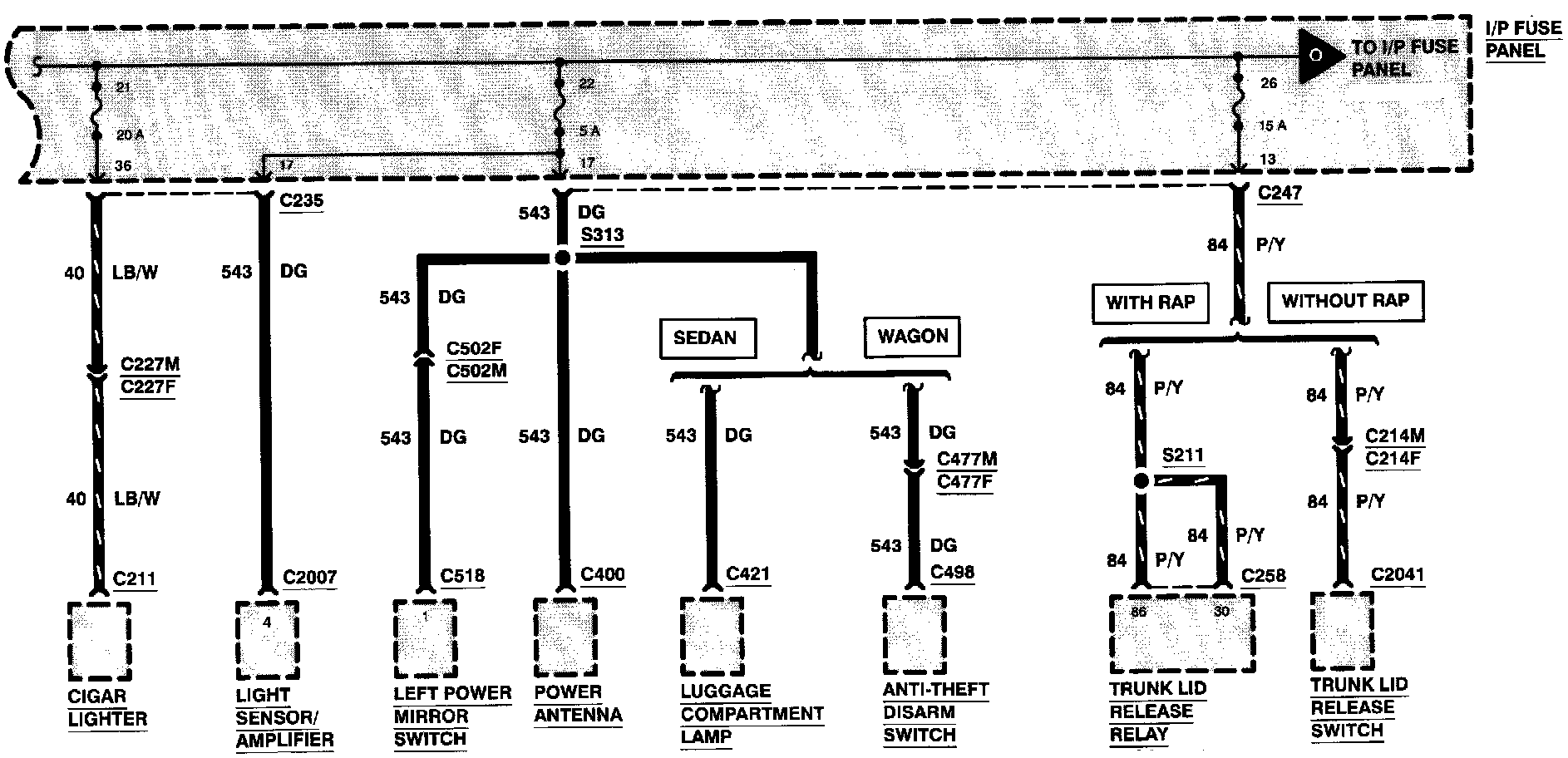

Power Distribution:
