Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Power Distribution >> Instrument Panel Fuse Panel >> Fuse 14

Fuse 14

Fuse 14 - protects the following circuits:
^ Air Suspension

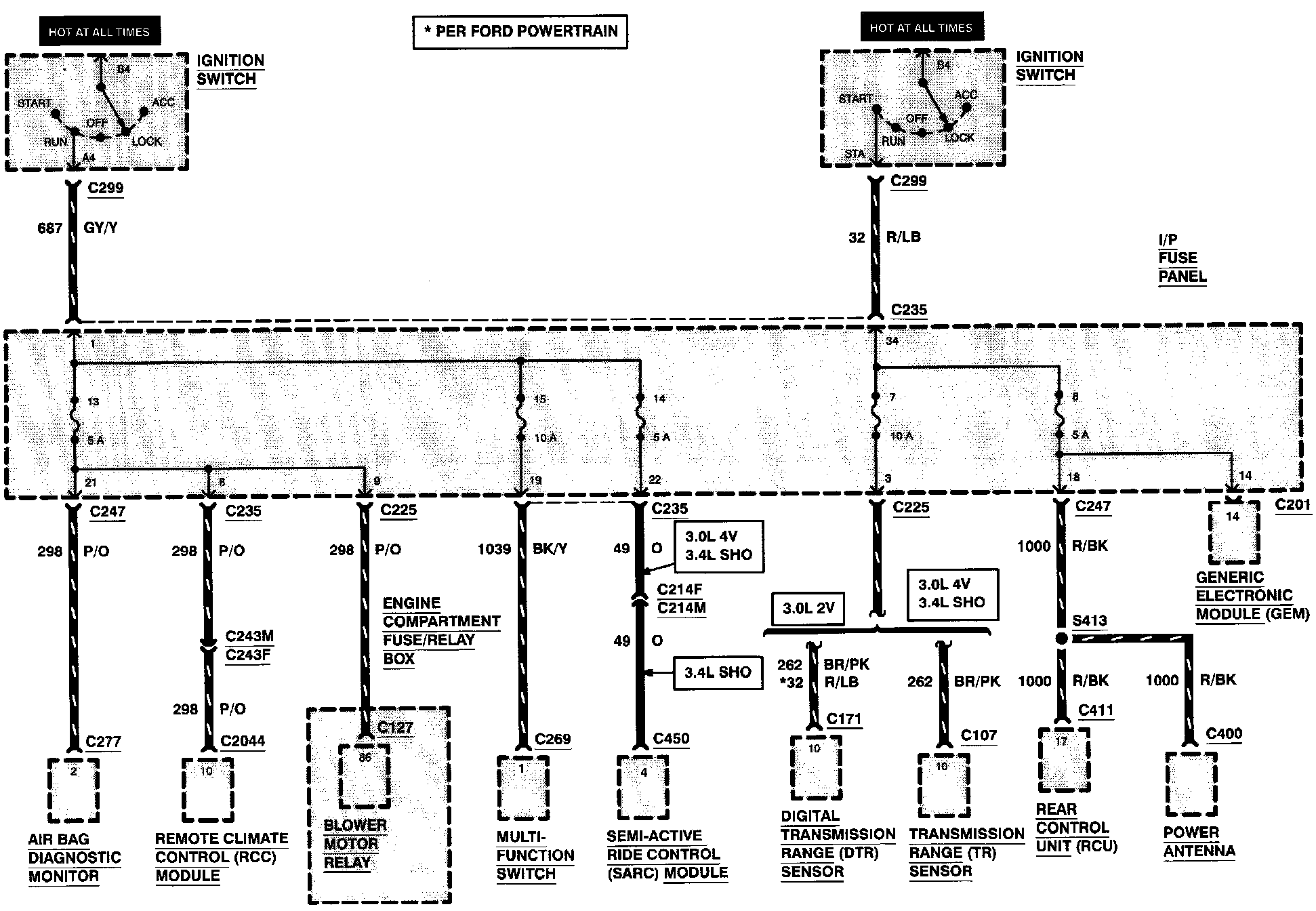

Power Distribution:
