Fuse 10

Fuse 10 - protects the following circuits:
- PCM Relay
- Ignition Coil
- Passive Anti-Theft System
- Radio

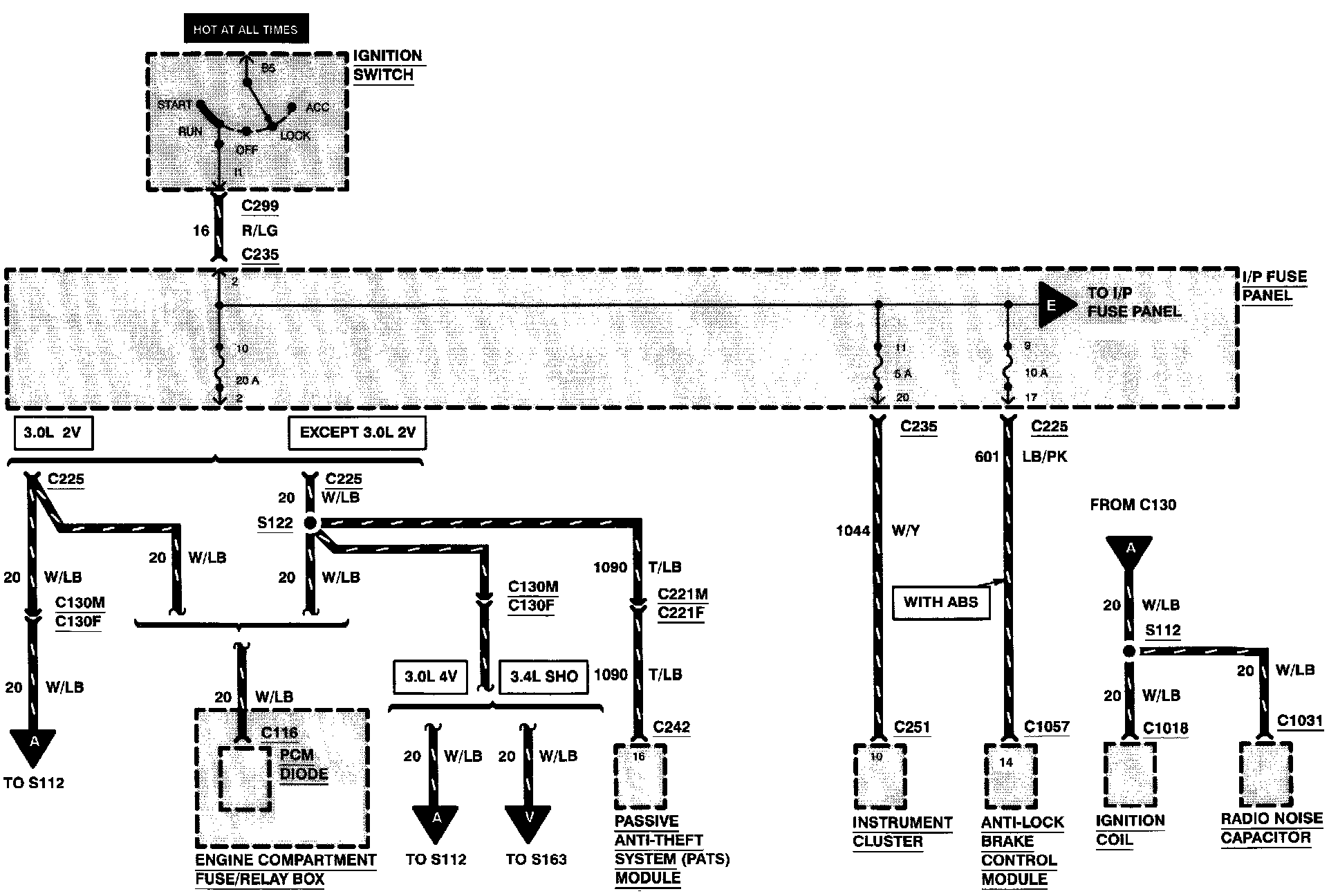

Power Distribution:
