Instrument Panel Illumination
Instrument Panel Illumination

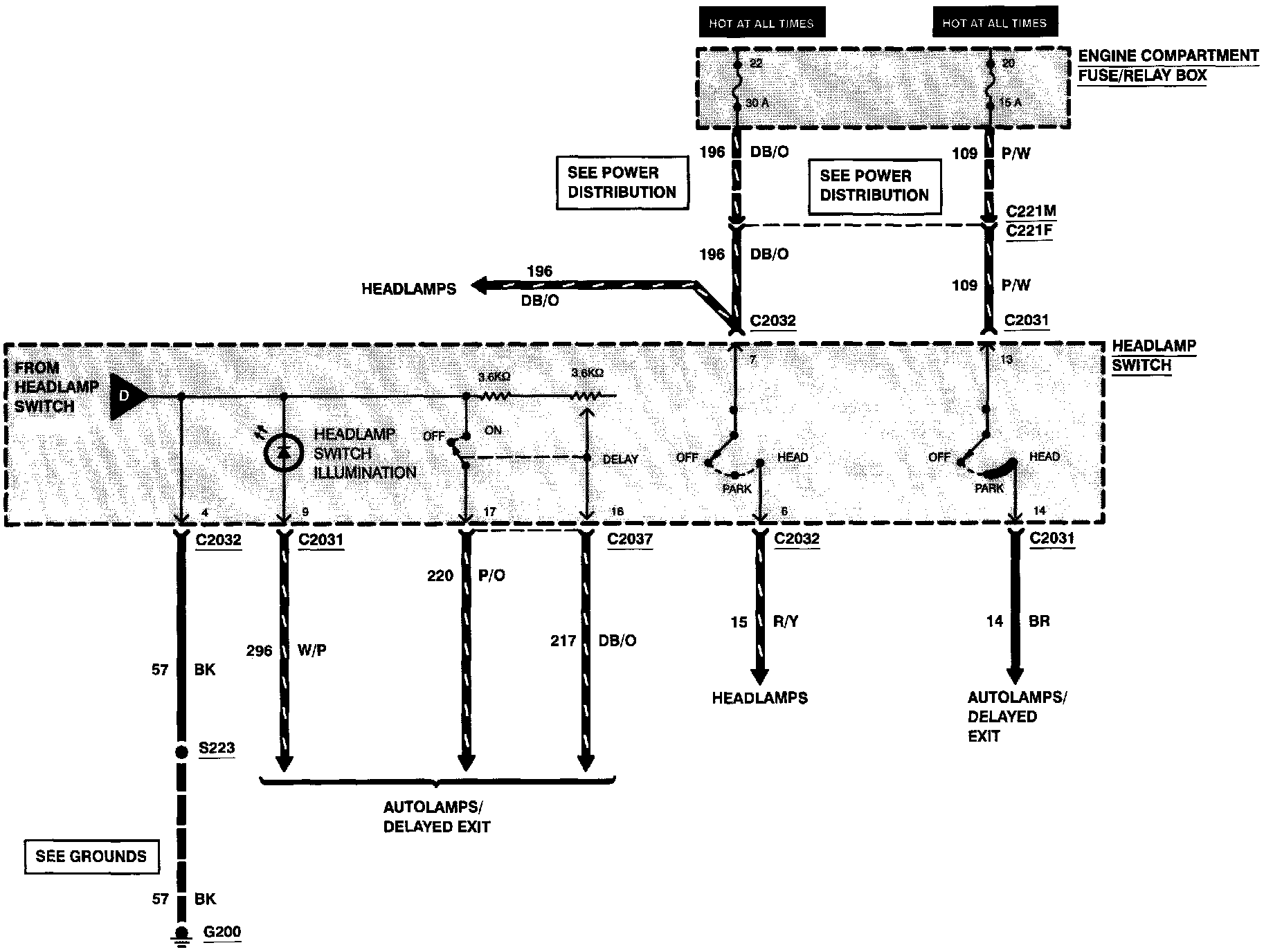

Instrument Illumination (Part 1 Of 4):

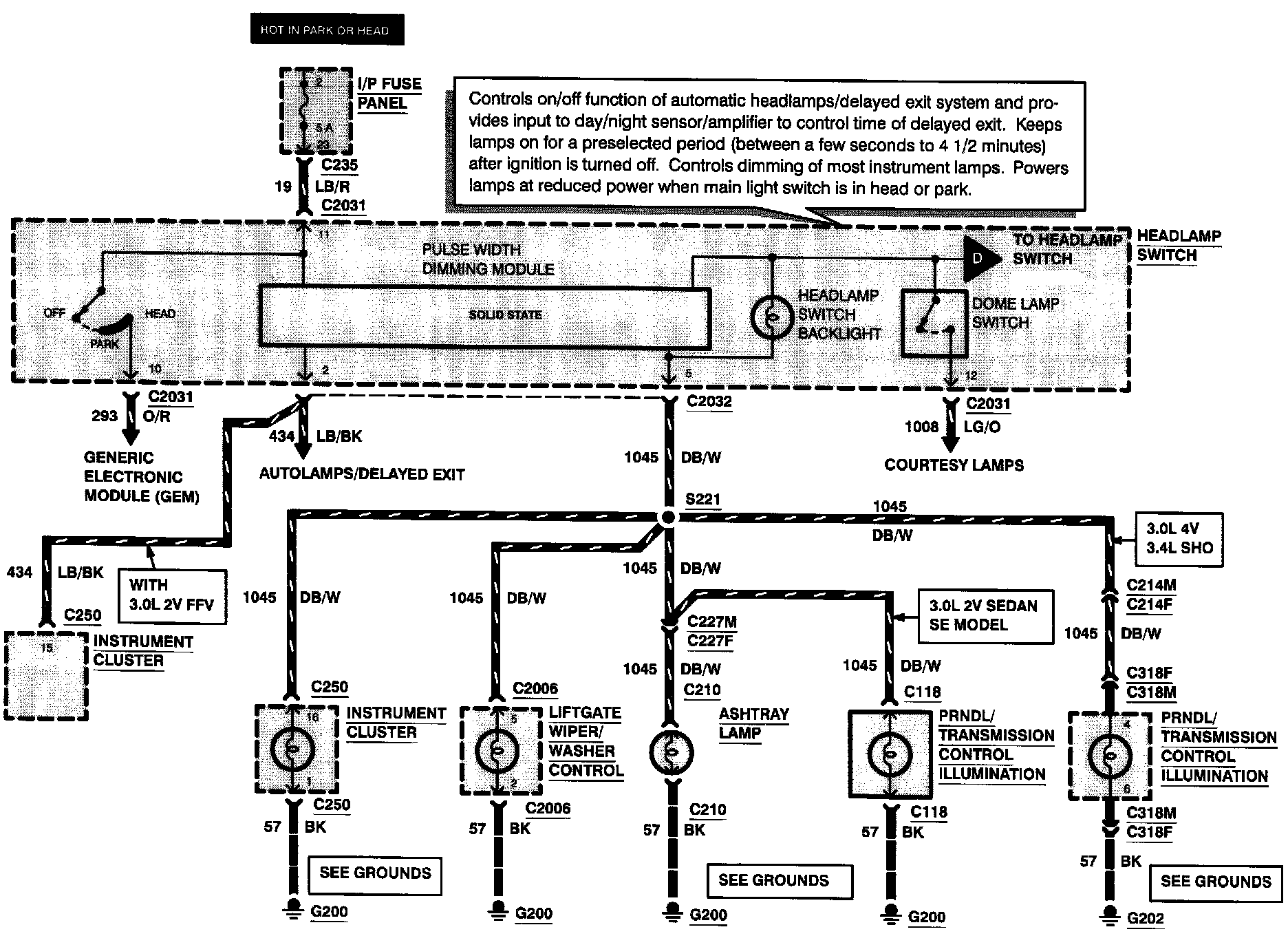

Instrument Illumination (Part 2 Of 4):

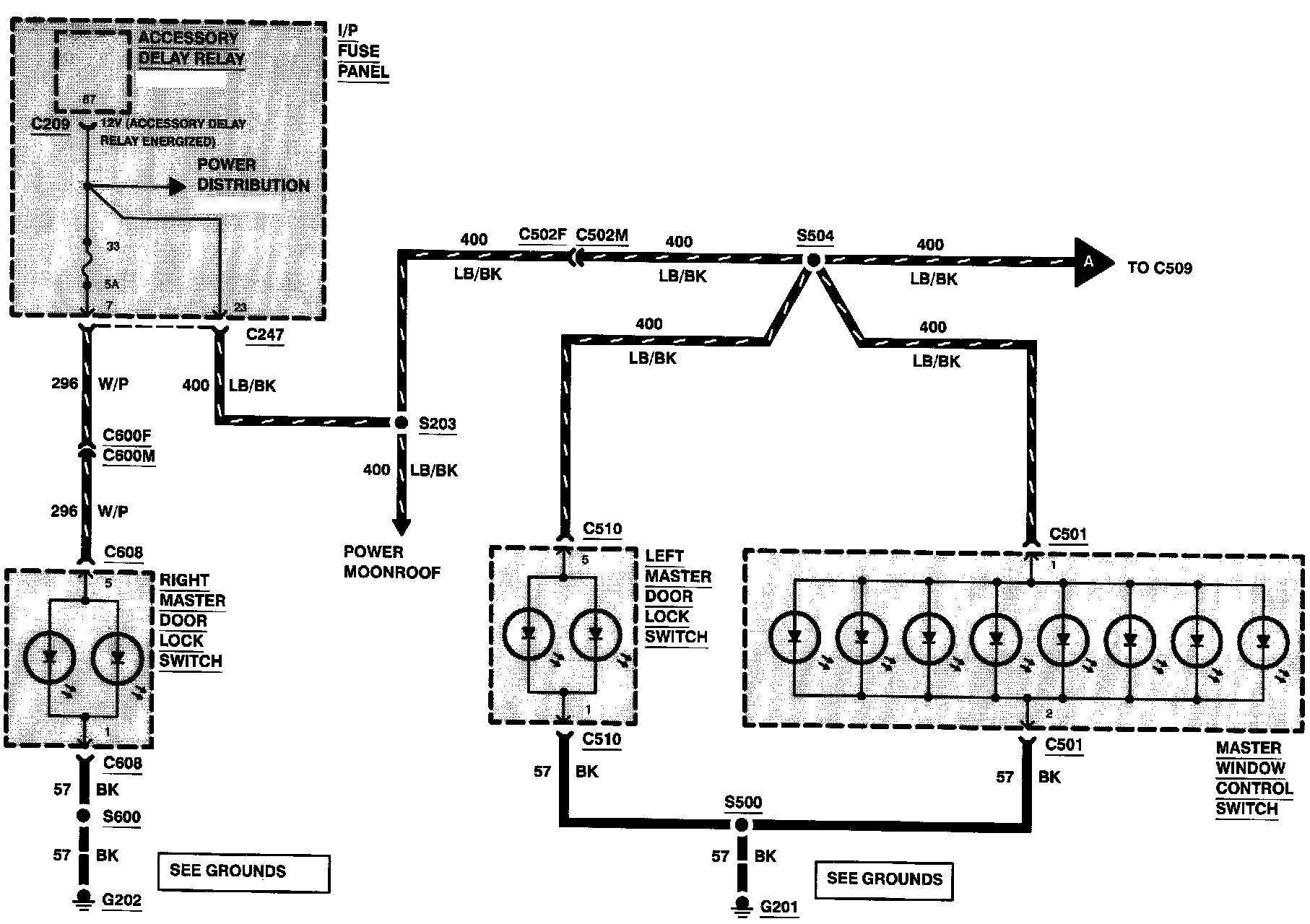

Instrument Illumination (Part 3 Of 4):

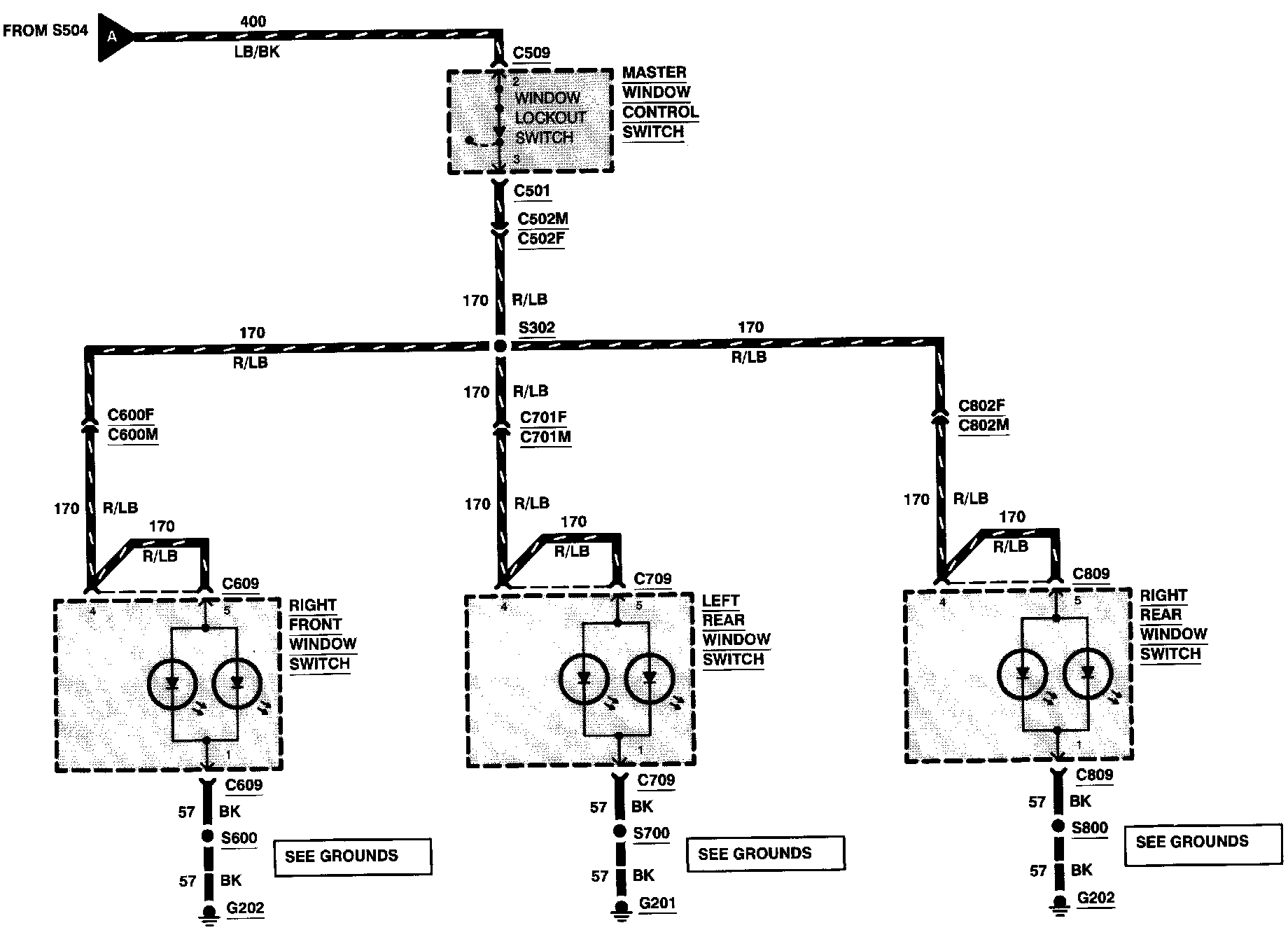

Instrument Illumination (Part 4 Of 4):
