Home >> Mercury >> 1998 >> Sable V6-3.0L DOHC VIN S >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> F Ignition Power to Indicator

F Ignition Power to Indicator

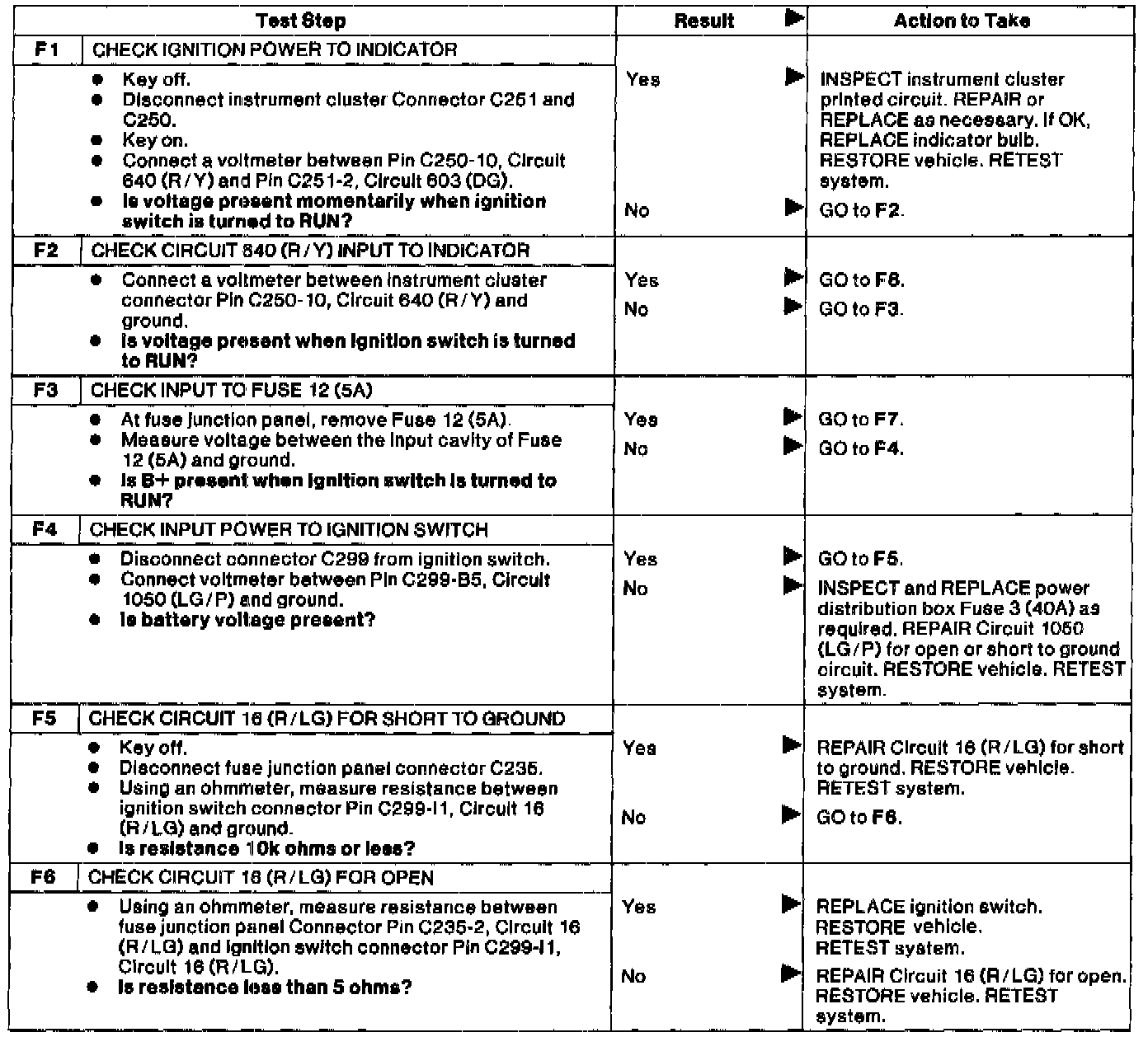

F1 - F6:

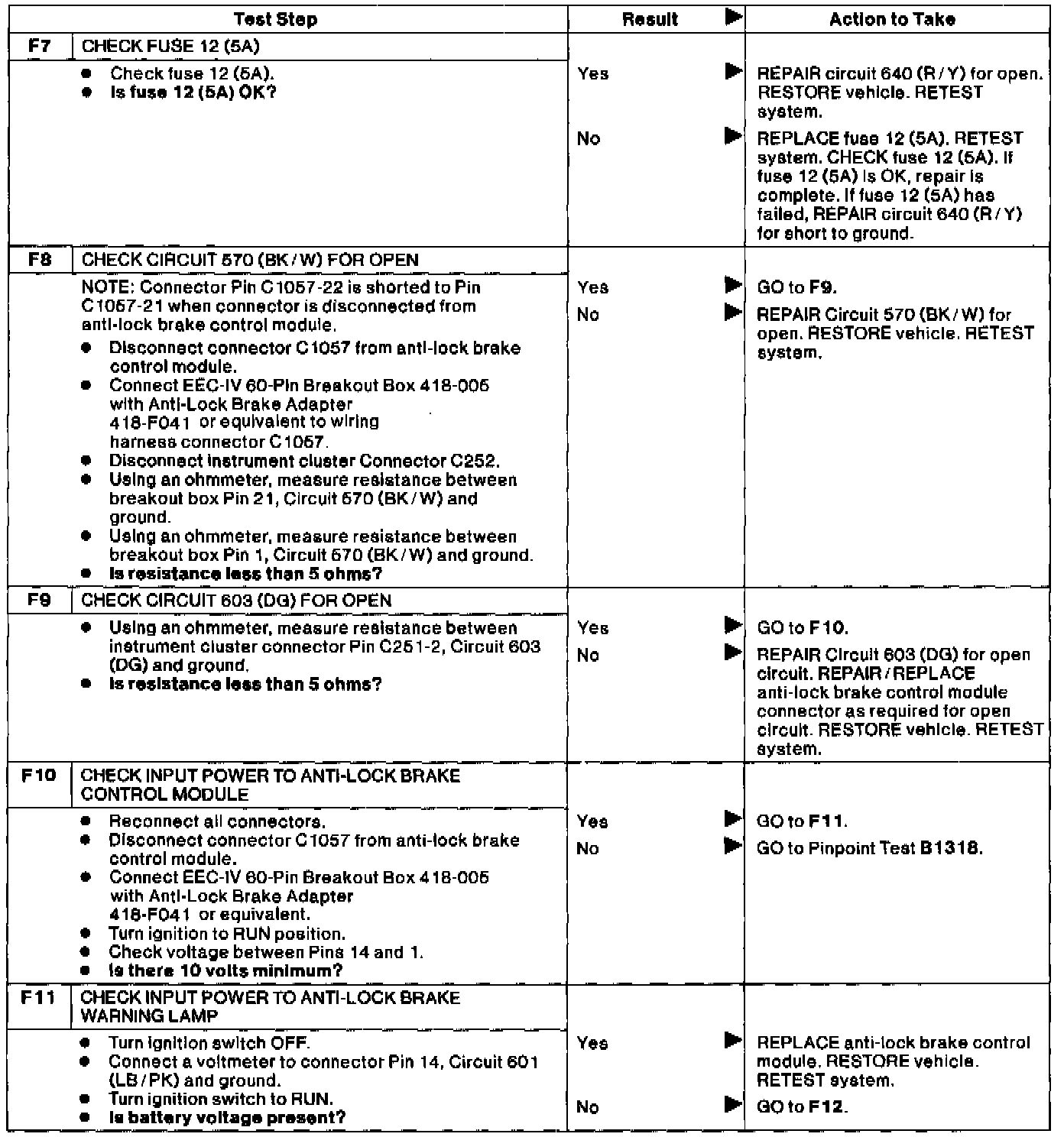

F7 - F11:

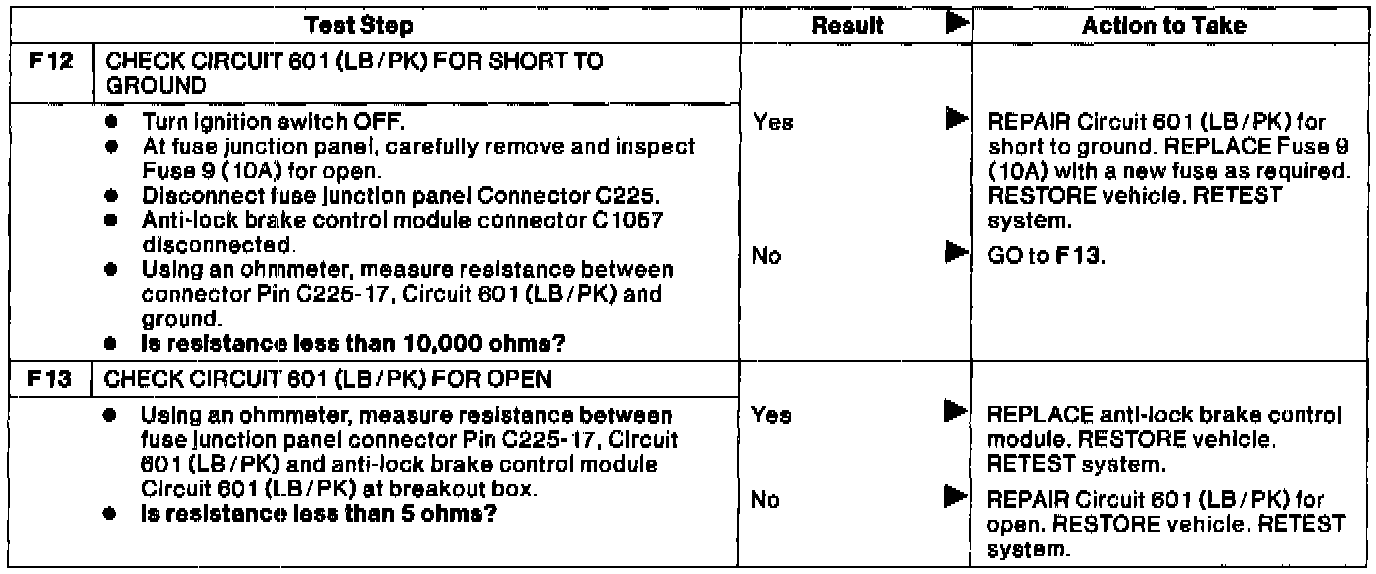

F12 - F13:
