AX4S 4-SPD A/T

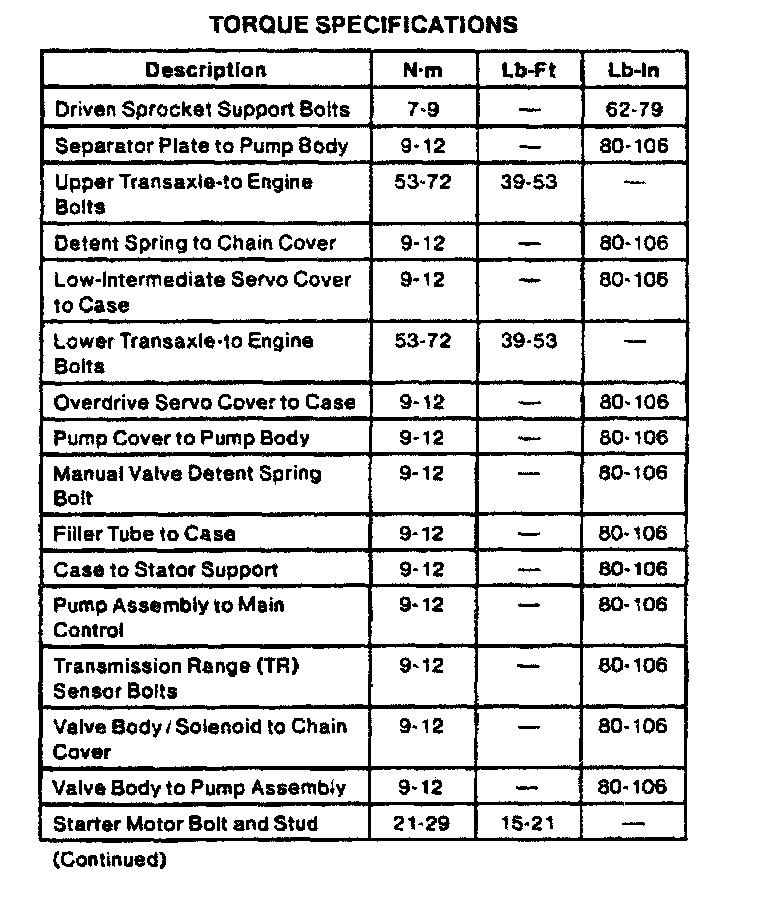

AX4S 4-spd A/T, Transaxle Torque (Taurus/Sable):

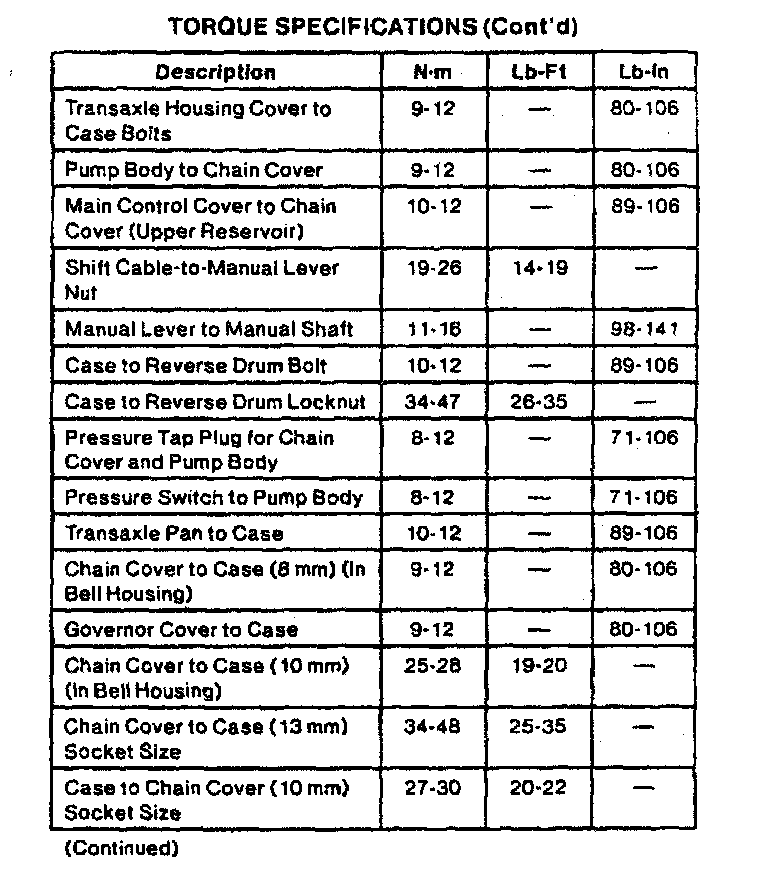

AX4S 4-spd A/T, Transaxle Cont. (Taurus/Sable):

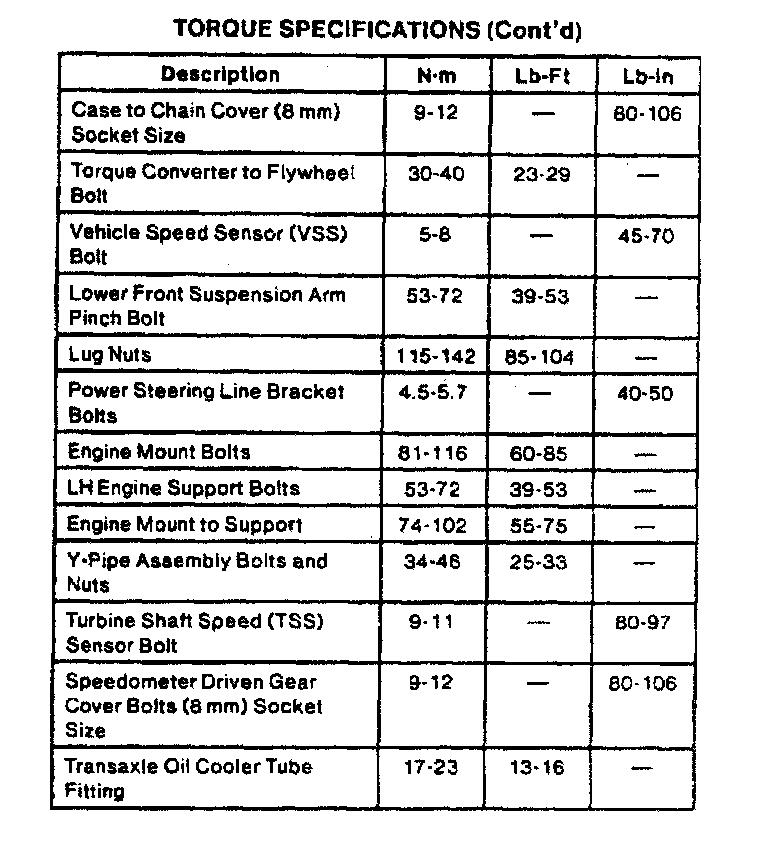

AX4S 4-spd A/T, Transaxle Cont. (Taurus/Sable):

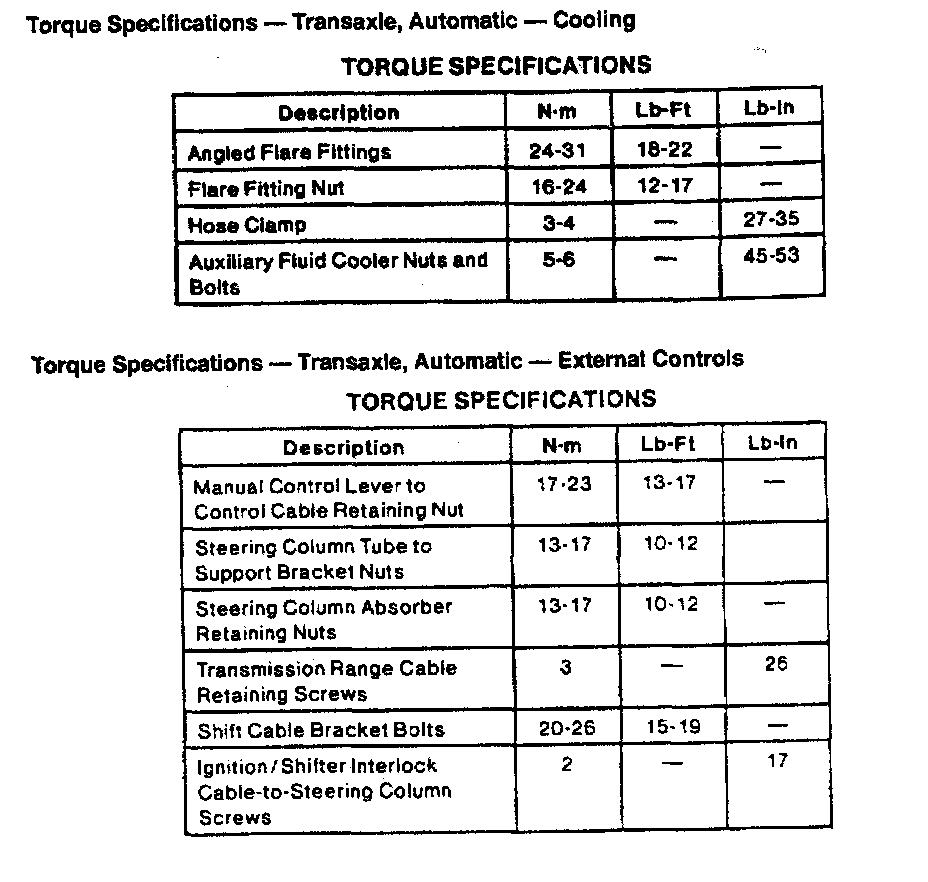

AX4S 4-spd A/T, Cooling/External Controls (Taurus/Sable):
