Component Testing

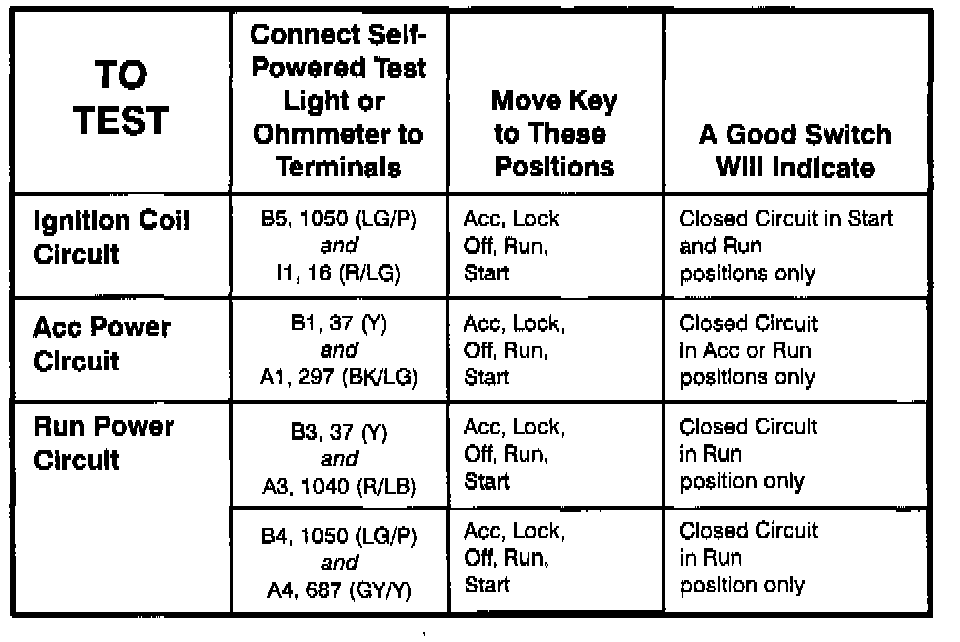

Ignition Switch - Component Testing Procedure (Part 1 Of 2):

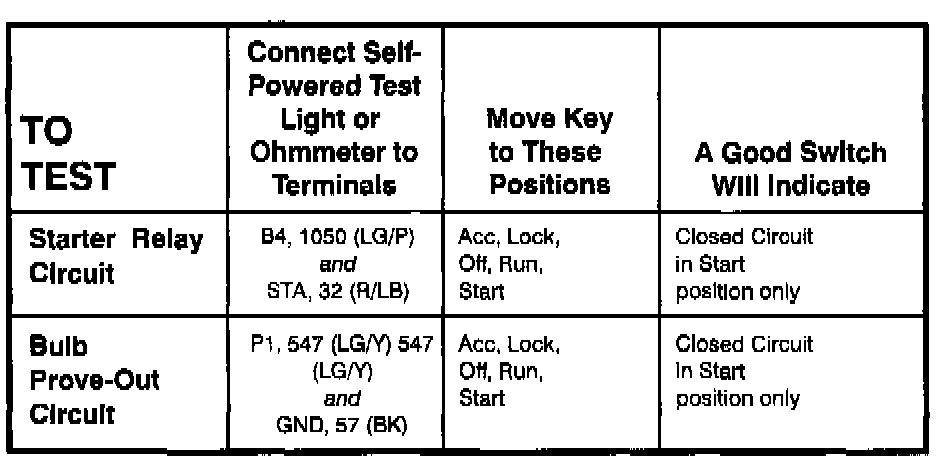

Ignition Switch - Component Testing Procedure (Part 2 Of 2):

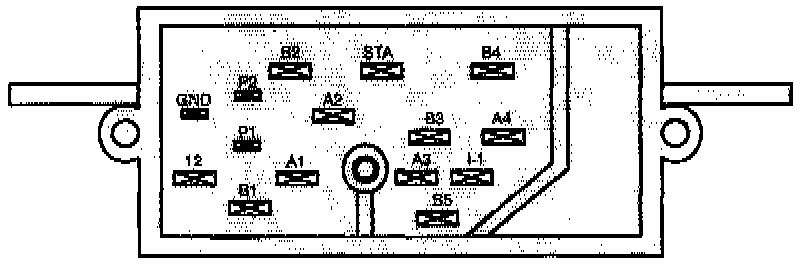

Ignition Switch - Terminal Locations:




Ignition Switch - Schematic:
