Home >> Mercury >> 1998 >> Sable V6-183 3.0L VIN U FI >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Ignition System >> Ignition Switch >> Testing and Inspection >> Pinpoint Tests >> Test D: No Power In START Position

Test D: No Power In START Position

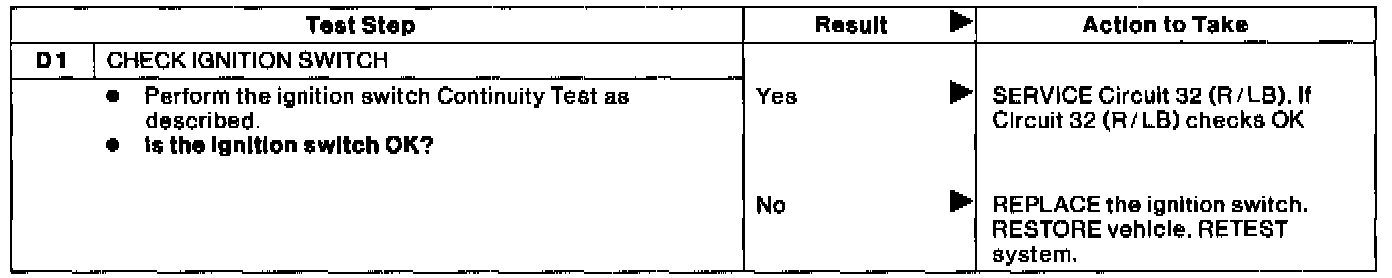

D1:
