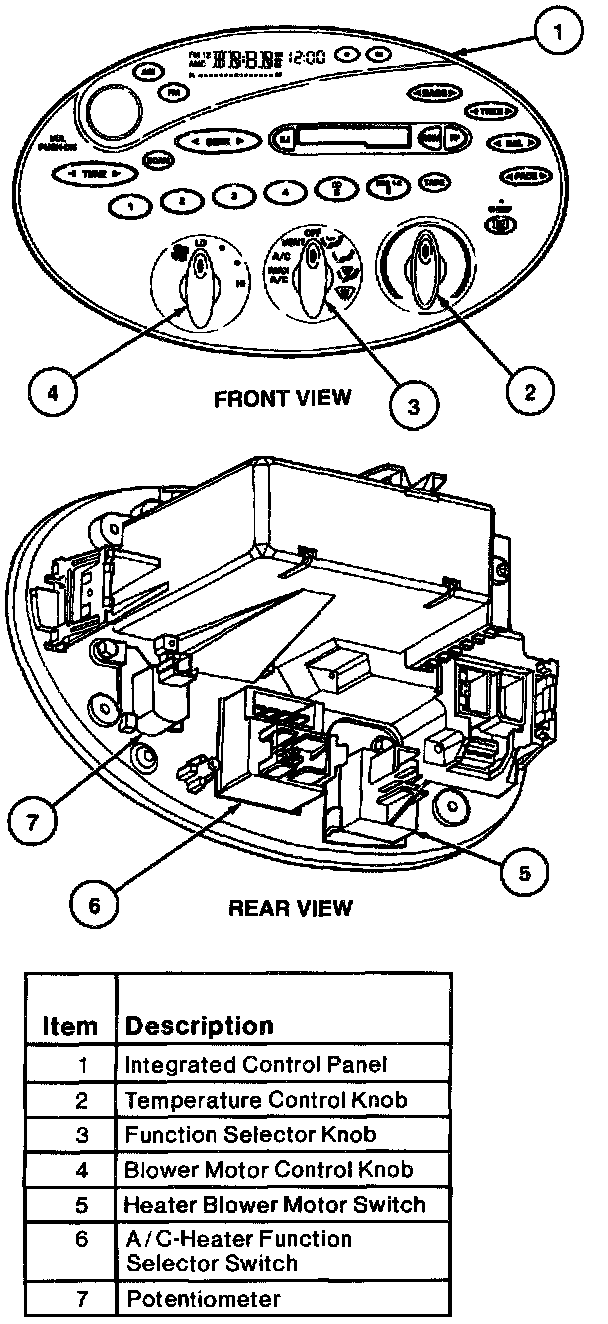

Blower Motor Switch: Service and Repair






REMOVAL
1. Remove climate control assembly.
2. Remove knob.
3. Remove retaining screw.
4. Remove heater blower motor switch.

INSTALLATION
1. Follow removal procedure in reverse order.
