Control Module HVAC: Locations

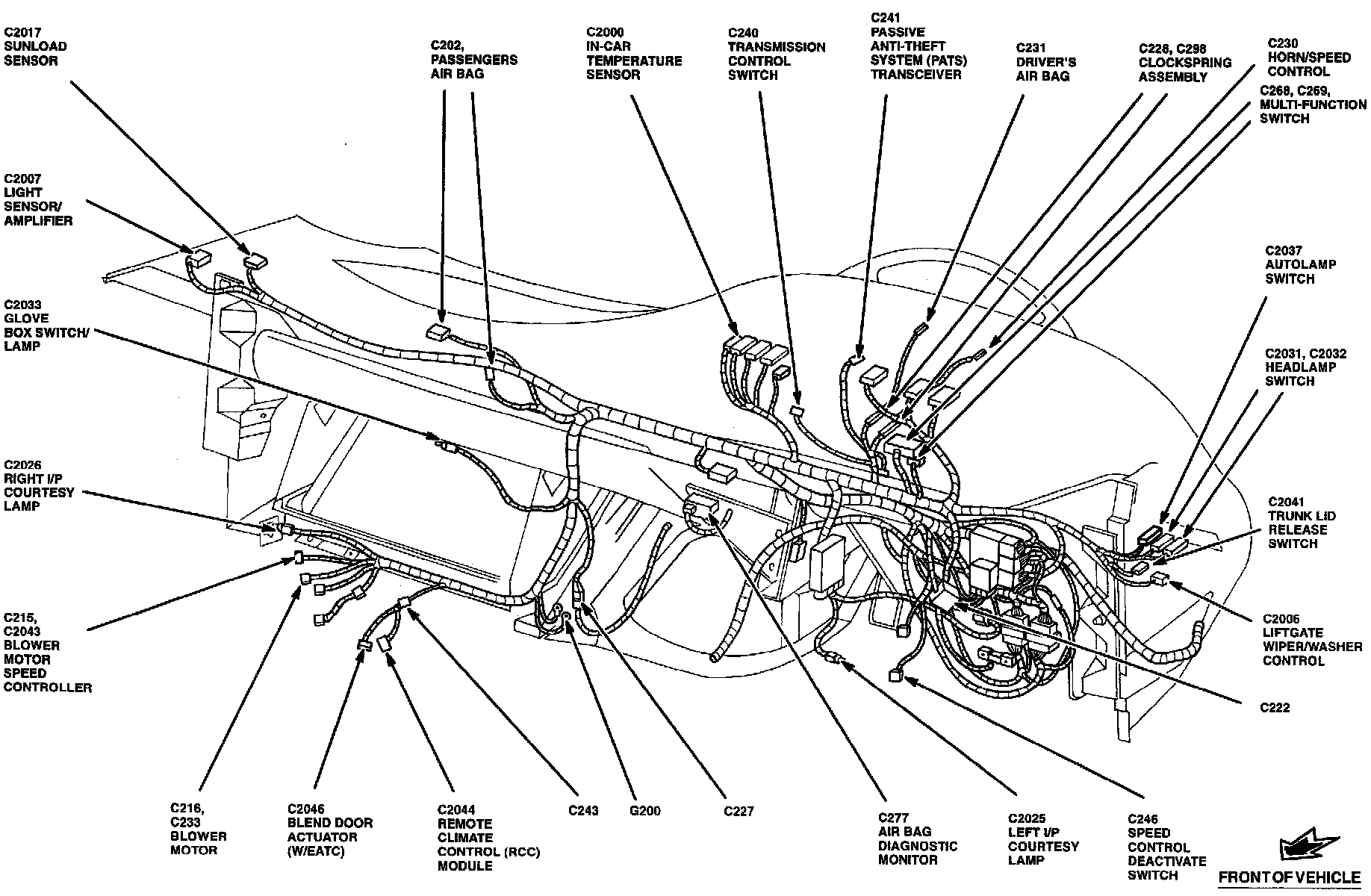

Behind Instrument Panel View:

The Remote Climate Control Module is located behind right side of the instrument panel, behind glove box.
