Air Injection Pump: Description and Operation

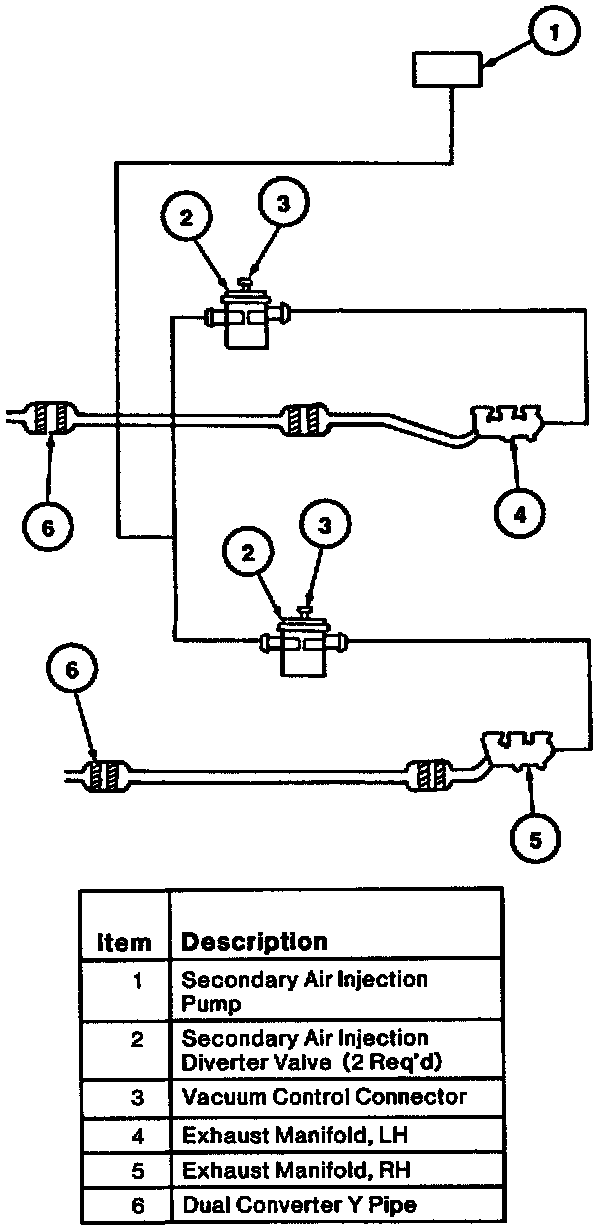

The secondary air injection pump (AIR pump) is:
- an electric air pump, which supplies pressurized air to the engine to aid in the reduction of emissions during the first 20 to 120 seconds of engine operation.
- controlled by the Powertrain Control Module (PCM).
- remote-mounted and incorporates a non-serviceable filter and splash shield.
