Sable V6-183 3.0L VIN U FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
HX - Evaporative Emission (EVAP) Monitor and System
>>
Pinpoint Test Schematics
Pinpoint Test Schematics

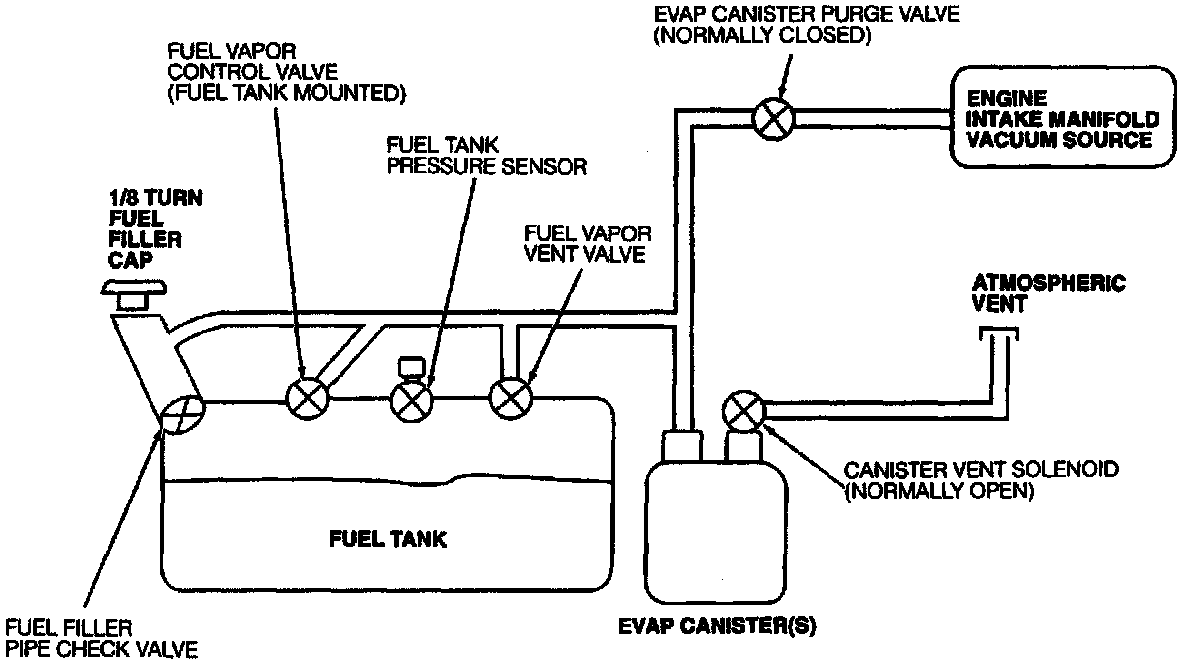

System Schematic:
Canister Purge Valve Harness Connector:
Canister Vent Solenoid Harness Connector:
Fuel Tank Pressure Sensor Harness Connector:
Fuel Pump Module Connectors:
