Home >> Mercury >> 1998 >> Sable V6-183 3.0L VIN U FI >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Component Tests and General Diagnostics >> With Manual Headlamps >> Pinpoint Tests >> AD Low Beams Inoperative

AD Low Beams Inoperative

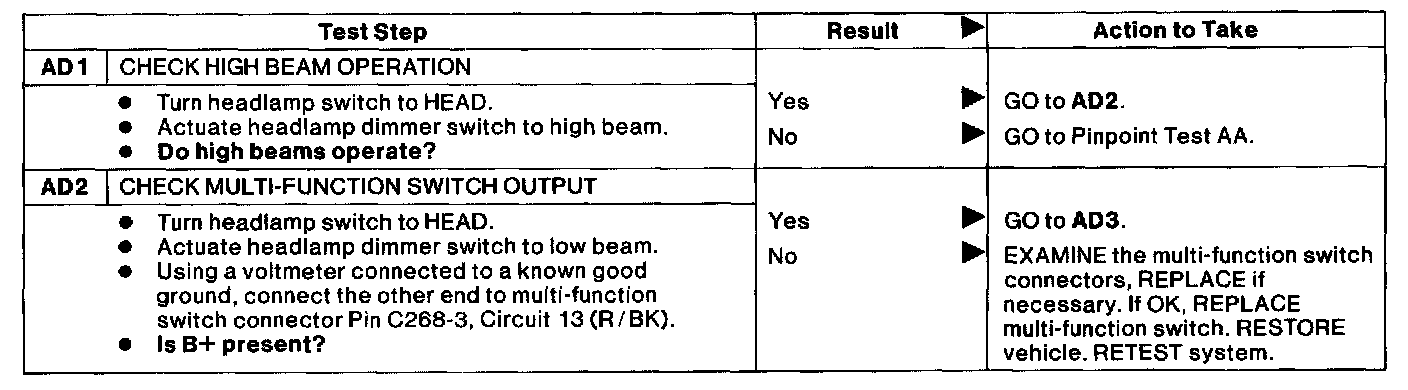

AD1-AD2:

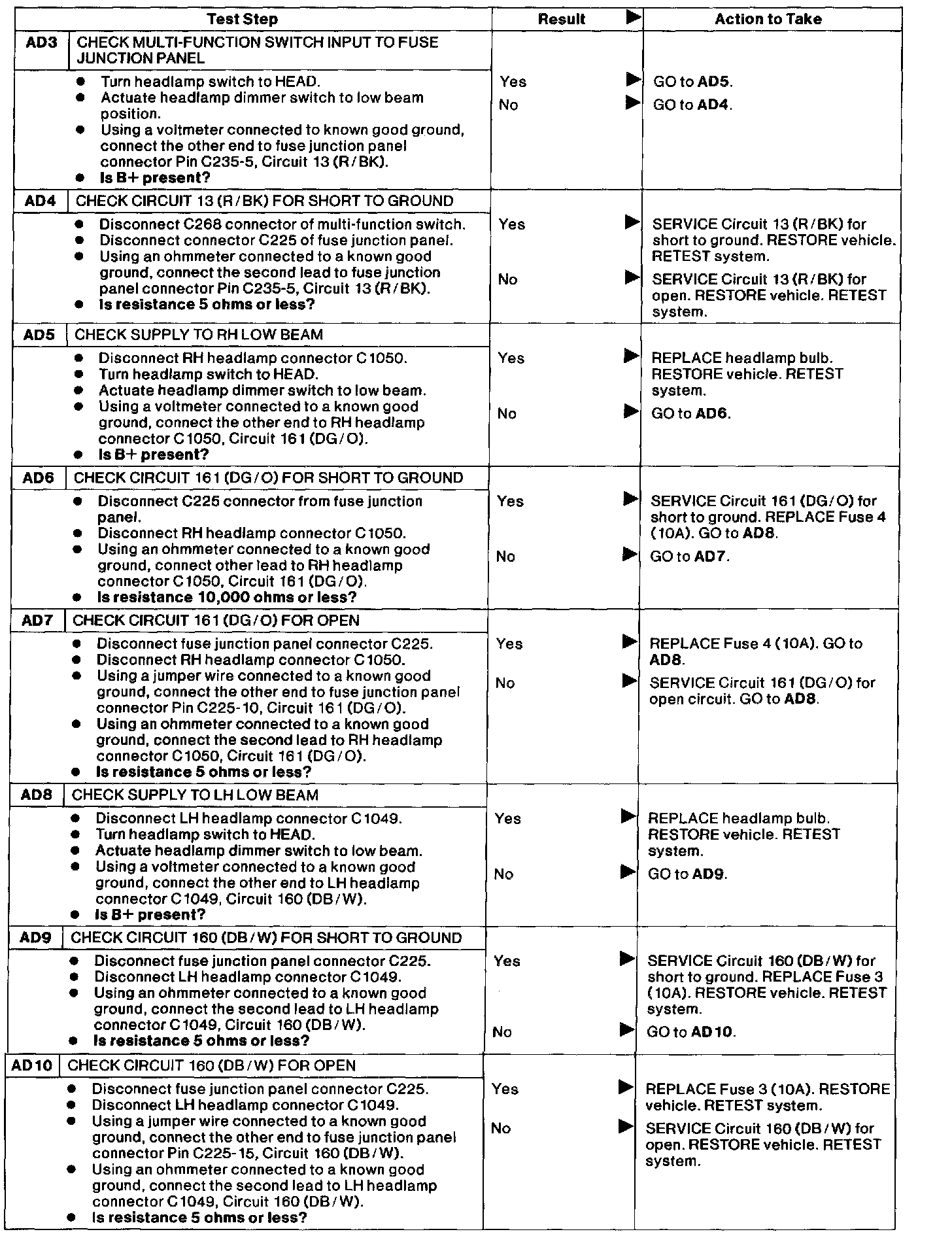

AD3-AD10:
