Warning/Indicator Bulb

REMOVAL

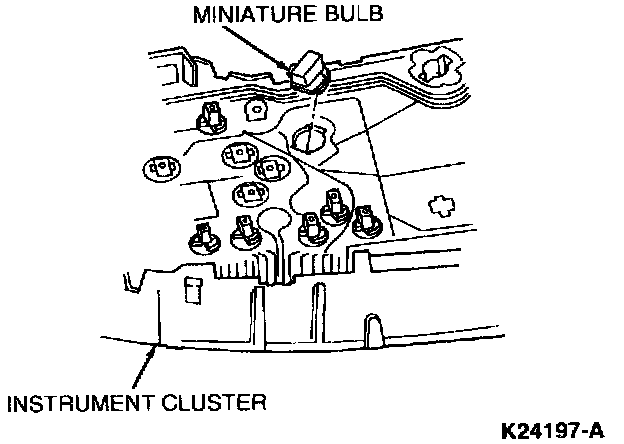

NOTE: All indicators/warning bulbs are removed and installed the same way.

1. Remove instrument cluster.
2. Turn miniature bulb socket 1/4 turn counterclockwise to align tabs with slots in instrument cluster and pull miniature bulb out of instrument cluster (LED equipped for THEFT indicator).

INSTALLATION
1. Align tabs on miniature bulb with slots in instrument cluster, and turn miniature bulb socket 1/4 turn clockwise until miniature bulb stops turning.
