Removal

1. Disconnect battery ground cable.
2. Drain engine cooling system.
3. Loosen four water pump pulley bolts while drive belt is in place.
4. Remove drive belt.
5. Remove drive belt tensioner.
6. Remove lower radiator hose and heater water hose.
7. Remove crankshaft pulley and damper.
8. Disconnect engine control sensor wiring from Crankshaft Position Sensor (CKP sensor) and locating stud bolt.
9. Drain and remove oil pan. Discard removed oil pan gasket.

NOTE: Do not cut and seal oil pan gasket. Always replace with new oil pan gasket.

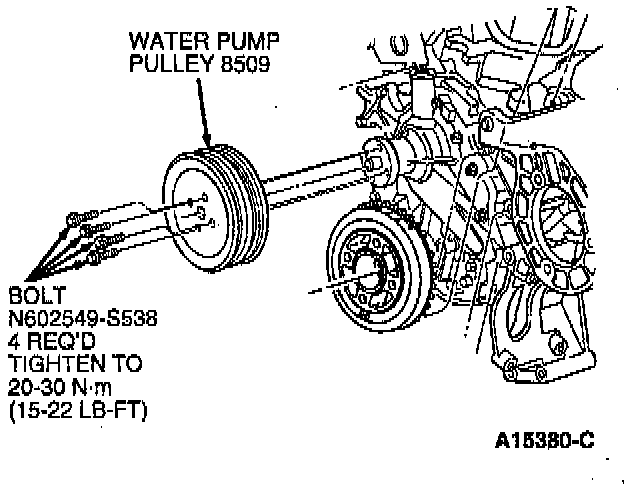

10. Remove water pump pulley retaining bolts and water pump pulley.

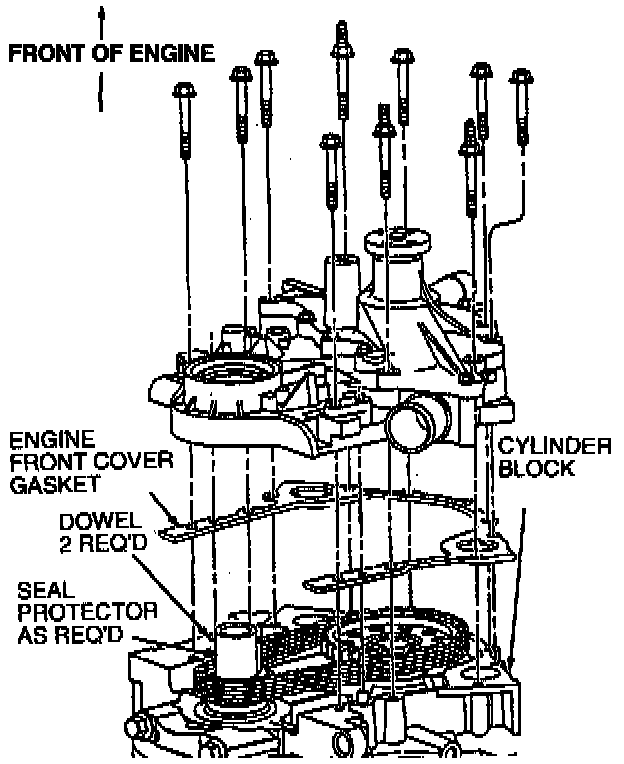

11. Remove retaining bolts from engine front cover to cylinder block.





12. Carefully remove engine front cover and water pump as an assembly from cylinder block.

NOTE: The engine front cover and water pump may be removed as an assembly by not removing bolt numbers 11 through 15 as shown.
