Valve, Roller - Tappet Wear
Valve, Roller - Tappet Wear

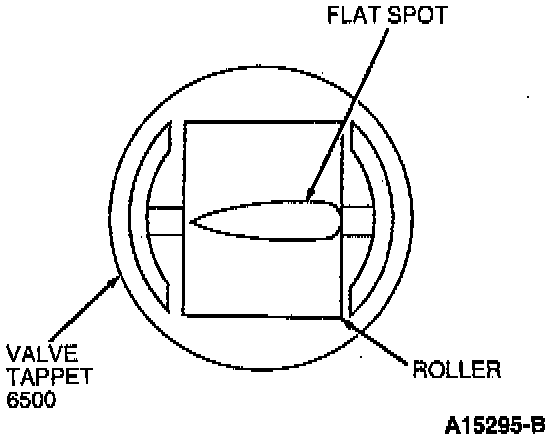

Inspect roller valve tappet for flat spots or scoring. If flat spot is found, check
camshaft
lobes for proper height or wear. Replace as required.
