Home >> Mercury >> 1998 >> Sable V6-183 3.0L VIN U FI >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine

Engine

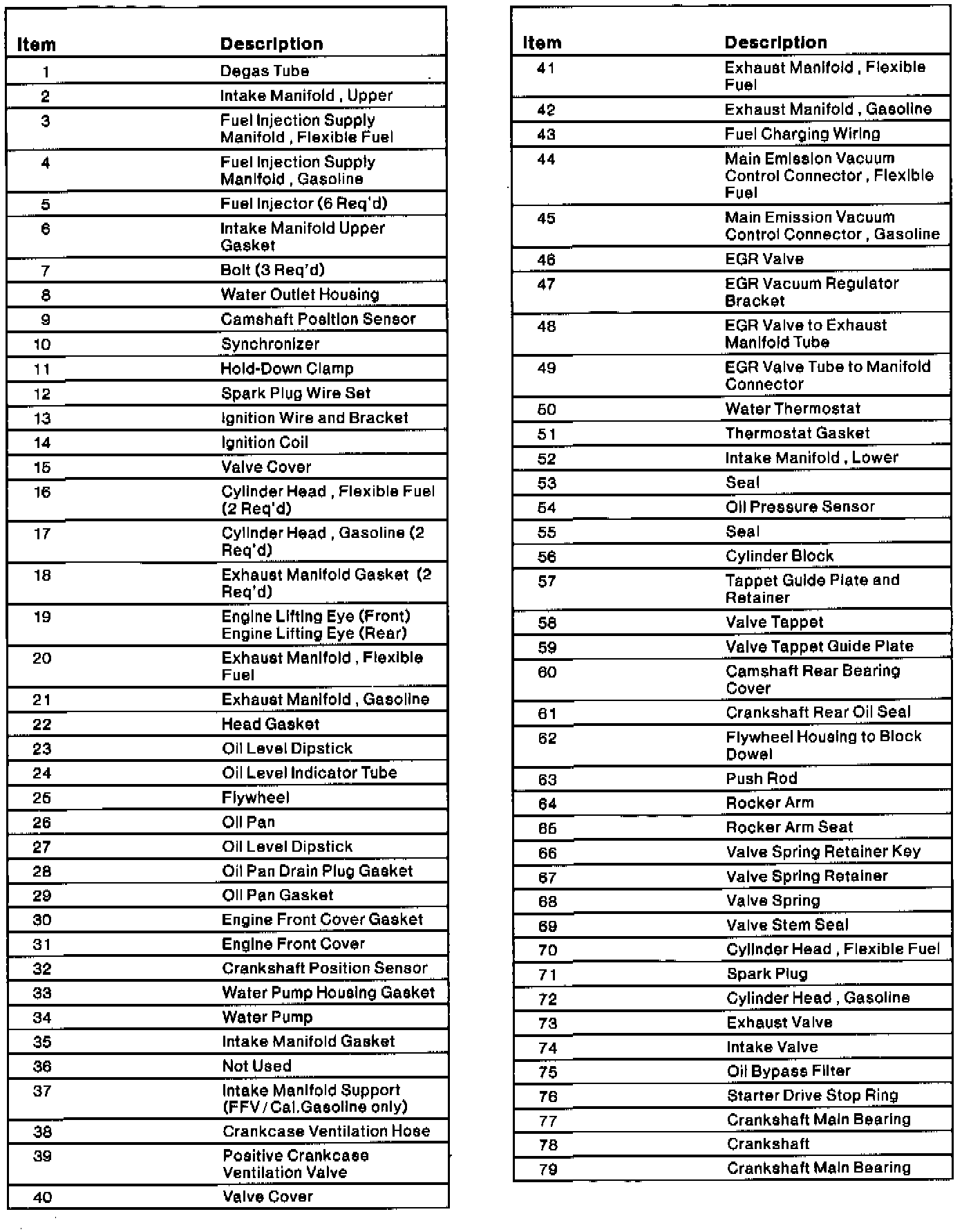

Part 1 Of 4:

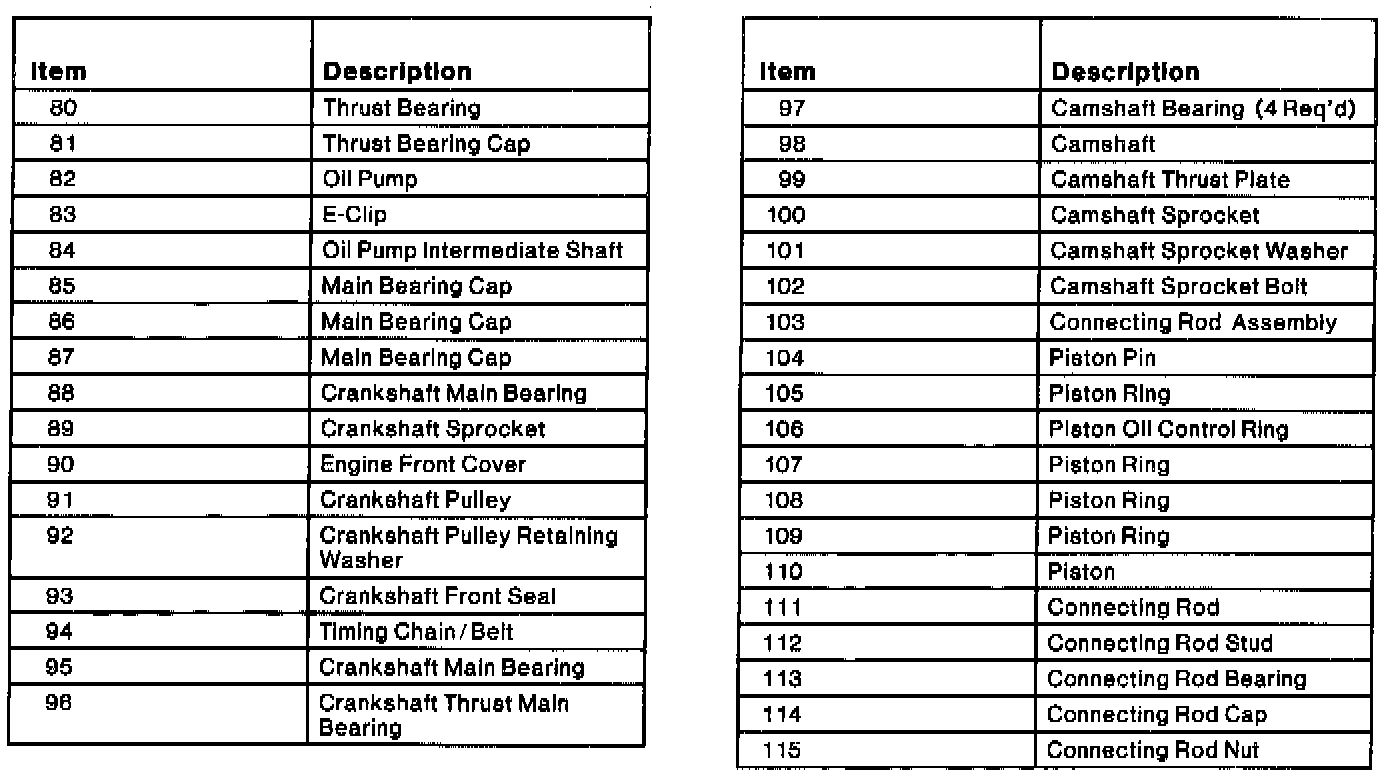

Part 2 Of 4:

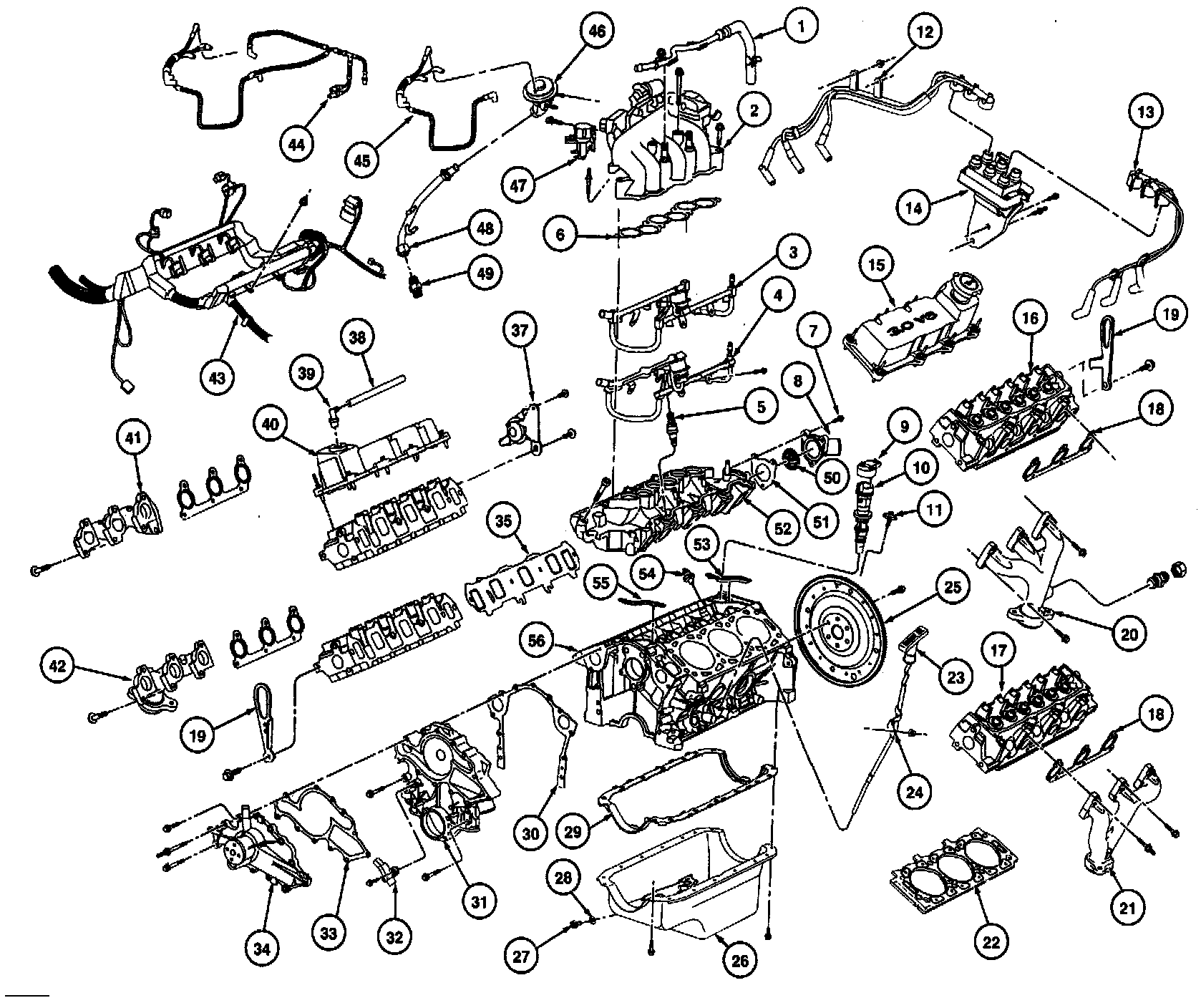

Part 3 Of 4:

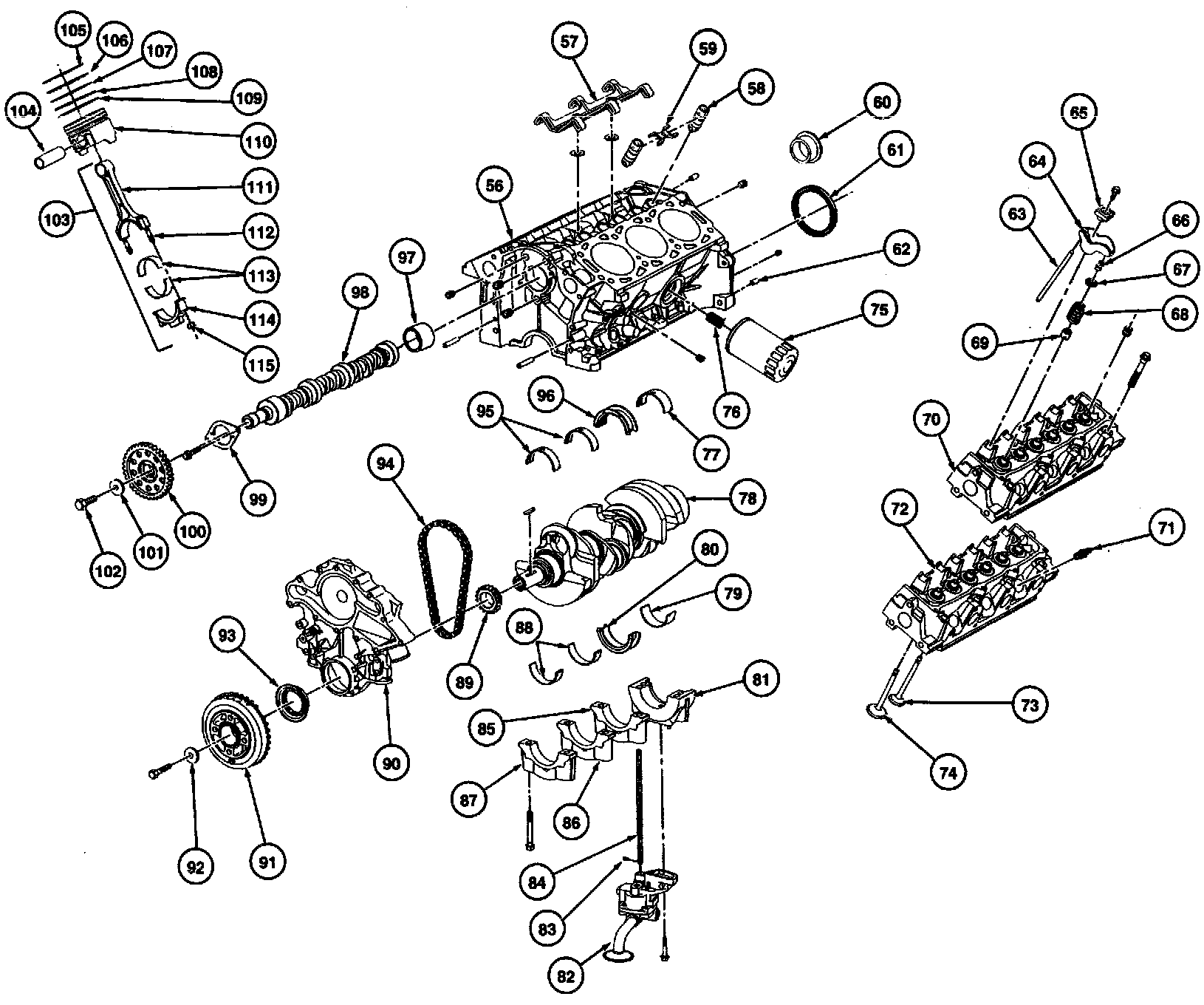

Part 4 Of 4:
