Console: Description and Operation

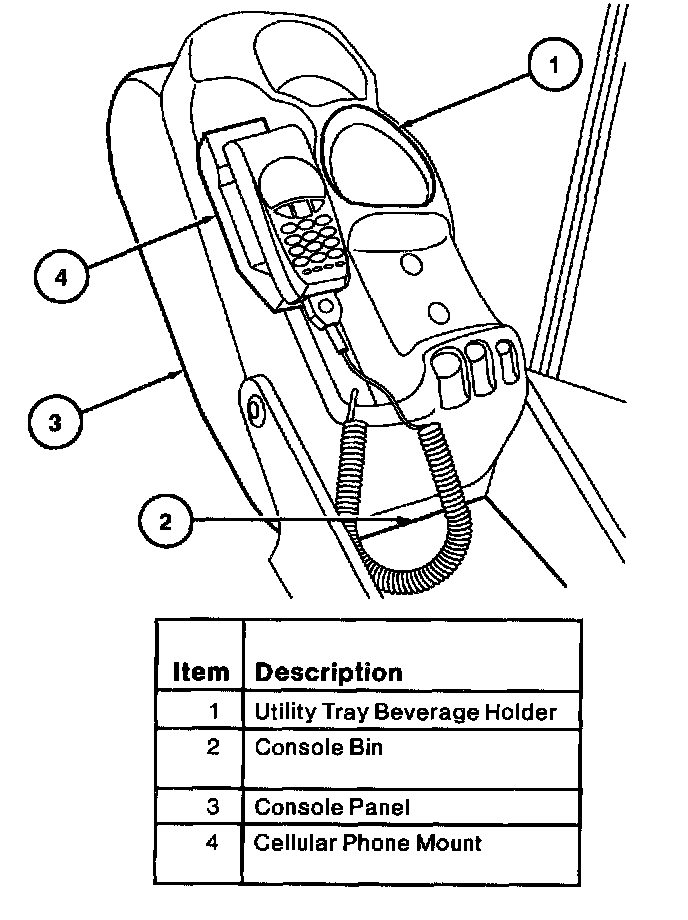

The console panel is located between the seats and consists of the following components:
^ console bin
^ cellular phone mount/tray
^ utility tray beverage holder
^ front ash receptacle (optional)
^ rear ash receptacle
^ rear A/C register
^ armrest
