Home >> Mercury >> 1998 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Reference Charts >> Clutch/Band Application Chart No. 601

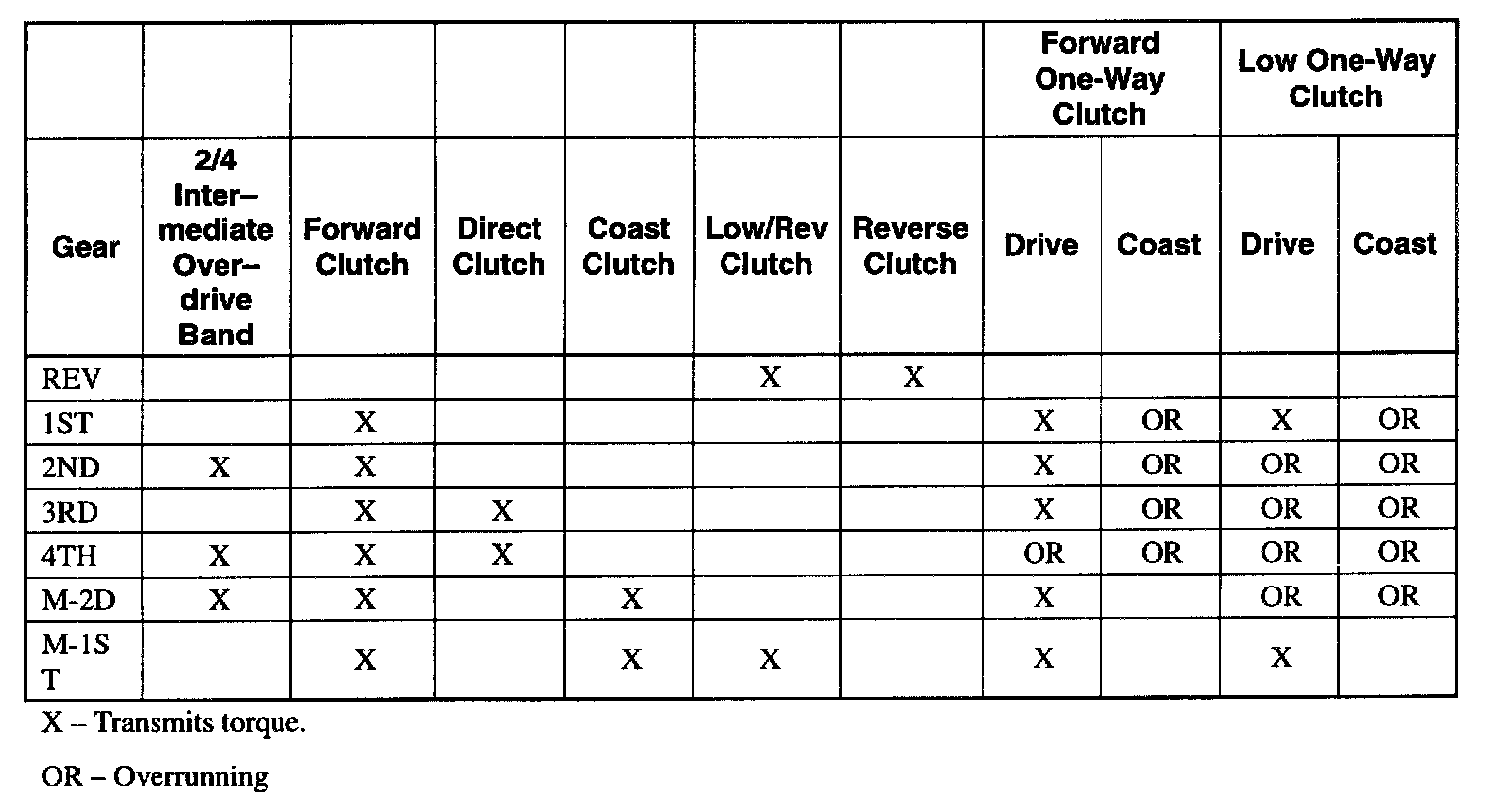

Clutch/Band Application Chart No. 601

Band/Clutch Application Chart #601:
