Alternator: Service and Repair

REMOVAL







1. Disconnect the battery ground cable.
2. Remove the accessory drive belt.
3. Remove the RH halfshaft.
4. Remove the exhaust system Y-pipe.







5. Remove the splash shield.
1. Remove the bolts.
2. Remove the splash shield.







6. Disconnect the generator cable.
1. Remove the nut and disconnect the cable.
2. Disconnect the electrical connector.

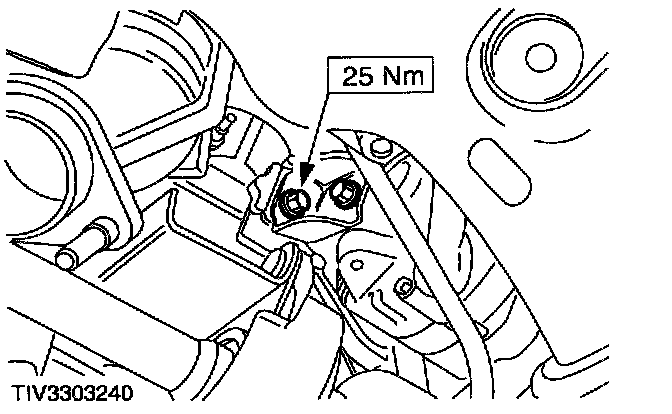

7. Remove the generator rear support bracket bolt.

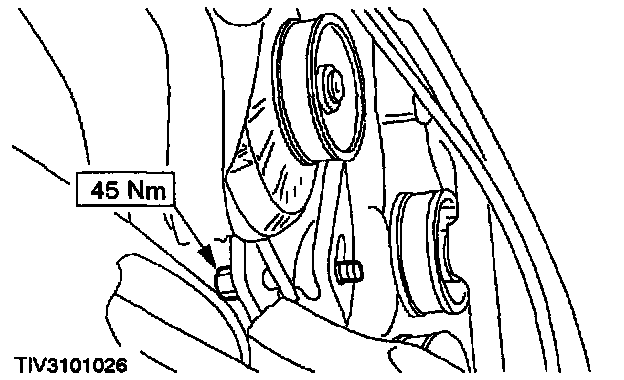

8. Remove the upper generator mounting bolt.

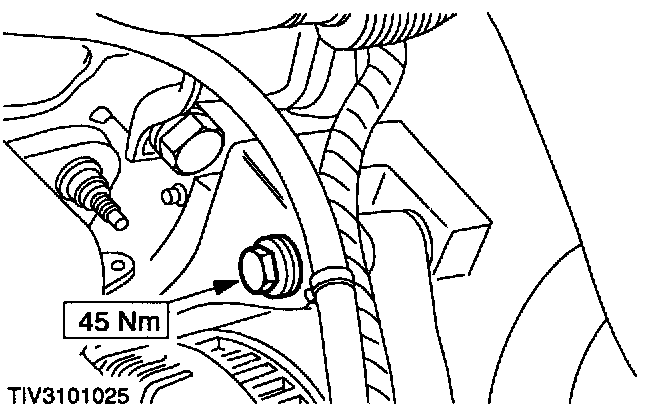

9. Remove the lower generator mounting bolt.

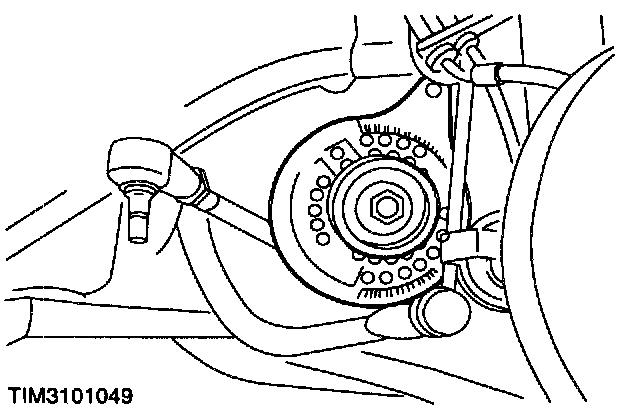

10. Remove the generator through the wheel housing.

















INSTALLATION
1. To install, reverse the removal procedure.
