Electrical Diagrams

Diagram 700-02-00-3:

A/c Wide Open Throttle Relay
Fuel Pump Relay
Fuse F4
Fuse F9
Fuse F11
Fuse F13
Fuse F14
PCM Power Relay
Powertrain Control Module

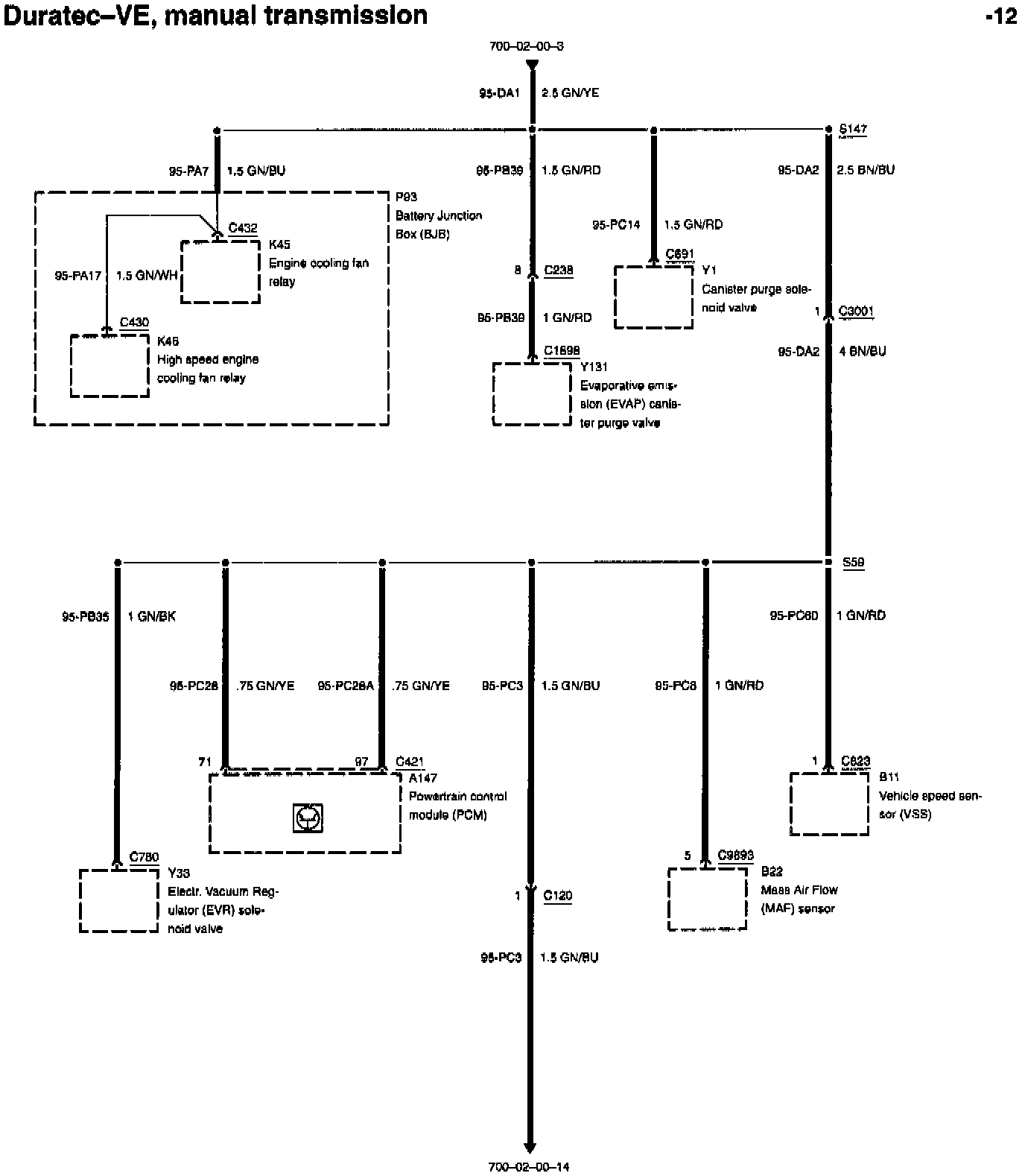

Diagram 700-02-00-12 (With Manual Transmission):

Battery Junction Box
Canister Purge Solenoid Valve
Electric Vacuum Regulator Solenoid Valve
Engine Cooling Fan Relay
Evaporative Emission Canister Purge Valve
High Speed Engine Cooling Fan Relay
Mass Air Flow Sensor
Powertrain Control Module
Vehicle Speed Sensor

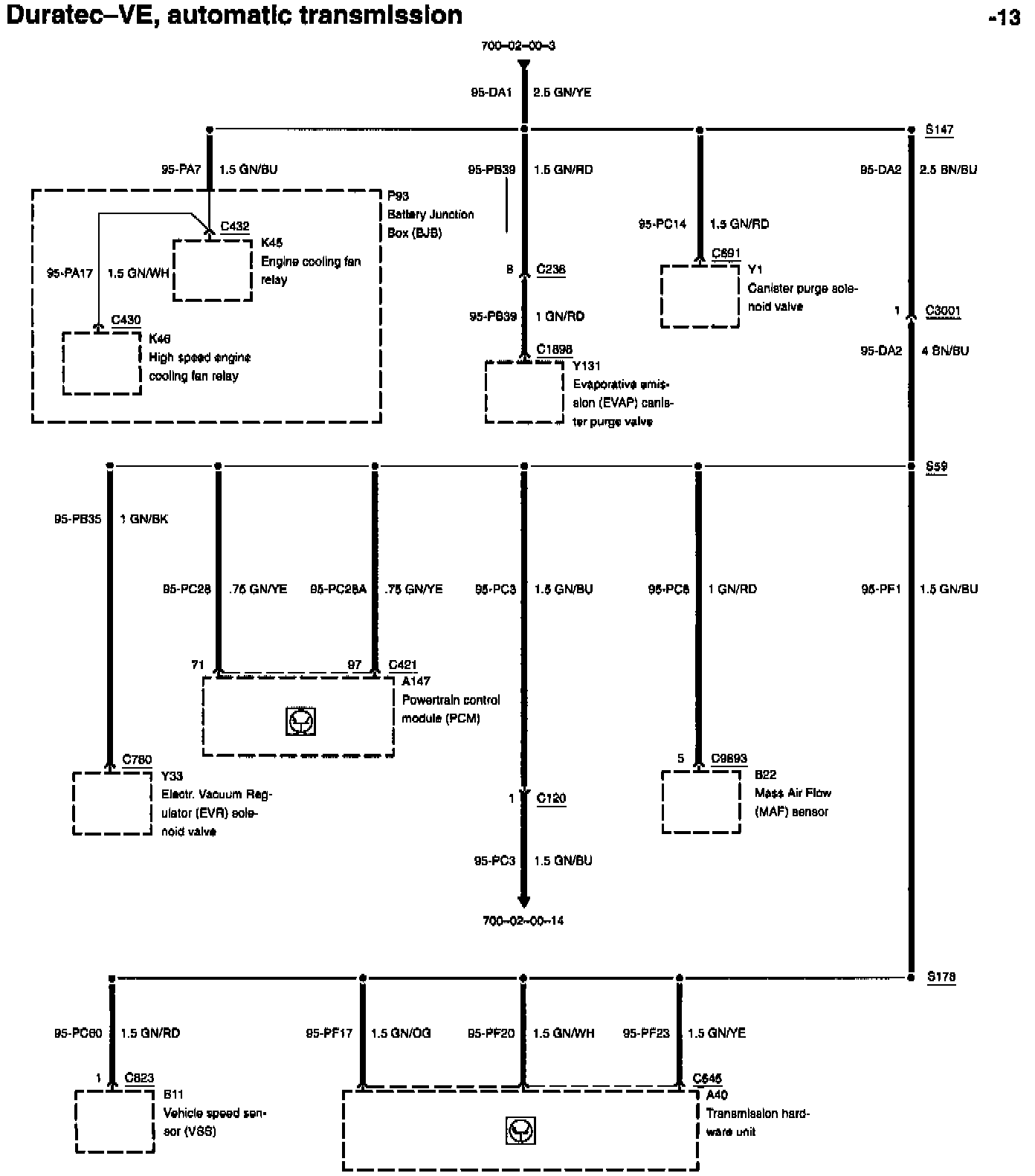

Diagram 700-02-00-13 (With Automatic Transmission):

Battery Junction Box
Canister Purge Solenoid Valve
Electric Vacuum Regulator Solenoid Valve
Engine Cooling Fan Relay
Evaporative Emission Canister Purge Valve
High Speed Engine Cooling Fan Relay
Mass Air Flow Sensor
Powertrain Control Module
Transmission Hardware Unit
Vehicle Speed Sensor

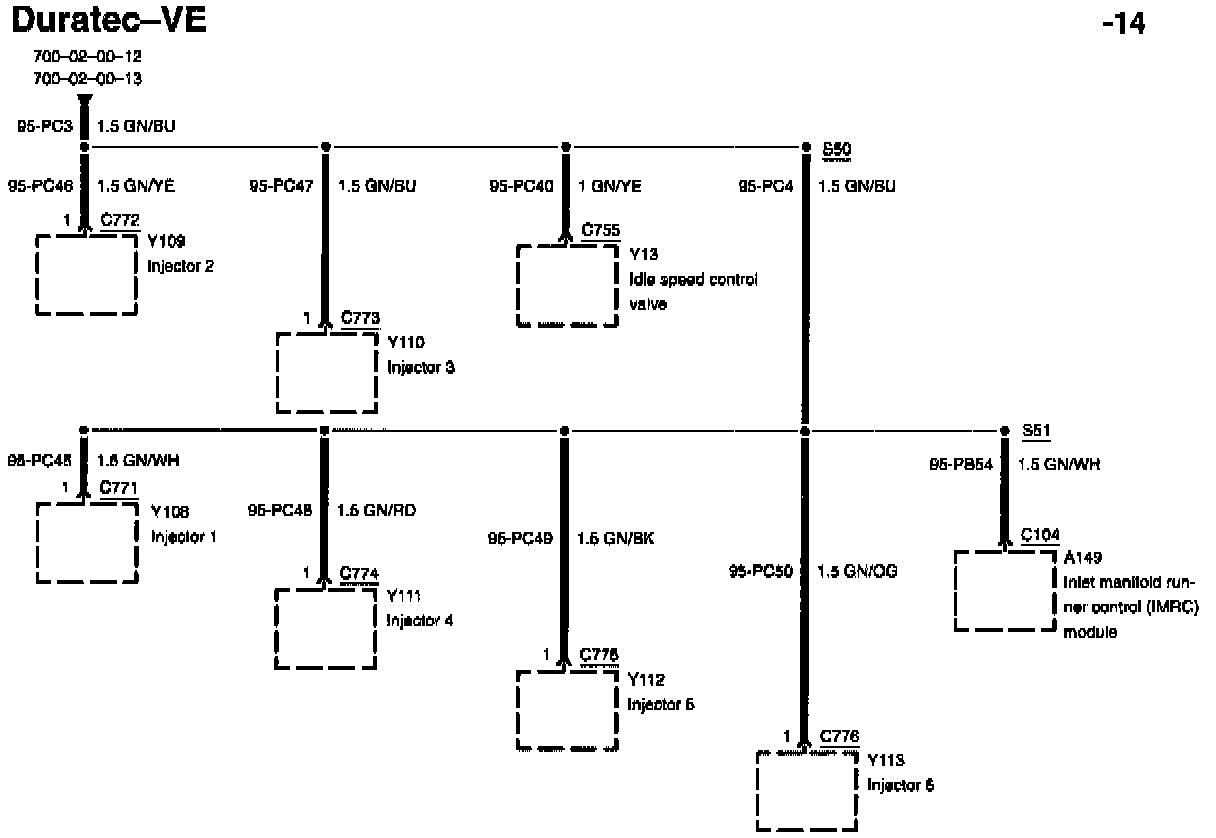

Diagram 700-02-00-14:

Fuel Injectors
Idle Speed Control Valve
Inlet Manifold Runner Control Module
