Home >> Mercury >> 1998 >> Mystique V6-153 2.5L DOHC VIN L SFI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Locations

Computers and Control Systems: Locations

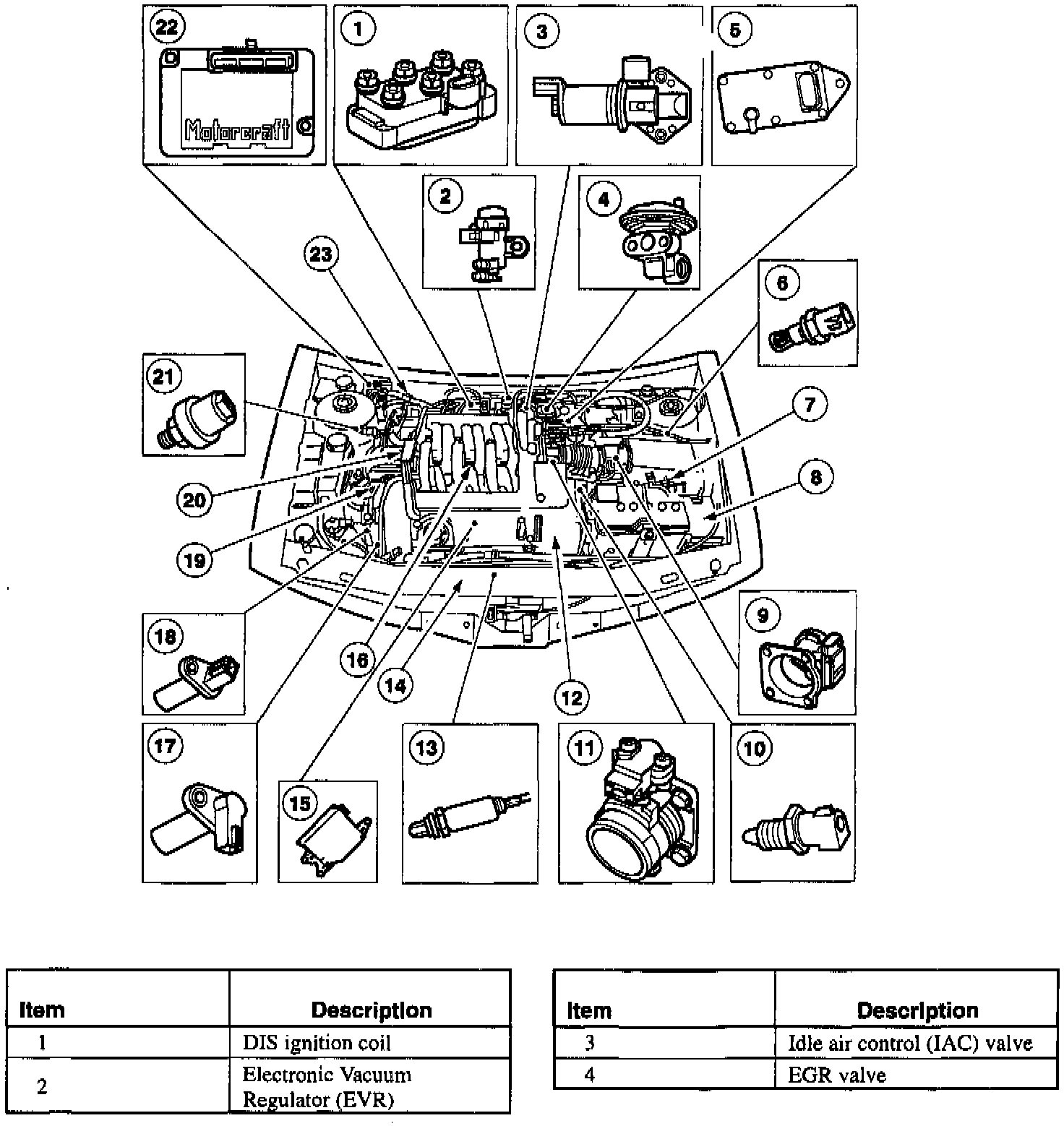

Engine Management - Sensors And Actors, Part 1 Of 2:

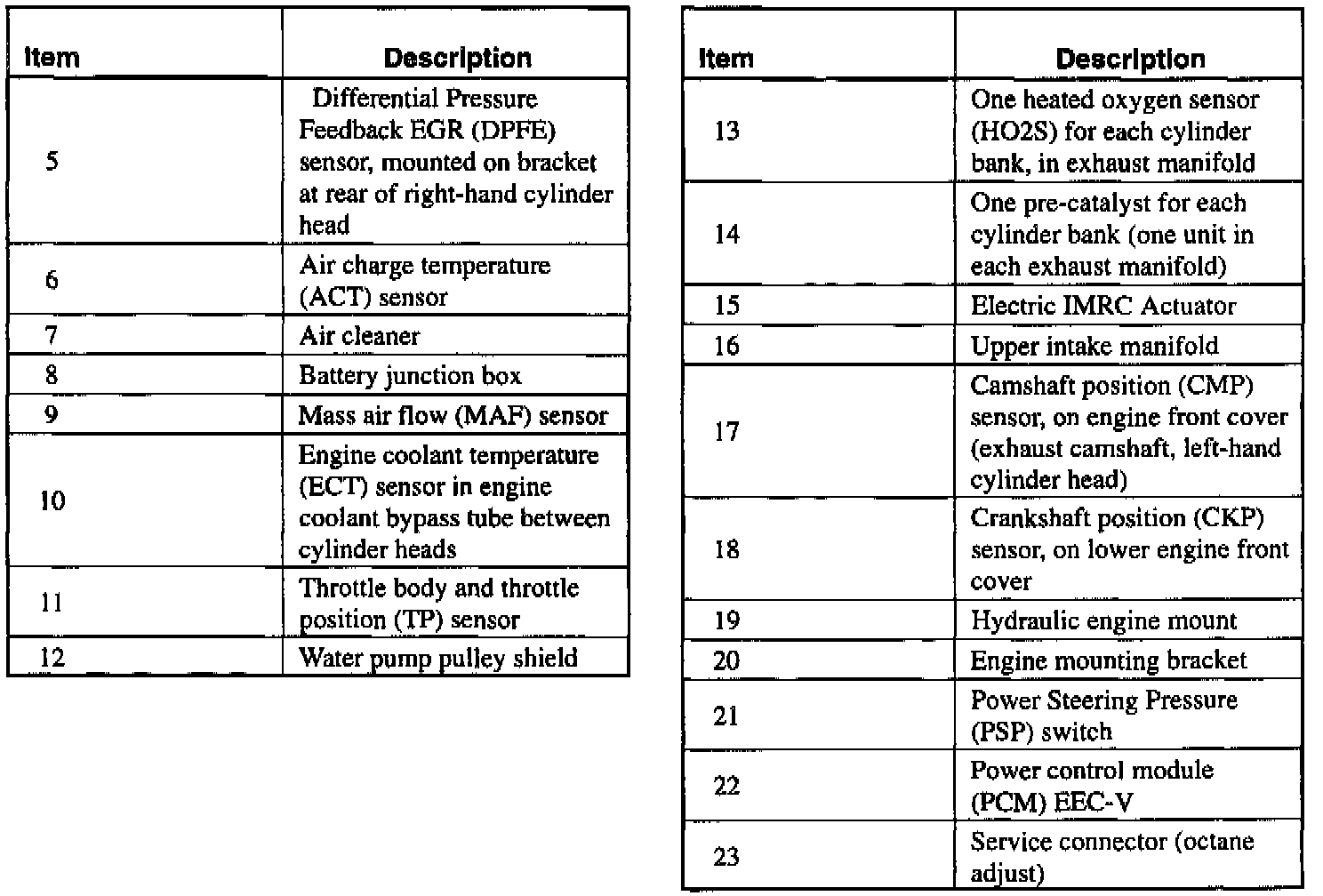

Engine Management - Sensors And Actors, Part 2 Of 2:
