Left Side

REMOVAL
1. Remove the LH heated oxygen sensor (HO2S).
2. Remove the exhaust crossover tube.

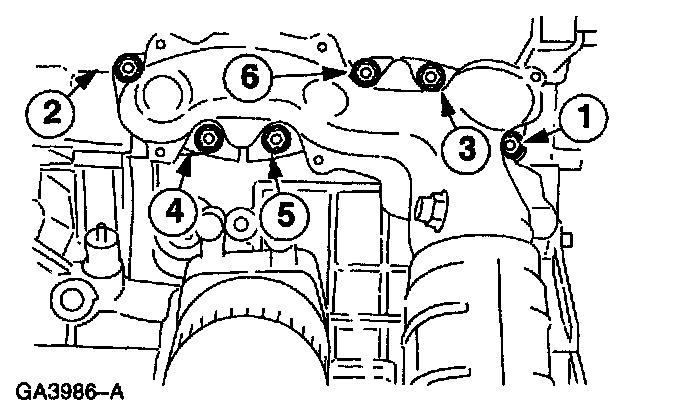

3. Remove the nuts and remove the LH exhaust manifold and gasket in the sequence shown.
- Discard the gasket.

INSTALLATION





1. To install, reverse the removal procedure.

NOTE:
- A new exhaust manifold gasket must be used when installing the manifold.
- Torque in the sequence shown.
