Disassembly and Assembly

DISASSEMBLY

CAUTION: If the cylinder head valve components are to be reused, mark position of the valve components to make sure they are reassembled in the same position.

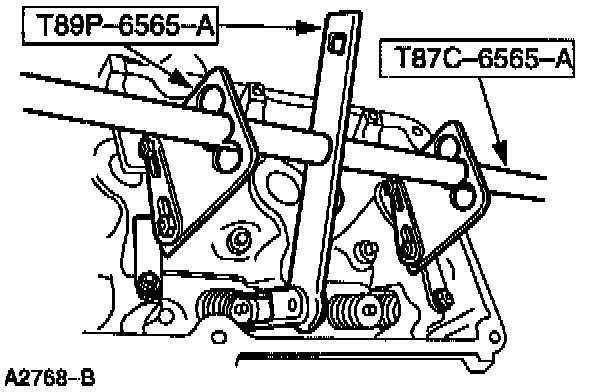

1. Use a Valve Spring Compressor Set and a Valve Spring Compressor Adaptor to compress the valve springs.

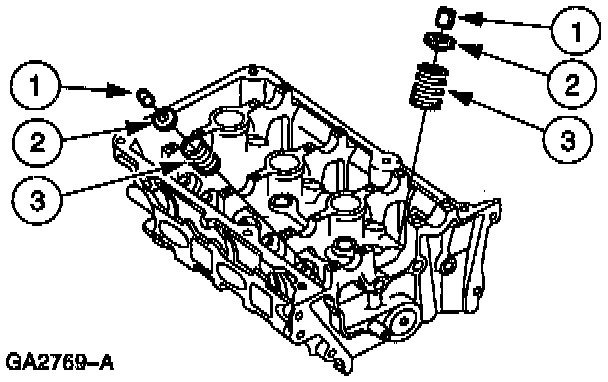

2. Remove the valve springs.
1 Remove the valve spring retainer keys.
2 Remove the valve spring retainer.
3 Remove the valve spring.






3. Remove the valves from the cylinder heads.
1 Remove the intake valves.
2 Remove the exhaust valves.

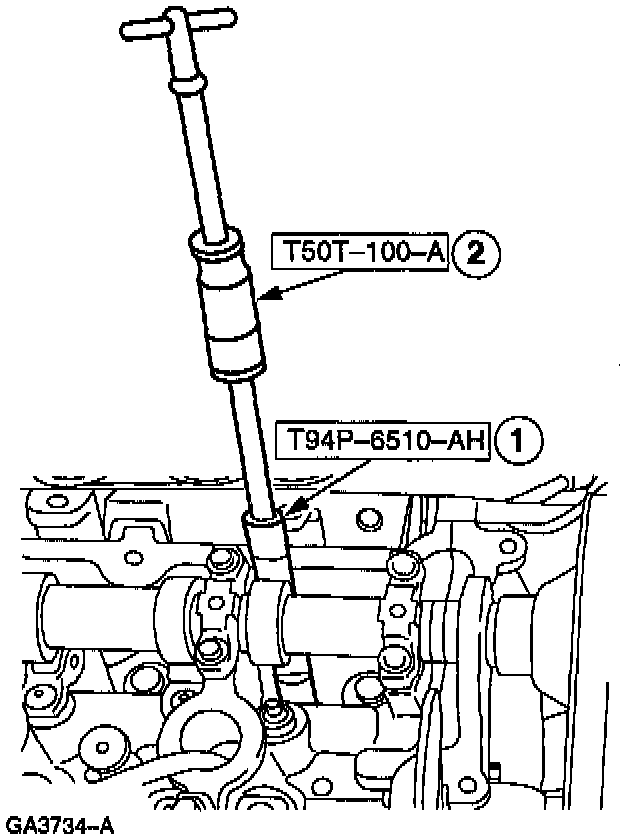

4. Remove the valve stem seals.
1 Install the valve stem seal remover.
2 Install the impact slide hammer and remove the valve seal.

5. Inspect the cylinder heads and related components.

NOTE: Valve guides should never be removed unless they are to be serviced.






6. Use a Valve Guide Remover/Replacer and remove the valve guides, if necessary.
- Drive the valve guides out from the bottom of the cylinder head.

NOTE: Never remove pipe plugs or alignment dowels unless they are to be serviced.

7. Remove the pipe plugs and alignment dowels as necessary to clean the cylinder heads.

ASSEMBLY

WARNING: EYE PROTECTION IS REQUIRED DURING USE OF COMPRESSED AIR. FAILURE TO WEAR EYE PROTECTION COULD RESULT IN PERSONAL INJURY.

CAUTION: The cylinder head surface finish is measured in microns. For proper head gasket sealing, avoid any contact of finish with metallic objects.

1. Clean gasket material, dirt and debris from cylinder heads. Wash with a suitable soap and water solution and dry completely using compressed air if pipe plugs have been removed.
- If gasket material remains on the cylinder head after cleaning, use a plastic tipped scraper to remove remaining material.

2. Install the pipe plugs and alignment dowels to cylinder heads, if removed.
- Apply pipe sealant to plugs prior to installation. Use Sealer or equivalent meeting Ford specification SM-4G-4644-AA/AB.






3. Use a Valve Guide Remover/Replacer and install the valve guides, if removed.





4. Use a Valve Stem Seal Replacer and install the valve stem seals onto the valve guides.





5. Install the valves into the cylinder heads.
- Lubricate valve stems and guides before assembly. Use API, SO SAE 50 Assembly Fluid or equivalent meeting Ford specification WSE-M2C908-A.

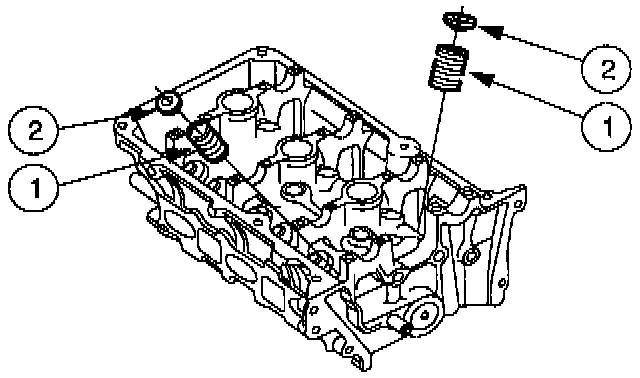

6. Install the valve springs and the valve spring retainers.
1 Install the valve springs.
2 Install the valve spring retainers.






7. Use a Valve Spring Compressor Set and a Valve Spring Compressor
Adaptor and install the valve spring retainer keys.
